1700C Single Zone Alumina Tube Furnace with 3 Channel Gas Mixer, Vacuum Station, and Anti-Corrosive Vacuum Gauge - GSL-1700X-F3LV

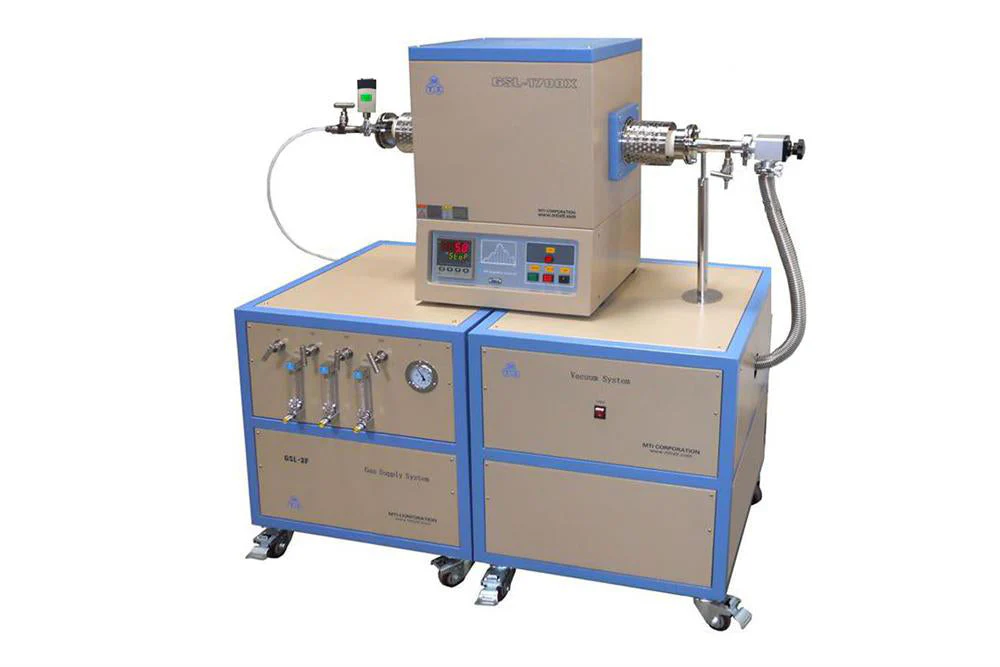

GSL-1700X-F3LV tube furnace is a CE certified  alumina tube furnace with mechanical vacuum pump and three channels gas flowing system, which can heat the samples to 1700°C and achieve vacuum degree up to 5x10^-2 torr and mix 1- 3  type of gases for CVD or diffusion. This furnace system also includes an anti-corrosive Pirani Capacitance Diaphragm Gauge to enable vacuum measurements with aggressive gasses.

SPECIFICATIONS

Tube Furnace	Structure	Double layer steel casing with air cooling. Two cooling fans inside to keep the temperature of the outside case < 55°C. High purity fibrous alumina insulation for Maximum energy saving.
	Power Consumption	5kW Max.
	Input Voltage	AC 208~240V, Single Phase, 50/60Hz
	Max. Heating Temp.	1700°C
	Max. Heating Rate	5°C/min
	Max. Cooling Rate	5°C/min
	Heating Zone Length	455mm (18")
	Constant Temp. Zone	150(+/-1C)
	Temperature Accuracy	+/-1°C
	Temperature Controller	PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Please click here to learn why SCR is more accurate than SSC (Solid state relay). Built in PID Auto-Tune function with overheating & broken thermocouple protection. Over temperature protection and alarm allows for operation without attendant(s). +/- 1 ºC temperature accuracy. RS485 Communications Port. Advanced Temperature Control (Optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.  You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
	Heating Elements	1800 grade MoSi2   ( 8 pcs )
	Tube Materials and Size	99.8% high purity Al2O3 ceramic tube ID: 73mm x  OD: 80 mm   x 1000 mm length.
	Digital Vacuum Gauge	Corrosion-proof Capacitance Diaphragm Gauge with ceramic coated sensor head specially designed for vacuum measurements with the presence of corrosive gasses. Gauge is installed on the vacuum flange (right side) of tube furnace and provides a wide measure range (10^-5 ~ 1000 torr). Optional: click the pic below right to order Constant temperature control module.
	Vacuum Sealing	Two stainless steel flanges with a digital vacuum gauge and valves are included. Vacuum pressure can reach 5x10-2 torr via the mechanical pump. The leaking rate is 6 mtorr/min in max. and 2 mtorr/min when stable, click the picture. below to get details chart and data measured by CE certificated digital vacuum meter:             (For a whole 24 hours curve display, the time segment through 08:00:00~21:10:00 in X-axis is passed over in the chart, therefore, steep variety in there)
Vacuum Pump and fittings	Vacuum Pump	Heavy Duty Rotary Vane Vacuum Pump (7.8 CFM -240 L/m) with Two Stage Exhaust System installed inside the vacuum station. vacuum pressure can reach up to 10^-2 Torr.  The max. vacuum pressure in the alumina tube furnace is 5x10^-2 torr by using this vacuum mechanical pump.  Option: For precise control of the vacuum pressure, we recommend you choose our turn-key solution EQ-VPC-MV. This is a vacuum pressure regulating system with motorized valve and gauge. It controls pressure range from 10^-6 torr ~ 760 torrs.
	Fittings	The standard vacuum fittings include: A pair of stainless steel vacuum flange with KF-25 pump connector, two needle valves and one 1/4" Swagelok tube connector. A 1000mm long KF-25 stainless steel vacuum bellows Four KF-25 quick clamps
Gas Flow Meter	Three gas flowmeters ( 4% accuracy FS) are installed inside mobile case provide  a monitor to gas flowing rates. 1) Compact direct read flow meter, 10-100 cc/min. 2) Compact direct read flow meter, 16-160 cc/min. 3) Compact direct read flow meter, 25-250 cc/min.  One pressure meter is installed inside mobile cart for monitoring the pressure of the mixed gas. Four stainless steel needle valve are installed in the front panel to control the gas route independently. Front Panel Back Panel Gas Routes
Oxygen Monitoring	An Oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture below to learn more:
Shipping Info	Product Dimensions	80 mm O.D Tube Furnace:    550 x 500 x 700mm L x W x H  Gas Mix Station: 600 x 600 x 700mm Vacuum station: 600 x 600 x 700mm
	New weight	450 lb (in total)
	Shipping weight and Dimensions	Three pallets: 220 lbs with 48x40x42", 200 lbs eith 39x31x40: and 180lbs with 39x31x40" dimension.
Warranty	One year limited warranty (Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty, please order the replacement at related products below.)
Laptop, software & WiFi Control (Optional)	Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters operating range. Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note:  The software is only compatible with MTI’s Yudian Temperature Controller
Compliance	CE Certified UL / MET / CSA Certification is available upon request, additional charges will apply Temperature controller is MET and CE Certified Transformer is UL Certified
