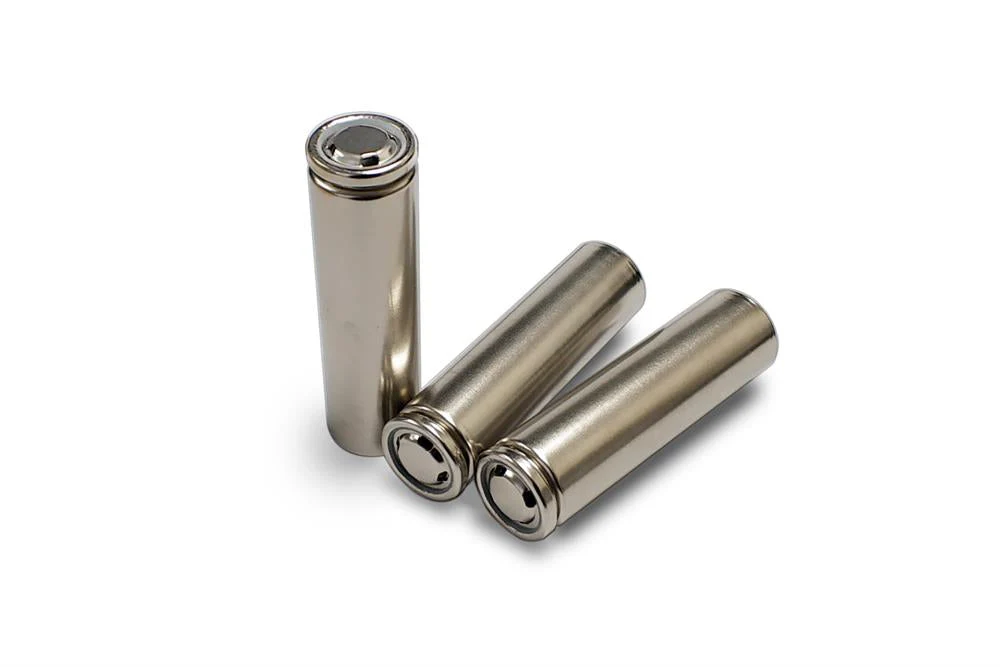

18650 Pre-Clamped Empty Cylinder Cell Case with Anti-Explosive Cap - 100 Pcs/package - Lib-18650CR
HomeStore

18650 Pre-Clamped Empty Cylinder Cell Case with Anti-Explosive Cap - 100 Pcs/package - Lib-18650CR

18650 Pre-Clamped Empty Cylinder Cell Case with Anti-Explosive Cap - 100 Pcs/package - Lib-18650CR

$139.30

Original: $398.00

-65%
18650 Pre-Clamped Empty Cylinder Cell Case with Anti-Explosive Cap - 100 Pcs/package - Lib-18650CR—

$398.00

$139.30

The Story

Note: These empty cylindrical cells are pre-clamped with the cap only and WITHOUT Cathode and Anode, they can NOT be used or charged as regular cylindrical batteries.

Specifications


Cap
  • Cap with Built-in PTC Thermistor for overcurrent protection
  • Cut-off current is about 7A
Dimensions (Dia x Height)
  • Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
  • Top Cap: 17.5mm(D) x 4.05mm(H)
  • Top Insulator: 12.5mm(D) x 0.19mm(H)
  • Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
  • Case and cap are made of Nickel plated A3 steel
  • Seal O-ring and spacer are made of nylon
  • No insulating gasket
Weight
  • 9.50 g/pcs
Note
  • Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
  • 18650 case's grooving and sealing machine is available upon request

Application
  • The cylinder cells are grooved it by MSK-500 and then crimped by MSK-510

    Grooved by MSK-500

    Sealed by MSK-510

    Demo Video How to make cylindrical cell

Options
  • Safety protection: Positive Temperature Coefficient (PTC) Thermistor is built into the cap
  • PTC Thermistor will break the current when heated to 120ºC
