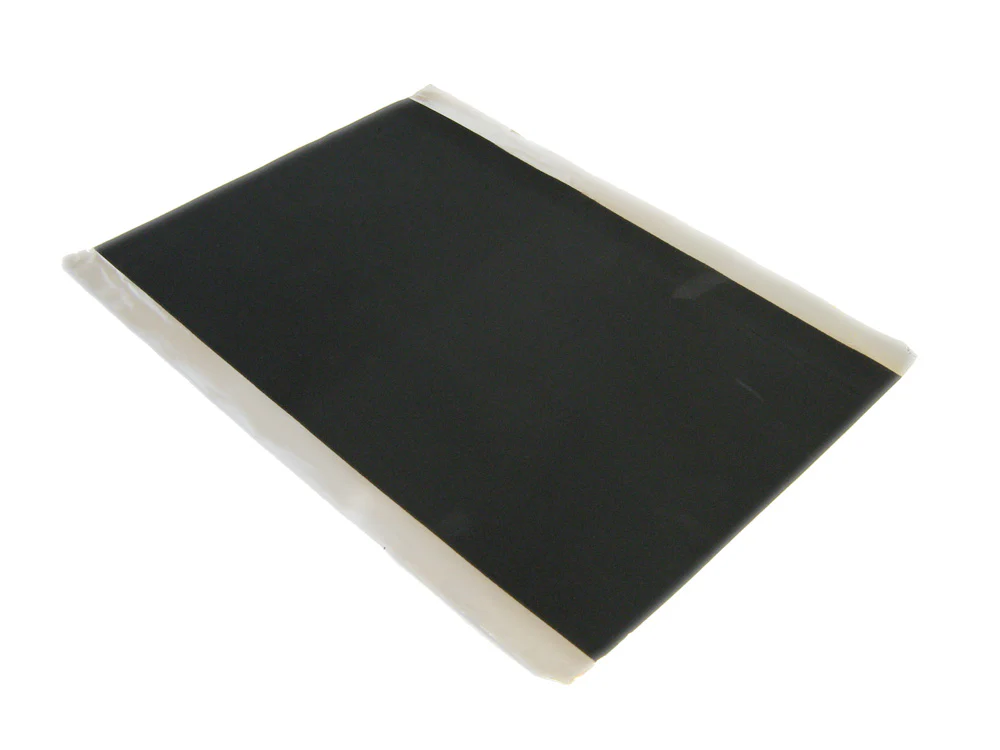

Double-Side Coated Layered Oxide NaNi1/3Fe1/3Mn1/3O2 for Sodium Ion Battery Cathode (241 L x 200 W x 0.12 Thickness mm) 5 sheets/bag - bcaf-NFMOds

SPECIFICATIONS:

• Total Area: 241 mm L x 200 mm W x 120 um T
• Coating Area: 241 mm L x 175 mm W (Left and Right-hand side 12.5 mm without coating)
• Double side coating
• Current collector (substrate): Aluminum foil, 16 um thickness
• Coating area density: 29 ± 0.4 mg/cm2
• Compaction density: 2.8 g/cm3
• Coating thickness: ~104 um
• Active Material Proportion: 95.5% (PVDF and Super P is 2% and 2.5%, respectively)
• Specific Capacity: 120 mAh/g

• Qty: 5 sheets / bag
• Warning: Please dry in vacuum oven before using and store it inside glovebox after opening the package
• SDS for Aluminum Foil
• SDS for NaNi1/3Fe1/3Mn1/3O2
• Application Note:
• Please baking at 80-100 °C under a vacuum oven before coating.
• MTI does not manufacture this product. We only provide a small quantity to research to develop a new generation battery,
• MTI is not responsible for any IP issues. If anyone feels the product conflict with your IP, please inform us, we may stop selling at any time.
