Dual layer Cold Trap with Condensing Coils - CCCTKF40

Dual layer Cold Trap with Condensing Coils - CCCTKF40

$4,900.00
Dual layer Cold Trap with Condensing Coils - CCCTKF40—
$4,900.00

The Story



SPECIFICATIONS
Features:
  • Material: 316L stainless steel
  • Structure: Double-wall structure
  • Sealing Method: Inner chamber, outer chamber, and top cover sealed with LF flange
  • Gas Inlet: KF40 port on the outer chamber
  • Gas Outlet: KF40 port on the top flange cover
  • Cooling Water Ports: Two water ports on the top flange cover, including one water inlet and one water outlet
  • Internal Cooling Structure: Two copper tubes installed inside the flange; each copper tube connector is connected to a spiral-wound copper tube
  • Condensate Drain: ⌀8 mm hose barb condensate outlet at the bottom exterior of the chamber
  • Drain Control: Ball valve for open/close control
Dimensions
  • Outer Chamber: ⌀240 × 380 mm
  • Inner Chamber: ⌀220 × 270 mm
  • Copper Coil: ⌀160 × 140 mm
  • Weight: ~17kg



Dual layer Cold Trap with Condensing Coils - CCCTKF40 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

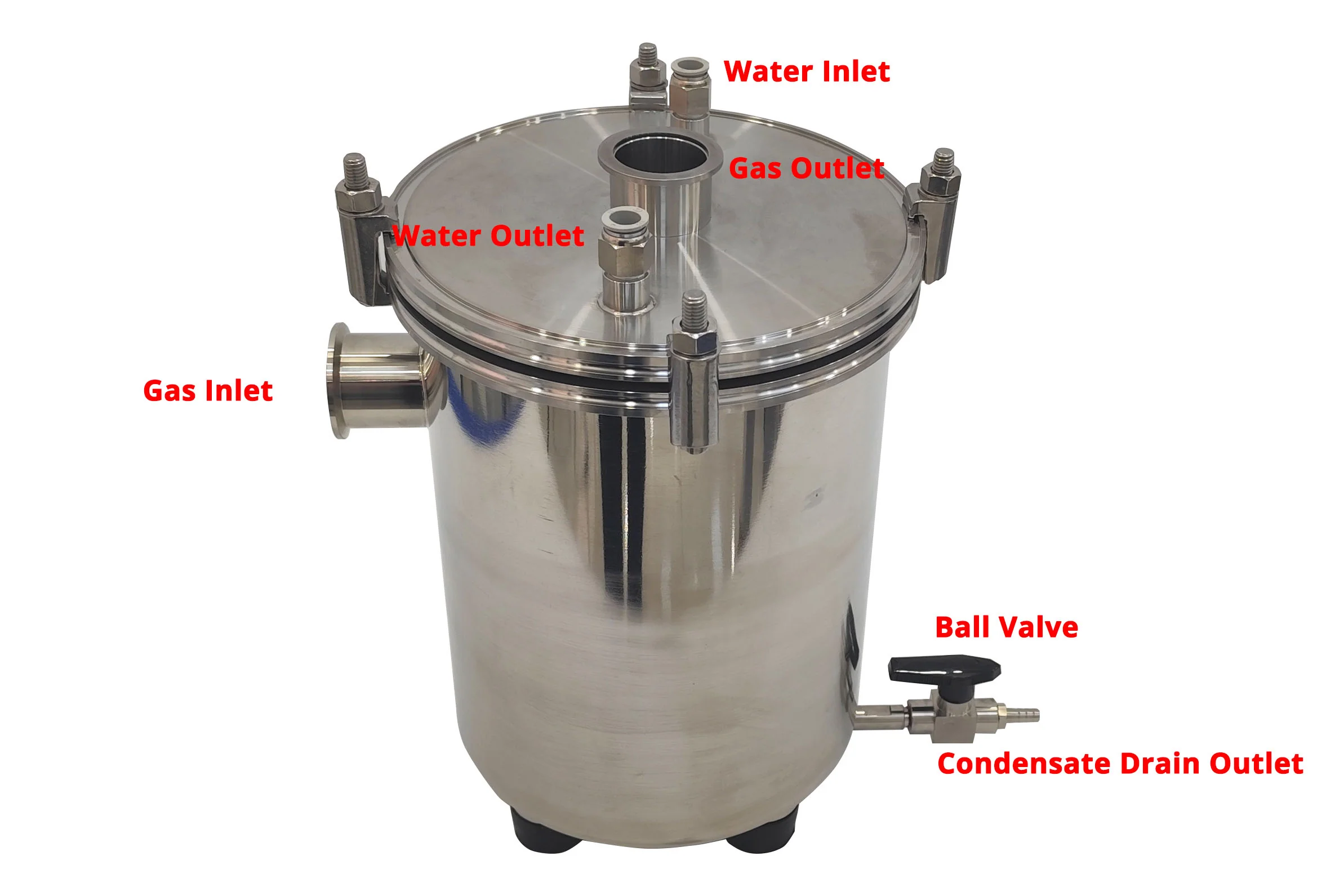

Dual layer Cold Trap with Condensing Coils - CCCTKF40 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Dual layer Cold Trap with Condensing Coils - CCCTKF40 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Dual layer Cold Trap with Condensing Coils - CCCTKF40 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description



SPECIFICATIONS
Features:
  • Material: 316L stainless steel
  • Structure: Double-wall structure
  • Sealing Method: Inner chamber, outer chamber, and top cover sealed with LF flange
  • Gas Inlet: KF40 port on the outer chamber
  • Gas Outlet: KF40 port on the top flange cover
  • Cooling Water Ports: Two water ports on the top flange cover, including one water inlet and one water outlet
  • Internal Cooling Structure: Two copper tubes installed inside the flange; each copper tube connector is connected to a spiral-wound copper tube
  • Condensate Drain: ⌀8 mm hose barb condensate outlet at the bottom exterior of the chamber
  • Drain Control: Ball valve for open/close control
Dimensions
  • Outer Chamber: ⌀240 × 380 mm
  • Inner Chamber: ⌀220 × 270 mm
  • Copper Coil: ⌀160 × 140 mm
  • Weight: ~17kg
