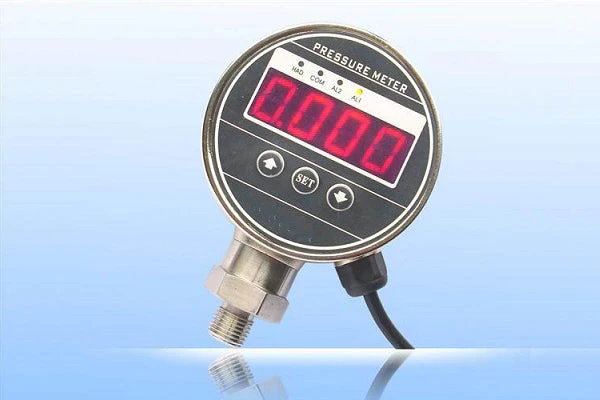

Digital Pressure Gauge, M14 x 1.5 from - Optional 30/60MPa - DHPG
HomeStore

Digital Pressure Gauge, M14 x 1.5 from - Optional 30/60MPa - DHPG

Digital Pressure Gauge, M14 x 1.5 from - Optional 30/60MPa - DHPG

Select Pressure Limit
From $138.60

Original: $396.00

-65%
Digital Pressure Gauge, M14 x 1.5 from - Optional 30/60MPa - DHPG—

$396.00

$138.60

The Story



Specification

Service Air, compatible gasses, and Liquid
Wetted Materials 316L SS, silicone sensor
Housing Materials ABS plastic
Accuracy ± 0.5% F.S.
Pressure Limits
(choose from option bar		 EQ-DHPG-30:
-100 KPa to 30MPa

EQ-DHPG-60:
-100 KPa to 60MPa
Temperature Limits -1 to 60°C
Panel Size 3" OD x 1.52" t
Process Connection M14 x 1.5 male
Display 4-digit LCD (.425" H x .234" W digits)
Power Requirements 110V - 240AC
(One power adapter from AC - 24DC included )
Out-Put signal 4 - 20mA, DC, and Two alarm output
Weight 170 g
Applications
Applications Note
  • There is alarm function (AL1 , AL2). Hold ‘’ , ‘’ for 5 seconds allows entering set ‘AL1 and AL2’
  • For RC-Ti100, the default alarm AL1 setting is 3 MPa.AL1 (Alarm1) will stop heating program when the pressure reaches alarm setting.
  • AL2 (Alarm2) is not connected.
  • For TI100, need set the AD1 = L



Parameter Setting
(Press ‘SET’ 5 secs to entering parameter setting)
LCK 0055 / 0000 AL1 9999
AL2 9999 OL 0.00
NL YES FL1 0.00
FH1 30.00 AD1(1ST Alarm) L
HY1 0.000 ALG1 NO
AD2 H HY2 0.000
ALG2 YES TH1 30.0
TL1 5.000 FT 005
