2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al

2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al

$69.30

Original: $198.00

-65%
2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al—

$198.00

$69.30

The Story

 SPECIFICATIONS:

Model  Die-2-4-Al
Capacity ~78ml Max.
Material  6061 Aluminum Alloy
Max. Pressing Load 4 Metric Tons
Max. working Temperature 200°C
Application Note
This rectangular die is designed for pre-pressing of flexible polymer sheets for hot rolling, especially for
The procedure is suggested as below:
  1. Mixing the solid powder with liquid PTFE by high energy mixer (Pic. 1)
  2. Put the mixed powder into the die, and hot press to form a 2-5 mm thick sheet (Pic. 2)
  3. Hot rolling the polymer sheet into a thin electrode sheet ( 10 - 50 microns) ( Pic. 3)
  4. It is the customer's responsibility to find the most suitable parameters for mixing, pre-mold, and rolling based on your materials
Pic. 1 Pic. 2 Pic. 3



2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

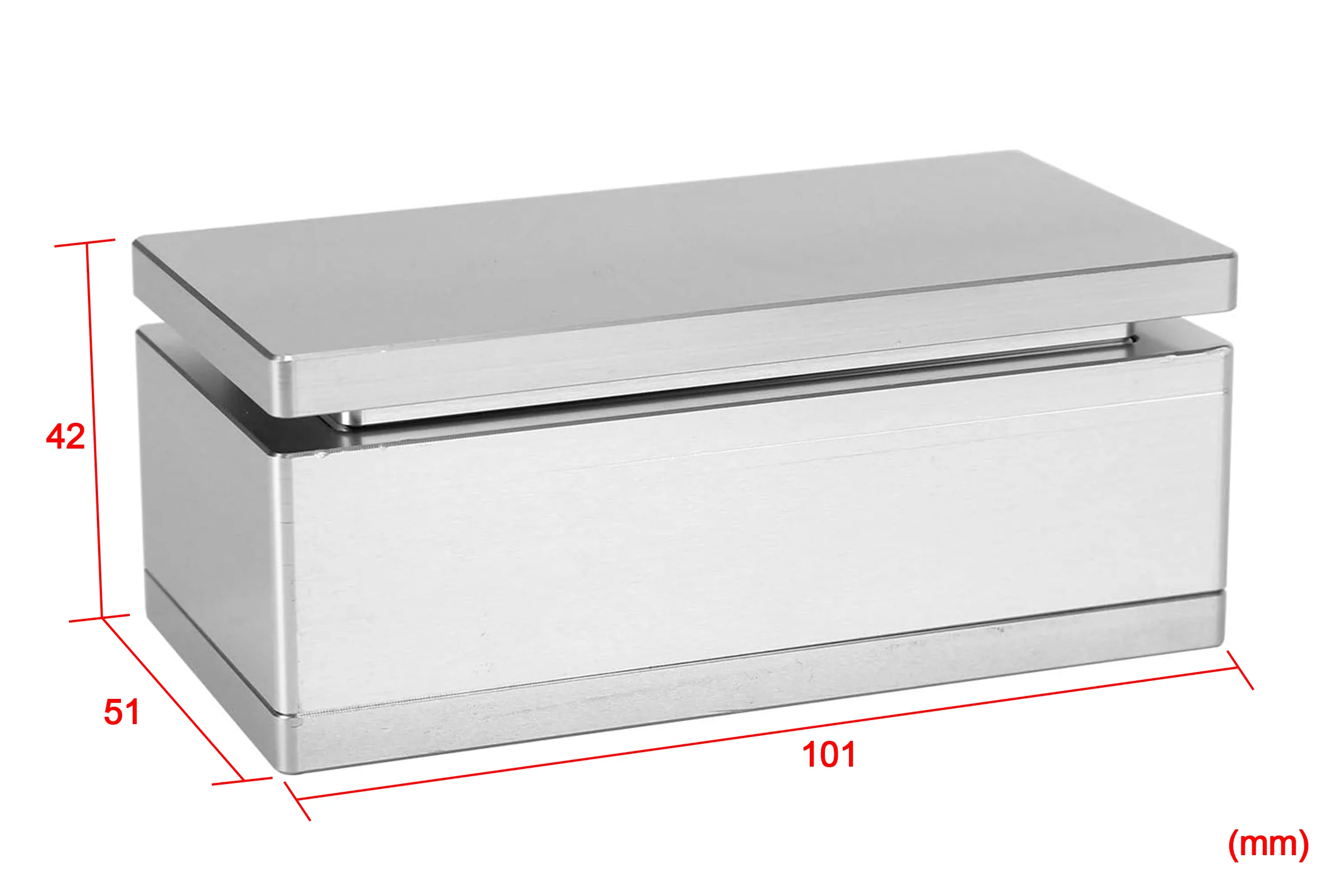

2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

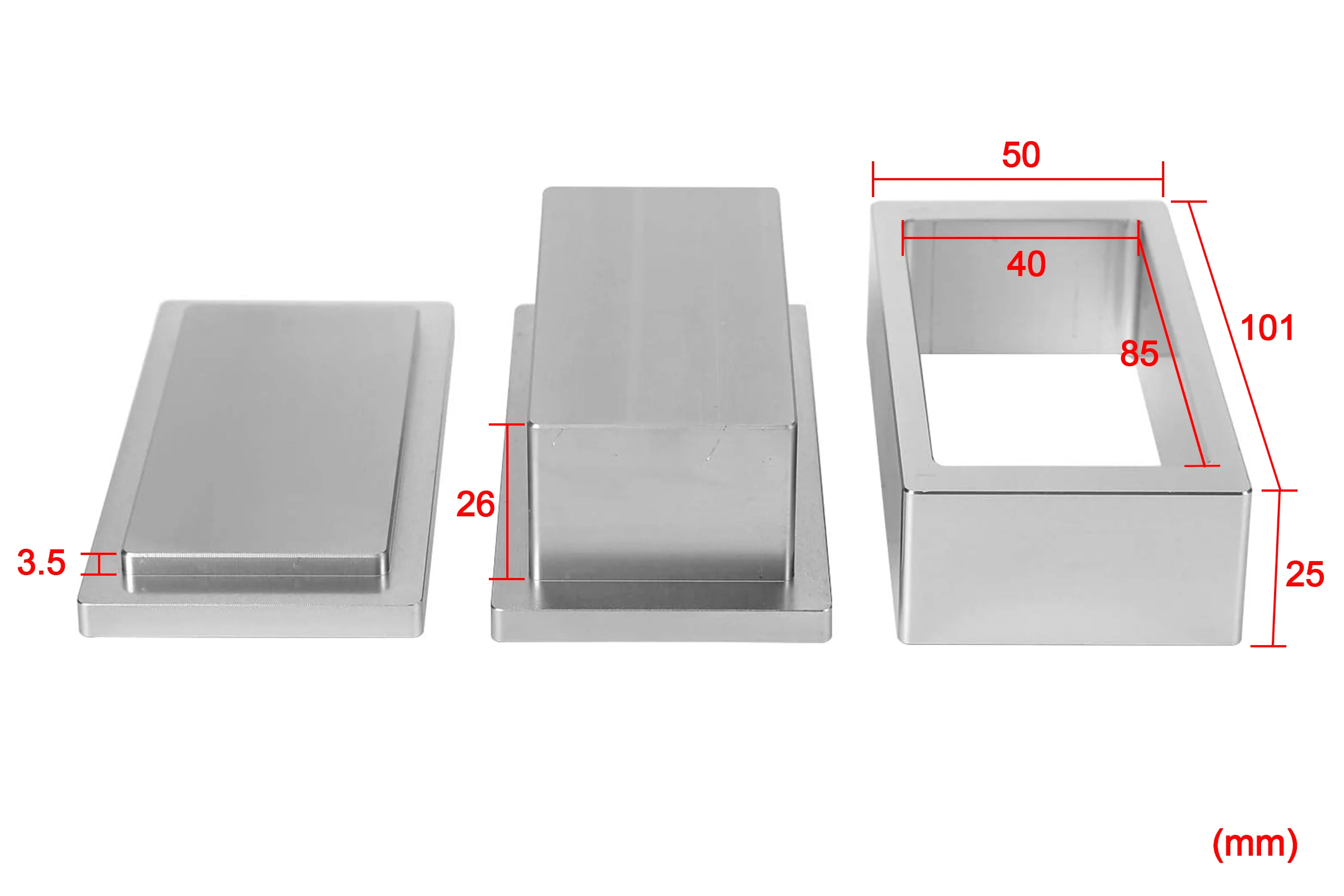

2" x 4" Pre Pressing Die Made of Aluminum -Alloy for Polymer Compound - Die-2-4-Al - Image 5
