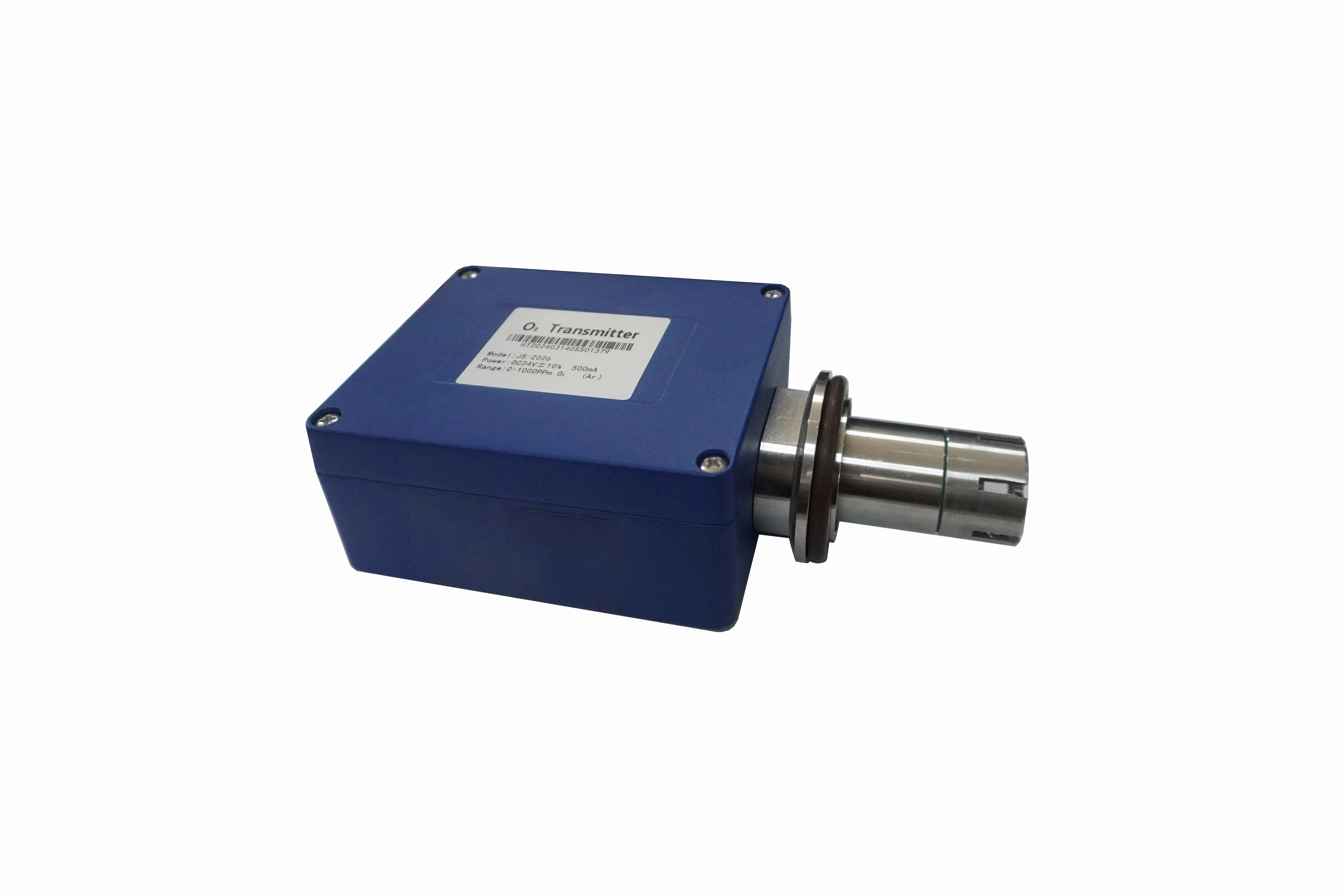

Oxygen Transmitter for VGB6-Series Glove Box - GNL120

GNL120 is an oxygen Transmitter equipped for the VGB-6 Glovebox to monitor the real-time oxygen concentration inside the glovebox. The oxygen transmitter is installed and secured via the KF40 Flange on the top of the Glovebox, and it is compatible with the usage of Nitrogen gas or inert gas.

Specification

Working Voltage	24VDC±10%
Power Output	500mA
Working Temperature Range	-10 - 500°C
Oxygen Detecting Range	0 -1000 PPM Oxygen under Ar
Accuracy	0 ~1000 PPM, ± 1% FS 0 ~ 100 PPM, ± 2% FS 0 ~ 10 PPM, ± 3% FS
Working Pressure Range	800-1200 mbar
Reading Resolution	0.1 PPM
Response Time	< 15 seconds
Communication	RS485 Communication Port
Warm-up	10 min (~6 hour if <10 ppm)
Product Dimensions	80mm x 80mm x 190mm (L x W x H)
Oxygen Sensor Probe Dimensions	Ø 26mm x 45 mm Length
Net Weight	0.7kg
Lifespan	＞ 4 years
