Select Voltage
From $648.00
Furnace Module for GSL-1100X of using 2-inch tube - GSL1100-Module-220V—
$648.00
The Story

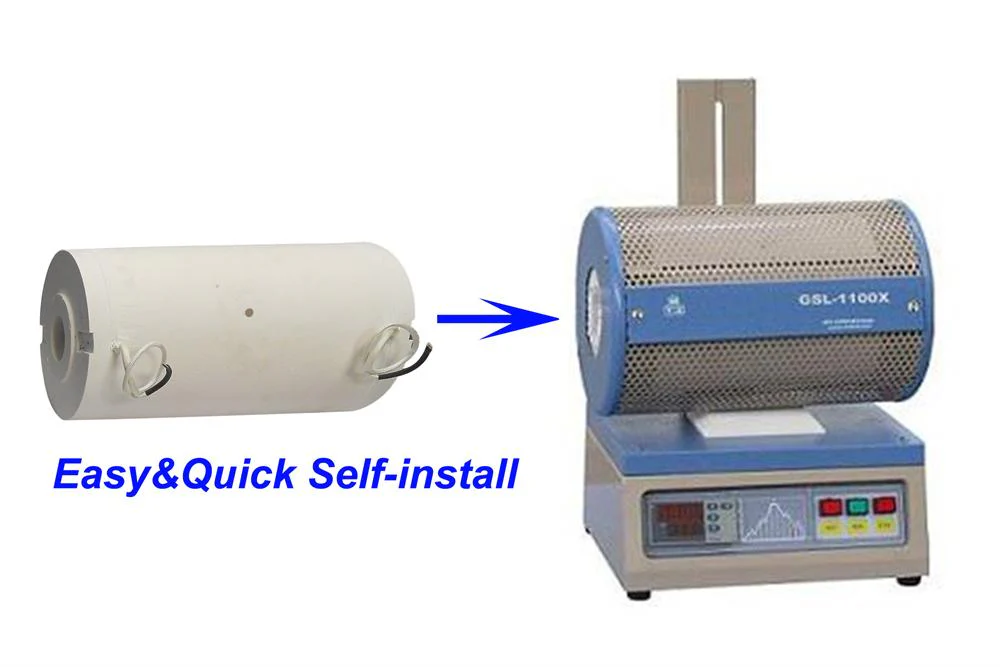

]This furnace module (liner and heating elements inside) is designed for easy replacement of the GSL-1100X liner and heating elements (208~240 Volts only). (It has heating elements embedded within the refractory ceramics and you may view its heating capabilities below. The protruding wires are to be connected to the wires from the furnace.)
- O.D: 190mm
- I.D: 80mm
- The furnace chamber is designed to adopt 2" O.D quartz tube with a built-in 2-inch adapter on each end, we also include a 2''-1" tube adaptor which allows the 1'' O.D tube be fit on the furnace.
- Length: 340 mm
- Voltage: 208 - 240v AC 50/60Hz
- 1500W Max.
- Max. working temperature: 1100oC
Description
]This furnace module (liner and heating elements inside) is designed for easy replacement of the GSL-1100X liner and heating elements (208~240 Volts only). (It has heating elements embedded within the refractory ceramics and you may view its heating capabilities below. The protruding wires are to be connected to the wires from the furnace.)
- O.D: 190mm
- I.D: 80mm
- The furnace chamber is designed to adopt 2" O.D quartz tube with a built-in 2-inch adapter on each end, we also include a 2''-1" tube adaptor which allows the 1'' O.D tube be fit on the furnace.
- Length: 340 mm
- Voltage: 208 - 240v AC 50/60Hz
- 1500W Max.
- Max. working temperature: 1100oC
