Hybrid Film Applicator: Doctor Blade (300mm) + Slot Die (200 mm W) Heads - HDS300D

• The hybrid film applicator includes two parts, which are made of stainless steel

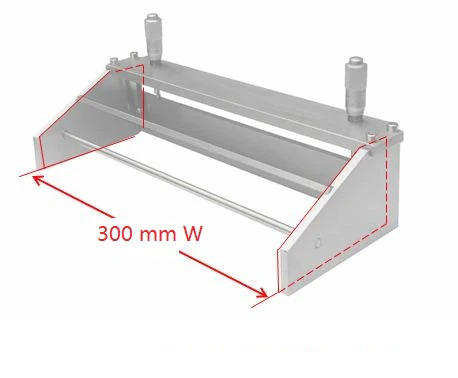

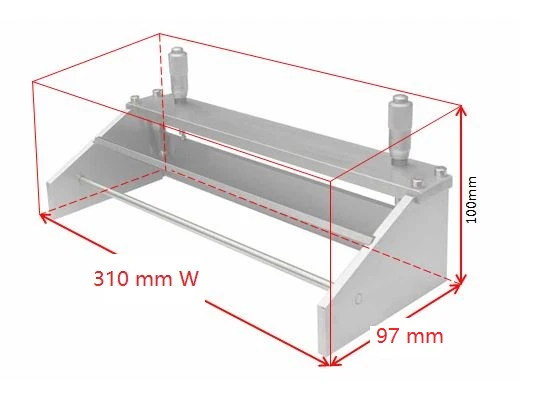

• 300 mm width doctor blade with dual micrometers to adjust film thickness at the range at 0.01 mm - 5 mm (click Picture 1 to see details, but the frame is made of PTFE )
• 200 mm width slot head, which can be fixed on the doctor blade to coat film thickness from 0.005mm - 0.02 mm (click Picture 1 to see details). 6 pcs shims are included as below:
• 2 pcs of 0.2 mm thickness shim
• 2 pcs of 0.3 mm thickness shim
• 2 pcs of 0.4 mm thickness shim
• 1 pcs PTFE tube (1/8"OD x 2.175 mm ID)
• Join connectors to pump and slot die

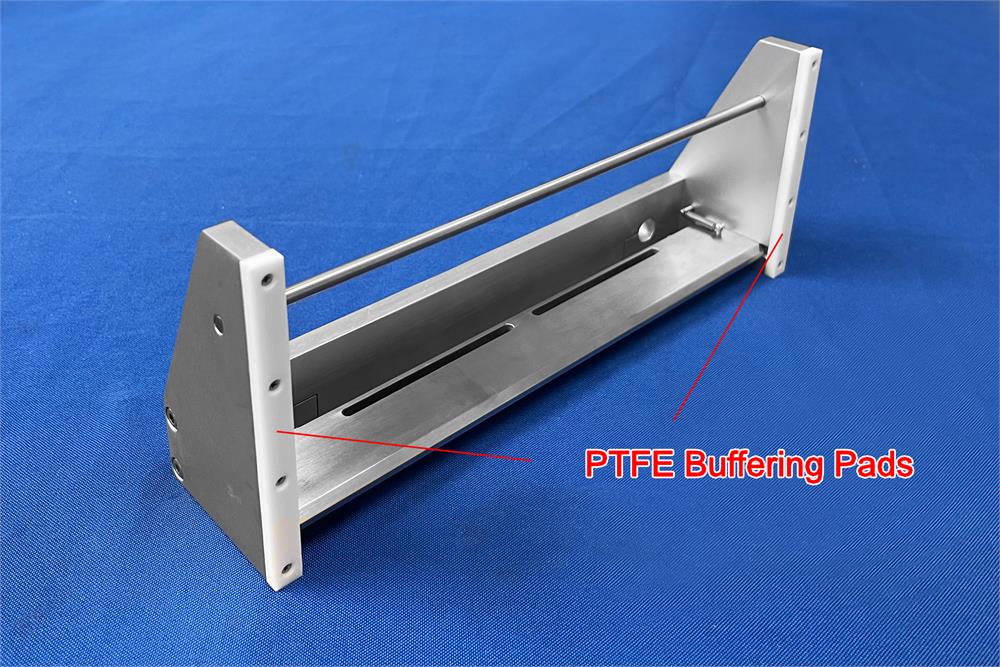

• The PTFE buffering pad installed on the bottom of the doctor blade to reduce friction
• Please select the width of the slot die from the product option

Micrometer Head

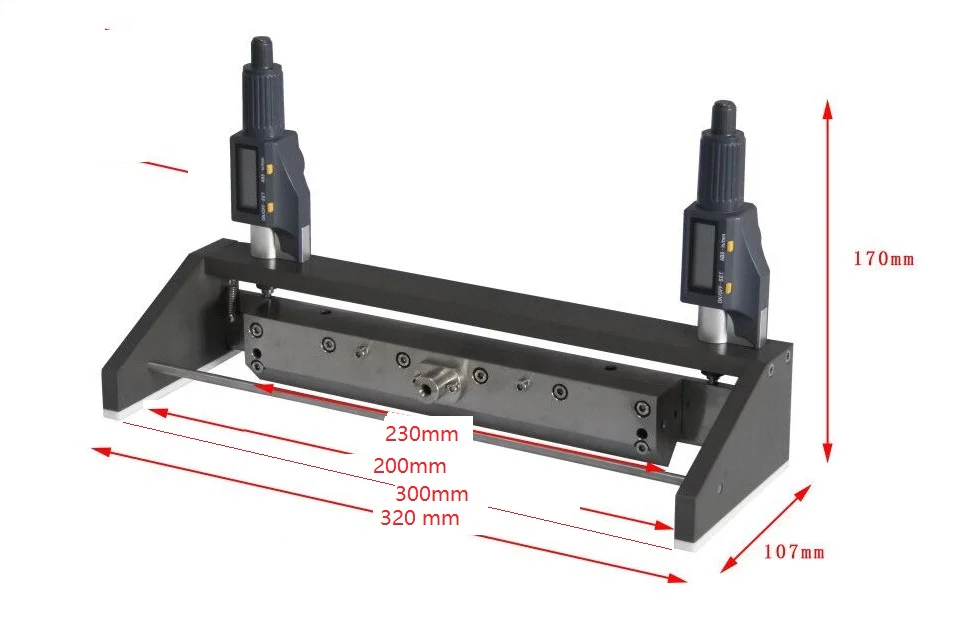

• The digital micrometer heads are built-in doctor blade frame to adjust the gap between slot die and substrate
• Digital micrometer head accuracy: +/- 0,001 mm

• Slot die is removable if using the doctor blade head for tape coating
• For slot die coating, you may order a Syringe Pump as Pic 1 below:
• Please click Pic 2 to choose a tape casting coater
