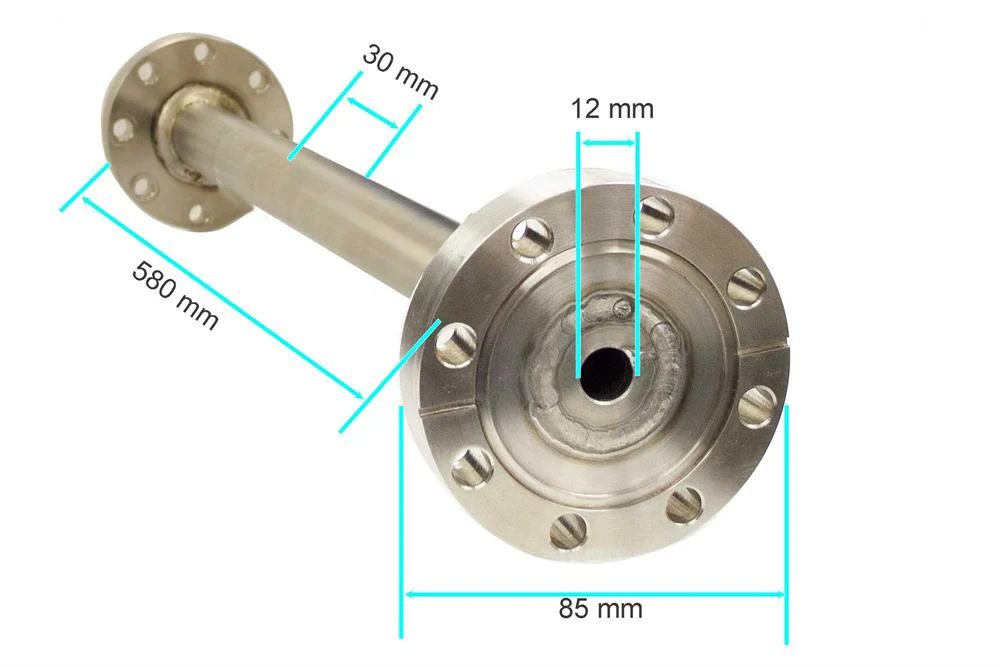

Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580

Ni-based superalloy tube vessel (30mm O.D x 12 mm I.D x 580 mm L). It can be used under ultra-highly oxidizing and inert gas atmosphere up to 1100°C to process special compounds. It is consumable part of OTF-1200X-HP-30A which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at low cost.

Specification:

Outside Diameter:	30 mm
Inside Diameter:	12 mm
Tube Length:	580 mm
Weight:	9.35 lb
Max. working temperature     without load:	1100 °C
Working Pressure              &     Temperature:	Maximum pressure inside the tube Heating temperature Max. 2900 PSI  (20 Mpa) 800°C Max. 1740 PSI  (12Mpa) 900°C Max. 870 PSI   (6 Mpa) 1000°C Max. 580 PSI   (4 Mpa) 1100°C Warning:  Please set up a pressure alarm point in the digital pressure display before the operation Must install a pressure regulator on the gas cylinder to increase pressure gradually. Service life depends on the maximum operating temperature and sample used. The high-pressure vessel is a consumable part, please order replacement once observed deformation.
Standard package	Name QTY Ni-based superalloy tube vessel) 1 set Flange  1 set Bolts  1 set Copper Ring 1 set
Optional Accessories	An optional torque wrench is available here to avoid overtightening the flange bolts Option High-pressure relief valve with pre-set safe pressure Option High-temperature pressure transmitter to read pressure
Installation:
