The Story

HPRVS-300-XX is a compact high-temperature and high-pressure reactor with a maximum. 300 °C / 10 MPa,  mechanical stirring, and touchscreen control.  The reactor container is optional from 250mL to 1000mL. It is ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS
Utility
  • AC 220V ±10%, single phase, 50/60 Hz
  • Power: 1500W
  • Stirring Motor: 4OW by a magnetic coupling motor
  • 110 VAC version is available via a 2000W separate transformer

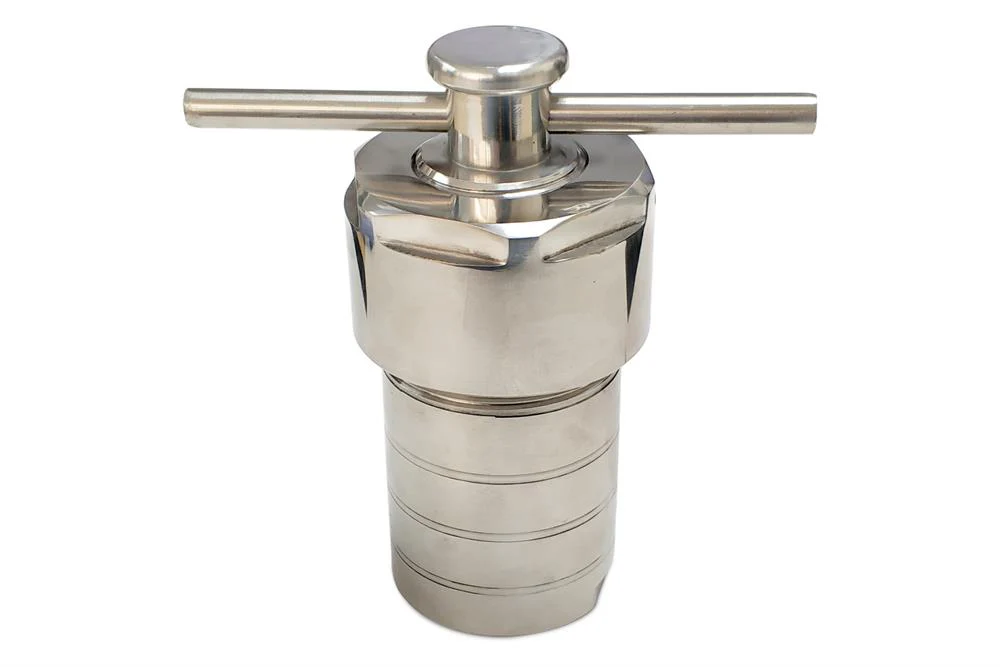

Pressure Vessel
  • Material: 316L stainless steel (other materials customizable upon request)
  • Pressure Range: –0.1 to 10 MPa (optional up to 35 MPa)
  • Volume Options:  250 mL / 500 mL / 1000 mL
  • Vessel Dimensions
    • 250mL:  56mm ID, 137mm Depth (Use 66.27x3.53mm O-ring)
    • 500mL:  70mm ID, 165mm Depth, (Use 83x3.53mm O-ring)
    • 1000mL:  80mm ID, 200mm Depth, (Use 94.84x3.53mm O-ring)
Heating Furnace
  • Working Temperature: Room temperature to 300 °C
  • Temperature Control: PID programmable control
  • Temperature Accuracy: ±1 °C
Stirring System
  • Mechanical stirring with magnetic coupling drive
  • Motor Torque: 0.53 N·m
  • Stirring Speed: 10–800 RPM

  • Standard Stirring Blade: Three-blade type (other blade types available upon request)

Note: Cooling is required for the magnetic coupling motor. Recommend water chiller (Model KJ3000) is available for purchase.
Control Interface

    Touchscreen interface for setting and displaying temperature, stirring, and pressure programs; capable of generating and exporting temperature & pressure–time curves.

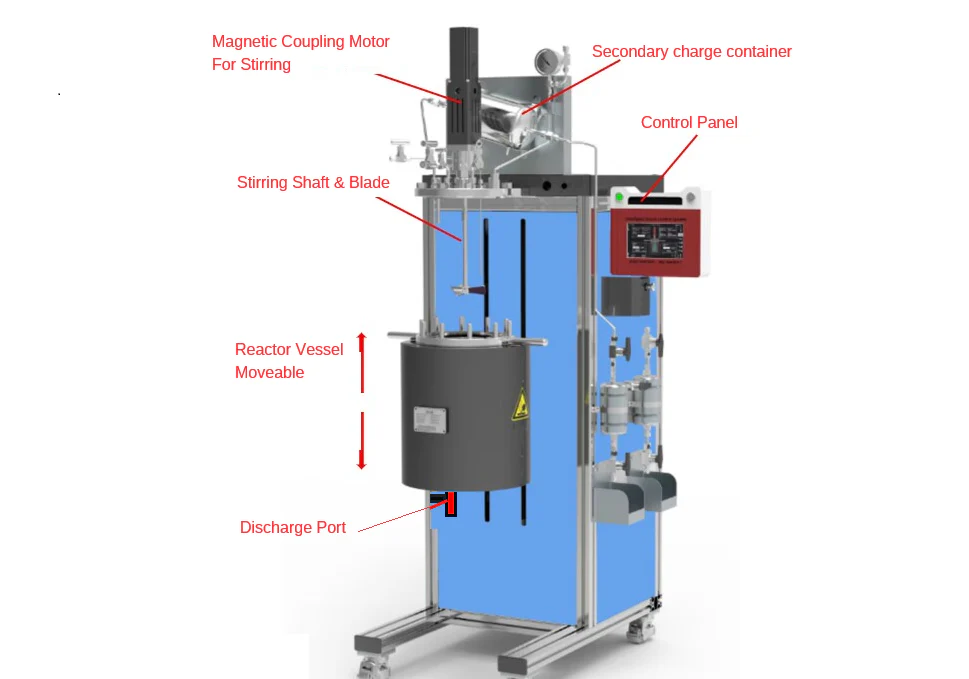

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

HPRVS-300-XX is a compact high-temperature and high-pressure reactor with a maximum. 300 °C / 10 MPa,  mechanical stirring, and touchscreen control.  The reactor container is optional from 250mL to 1000mL. It is ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS
Utility
  • AC 220V ±10%, single phase, 50/60 Hz
  • Power: 1500W
  • Stirring Motor: 4OW by a magnetic coupling motor
  • 110 VAC version is available via a 2000W separate transformer
Pressure Vessel
  • Material: 316L stainless steel (other materials customizable upon request)
  • Pressure Range: –0.1 to 10 MPa (optional up to 35 MPa)
  • Volume Options:  250 mL / 500 mL / 1000 mL
  • Vessel Dimensions
    • 250mL:  56mm ID, 137mm Depth (Use 66.27x3.53mm O-ring)
    • 500mL:  70mm ID, 165mm Depth, (Use 83x3.53mm O-ring)
    • 1000mL:  80mm ID, 200mm Depth, (Use 94.84x3.53mm O-ring)
Heating Furnace
  • Working Temperature: Room temperature to 300 °C
  • Temperature Control: PID programmable control
  • Temperature Accuracy: ±1 °C
Stirring System
  • Mechanical stirring with magnetic coupling drive
  • Motor Torque: 0.53 N·m
  • Stirring Speed: 10–800 RPM

  • Standard Stirring Blade: Three-blade type (other blade types available upon request)

Note: Cooling is required for the magnetic coupling motor. Recommend water chiller (Model KJ3000) is available for purchase.
Control Interface

    Touchscreen interface for setting and displaying temperature, stirring, and pressure programs; capable of generating and exporting temperature & pressure–time curves.
