Thermocouple: B type (Pt-Rh to Pt-Rh) 9 1/4" Length with Alumina sheath (Up to 1700C) - IH25TCB
HomeStore

Thermocouple: B type (Pt-Rh to Pt-Rh) 9 1/4" Length with Alumina sheath (Up to 1700C) - IH25TCB

Thermocouple: B type (Pt-Rh to Pt-Rh) 9 1/4" Length with Alumina sheath (Up to 1700C) - IH25TCB

$1,568.00
Thermocouple: B type (Pt-Rh to Pt-Rh) 9 1/4" Length with Alumina sheath (Up to 1700C) - IH25TCB—
$1,568.00

The Story

Features:

  • B type thermocouple for applications at high temperature up to 1700 oC.
  • Suitable for SP-15TC Induction Heater
  • Ceramic end holder with screws to connect thermocouple to a temperature controller
  Specifications:

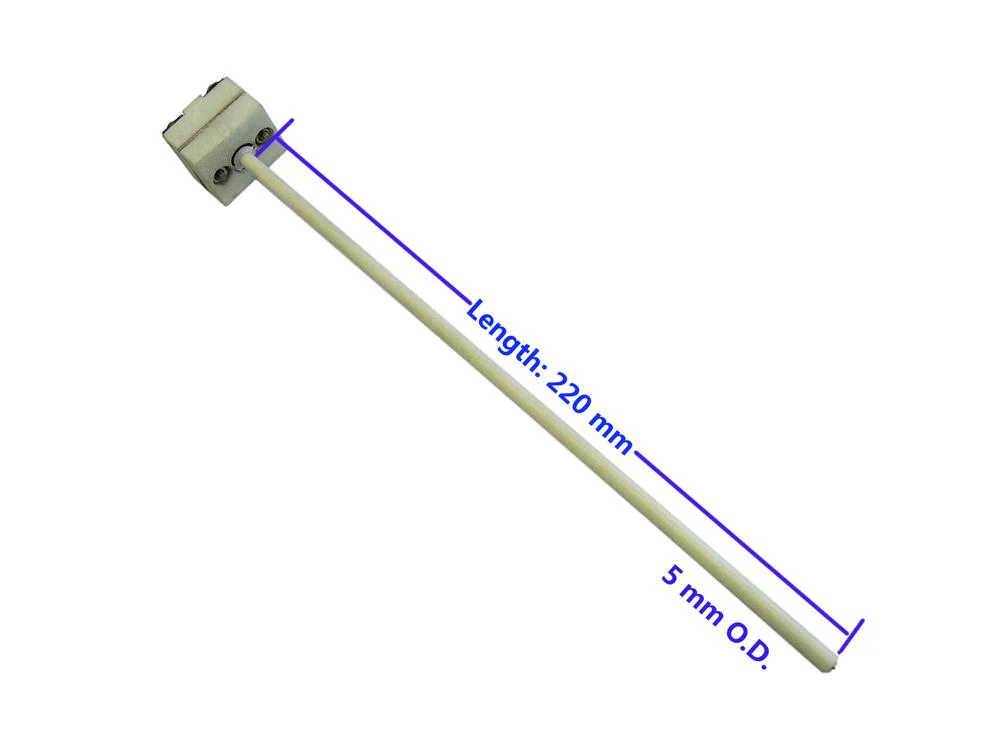

Thermocouple Length:   235 mm (9 1/4") with connection port.
                                   220 mm (8 3/4") without connection part.
Sheath Diameter:          5 mm, high purity alumina
Positive Material:          Pt/Rh (30 %)
Negative Material:         Pt/Rh (6 %)
Lowest Temperature:     50 oC
Highest Temperature:    1700 oC
Minimum Std. Error:      +/-1.4 oC



Thermocouple: B type (Pt-Rh to Pt-Rh) 9 1/4" Length with Alumina sheath (Up to 1700C) - IH25TCB - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Features:

  • B type thermocouple for applications at high temperature up to 1700 oC.
  • Suitable for SP-15TC Induction Heater
  • Ceramic end holder with screws to connect thermocouple to a temperature controller
  Specifications:
Thermocouple Length:   235 mm (9 1/4") with connection port.
                                   220 mm (8 3/4") without connection part.
Sheath Diameter:          5 mm, high purity alumina
Positive Material:          Pt/Rh (30 %)
Negative Material:         Pt/Rh (6 %)
Lowest Temperature:     50 oC
Highest Temperature:    1700 oC
Minimum Std. Error:      +/-1.4 oC
