Single-side Quick Flange with KF16 Adapter for 8mm to 45mm O.D. Tube

Single-side Quick Flange with KF16 Adapter for 8mm to 45mm O.D. Tube

Select Diameter
From $78.75

Original: $225.00

-65%
Single-side Quick Flange with KF16 Adapter for 8mm to 45mm O.D. Tube—

$225.00

$78.75

The Story

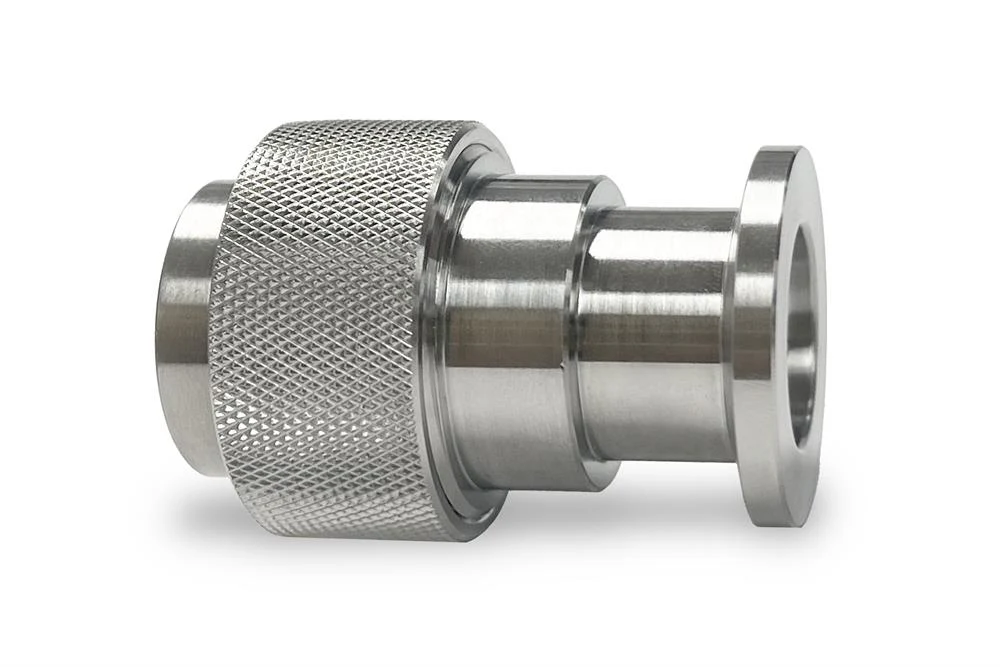

Single-side quick flange with a KF16 adapter for 8mm to 45mm O.D. tube, which is a fast and convenient method for coupling and uncoupling metal and glass tubing.

SPECIFICATIONS

Structure  (Click the pic for more detail)
Features
  • Vacuum level: 10E-5 torr by the molecular pump and 10E-2 torr by the mechanical pump
  • Temperature Range: -20ºC to 150ºC
  • Made of 304 SS
Optional

  • Quick flanges for different tube diameters (8mm to 45mm) are available on the options bar.

  • One-end closed quartz tubes with different outer diameters (10mm, 20mm, 35mm, or 45mm) are available upon request (Pic.1)
  • Two Configuration:
    • Configuration 1: Quick clamp with KF25 port (Pic.2)
    • Configuration 2: Quick clamp with a gas inlet valve (Pic.2)
  • Warning: 15 mm dia quartz thermal block inside the tube is recommended during heating to avoid damage to the O-ring on the flange, which is not covered by the warranty. (Pic.3)
  • Order a rotatable vacuum ampoule sealing device to seal the sample in a quartz tube ampule. (Pic.4)
 Pic.1  Pic.2Pic.3  Pic.4

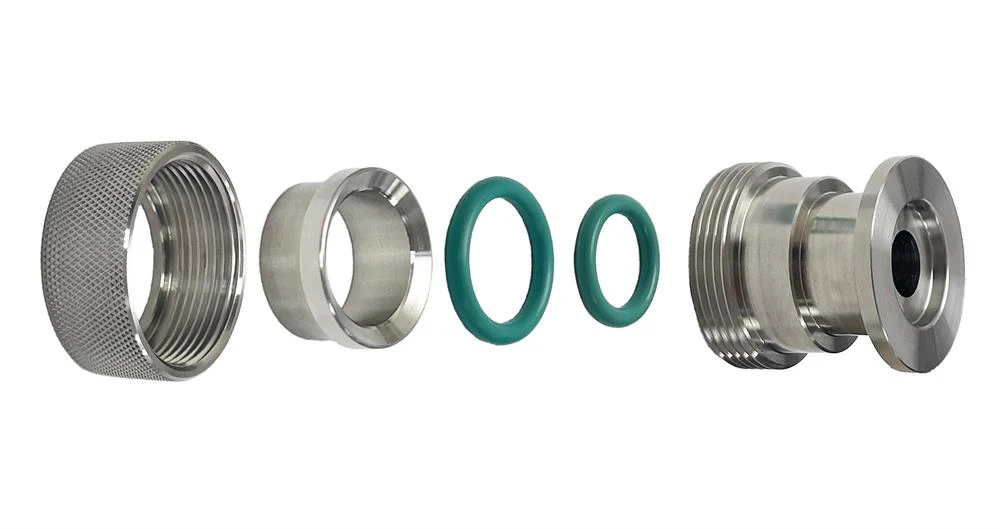

Single-side Quick Flange with KF16 Adapter for 8mm to 45mm O.D. Tube - Image 2
