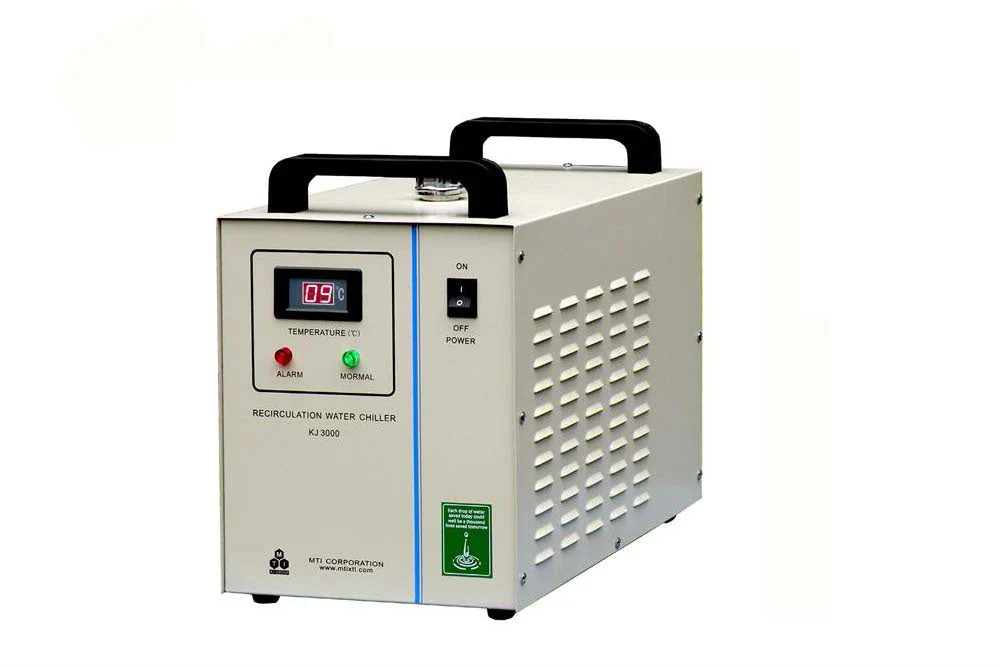

Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - KJ3000
HomeStore

Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - KJ3000

Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - KJ3000

Select by Voltage
From $945.00
Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - KJ3000—
$945.00

The Story

EQ-KJ3000 is a CE-certified Forced air cold Water-cooled Chiller that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed-loop systems up to 10L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This 9 Liters chiller provides high cooling capacity via air cold radiator at low cost and has a convenient digital reading and setting display.
SPECIFICATIONS
Power Supply AC 100-120V or AC 208-240V can be selected in the options bar (50/60Hz).
Current 0.45A
Cooling Method & Capacity
 Cooling via the radiator and cooling fan
Cooling Capacity: 50W/°C via
Note: No target temperature. Temperature cannot go below room temperature due to the cooling method.
Fixed high-temperature alarm: 60°C
Temperature  Digital Current Temperature display
Temperature accuracy: ± 1 °C
Built in temperature alarm
Max. Pump Head 10 meters (14psi)
Pipe connectors
  • Φ 12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included
Water Flow Rate
10 Liters/minute
Water Tank
  • 9 Liters made of stainless steel
  • The water chiller should not be connected to a system with a capacity more than the tank's capacity itself.
  • Distilled water is required as the coolant.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Protection
Protected from overflow alarm
Overall dimension 47 X 27 X 37 cm (L x W x H)
Shipping Dimension 40" x 22" x 23"
Shipping Weight 50 lbs
Compliance
  • CE approval
  • No MET Certification (UL 1450) is available. MET Certified version of the water chiller, KJ-5000 (220V), is available upon request at extra cost
Application Notes
  • This chiller is using thermolysis cooling method. Thus, the chiller can't cool the temperature lower than ambient temperature. (e.g the room temperature is 14 °C. The minimum temperature cooled by the chiller is 14 °C). Please consider the KJ5000 water chiller if you want the temperature to be lower than ambient temperature.
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction

Description

EQ-KJ3000 is a CE-certified Forced air cold Water-cooled Chiller that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed-loop systems up to 10L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This 9 Liters chiller provides high cooling capacity via air cold radiator at low cost and has a convenient digital reading and setting display.
SPECIFICATIONS
Power Supply AC 100-120V or AC 208-240V can be selected in the options bar (50/60Hz).
Current 0.45A
Cooling Method & Capacity
 Cooling via the radiator and cooling fan
Cooling Capacity: 50W/°C via
Note: No target temperature. Temperature cannot go below room temperature due to the cooling method.
Fixed high-temperature alarm: 60°C
Temperature  Digital Current Temperature display
Temperature accuracy: ± 1 °C
Built in temperature alarm
Max. Pump Head 10 meters (14psi)
Pipe connectors
  • Φ 12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included
Water Flow Rate
10 Liters/minute
Water Tank
  • 9 Liters made of stainless steel
  • The water chiller should not be connected to a system with a capacity more than the tank's capacity itself.
  • Distilled water is required as the coolant.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Protection
Protected from overflow alarm
Overall dimension 47 X 27 X 37 cm (L x W x H)
Shipping Dimension 40" x 22" x 23"
Shipping Weight 50 lbs
Compliance
  • CE approval
  • No MET Certification (UL 1450) is available. MET Certified version of the water chiller, KJ-5000 (220V), is available upon request at extra cost
Application Notes
  • This chiller is using thermolysis cooling method. Thus, the chiller can't cool the temperature lower than ambient temperature. (e.g the room temperature is 14 °C. The minimum temperature cooled by the chiller is 14 °C). Please consider the KJ5000 water chiller if you want the temperature to be lower than ambient temperature.
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
