Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300
HomeStore

Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300

Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300

Select by Frequency
From $3,148.60

Original: $8,996.00

-65%
Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300—

$8,996.00

$3,148.60

The Story

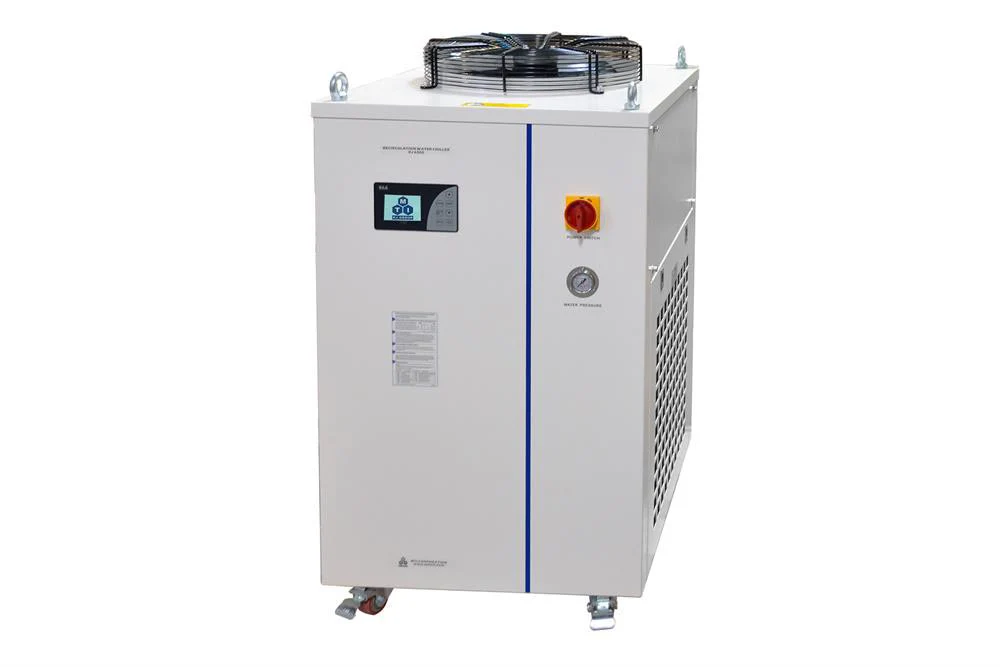

KJ-6300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed-loop systems up to 75 L/min. It eliminates scale buildup, sewerage costs, and tap water cooling expenses.
This recirculating chiller provides high cooling at a low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. The chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy movement. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI CZ crystal growers, larger tube furnaces, high-power induction heaters
SPECIFICATIONS
Power Supply
AC 208 -240VAC, single phase, ( 50Hz or 60Hz can be selected in the options bar ).
Max Power Input 5.44 kW
Nominal Cooling Capacity 9 kW, 30708 Btu/h, 7738 kcal/h
Compressor Rotary Compressor, 2.64 kW (50 Hz), 2.71 kW (60 Hz)
Refrigerant R410A
Temperature Control 5~30 °C
Temperature Accuracy ± 1 °C
Heating Exchanger Aluminum
Water Pump
0.55 kW (50 Hz), 0.75 kW (60 Hz)
Water Flow Rate (Head Pressure)
75 Liter/minute ( 28 meters high, 40psi )
Maximum Water Pressure
62 psi (50 Hz), 75 psi (60 Hz)
Water Tank
  • 40 L, distilled water only.
  • The water chiller should not be connected to a system with a capacity more than the tank's capacity itself.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
  • Distilled water is required as the coolant.
Pipe Connection
  • Φ12mm push-to-connect connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included
Water Filter
  • One water filter is included for immediate use.
  • Replace the water filter every 3 to 6 months based on water quality and usage. Please click the pictures below to learn more.
Noise
80dBA
Protection
Protected from over-temperature and Min 2 L/min water flow
Compliance
  • CE approval
  • NRTL or CSA is available upon request at extra cost, please contact our sales representatives for a quote.
Warranty
  • One-year limited warranty with lifetime support
Application Notes
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to the wrong water flow direction

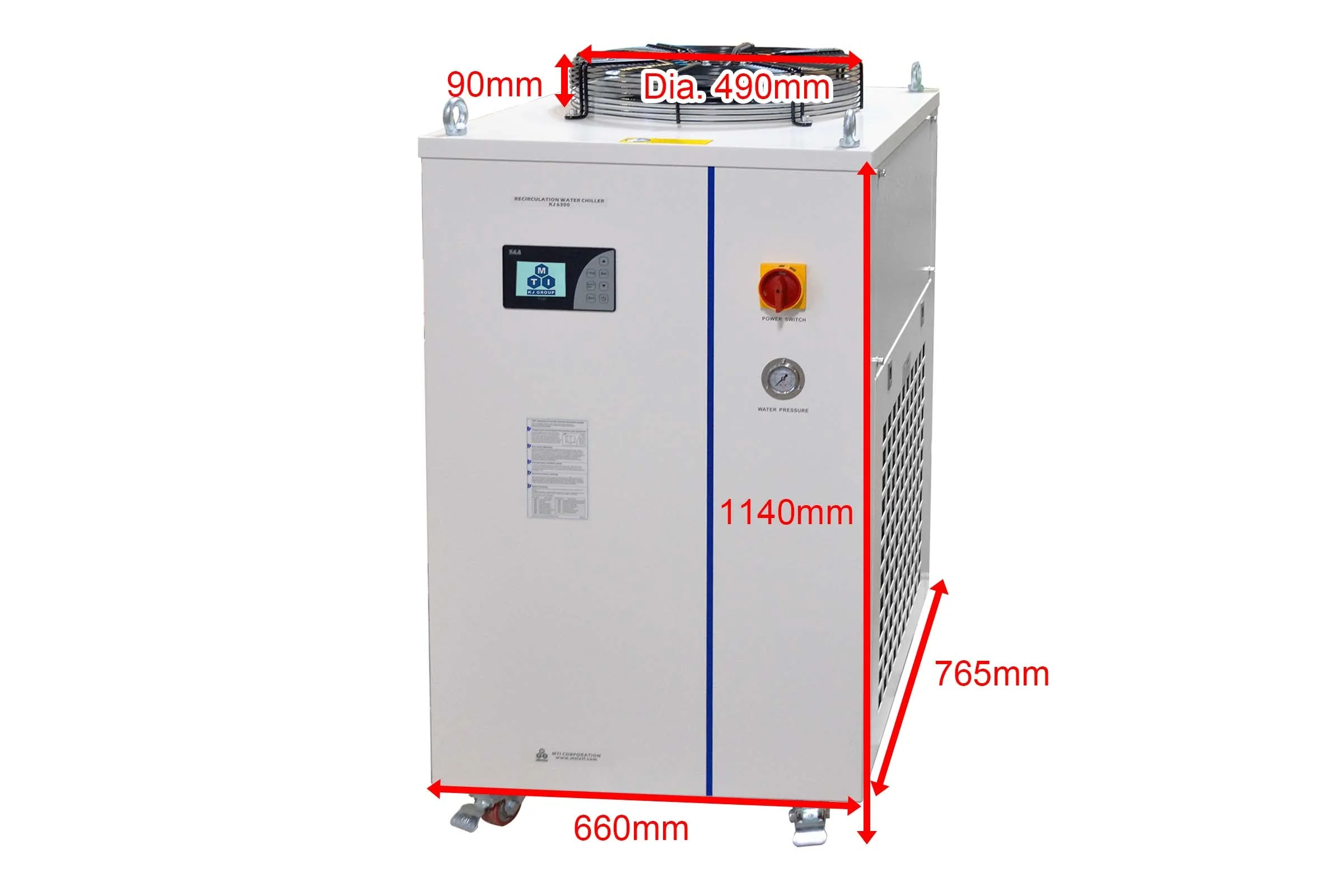

Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300 - Image 2
