1100°C Four Chamber HTP Muffle Furnace w/ Programmable Temp. Controller - KSL1100XSMGI4

Features

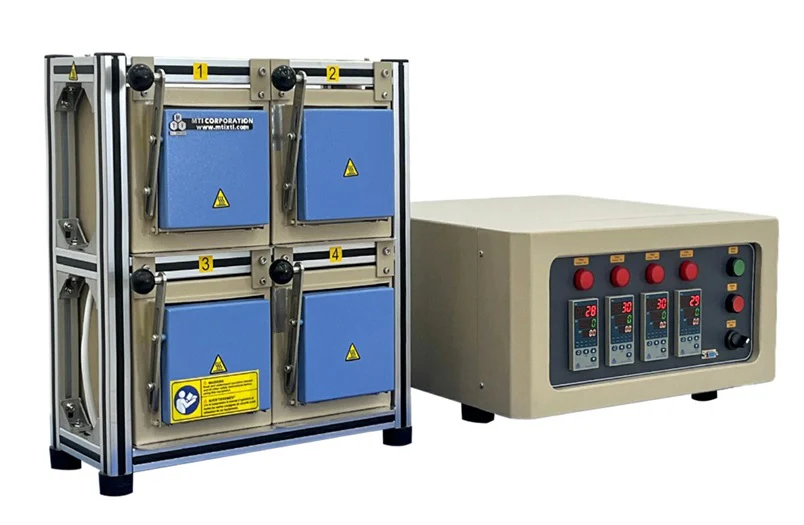

• Integrate four mini muffle furnaces into one frame to save space and energy.

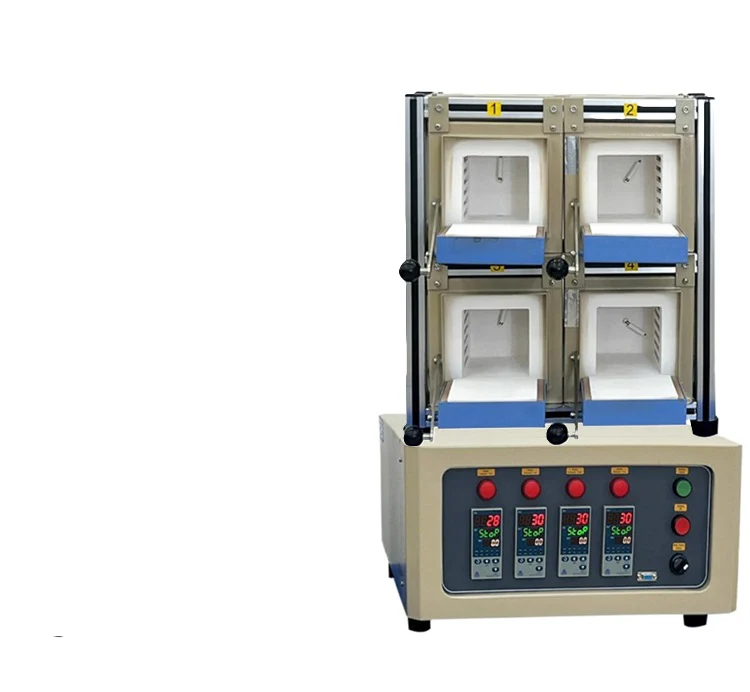

• Drop-down door for easy and safe sample loading
• Small enough to place inside a standard glovebox, while a separate temperature controller is put in the outside glovebox via KF40 feedthrough

Power

• 110V version: 950 W (15A Fuse) for each furnace ( power cord is included), Plug: NEMA 5-15P) ,  Total power consumption 3800 W
• 220V version: 1.2KW(10A Fuse) for each furnace (power cord is included without a power plug.)

Operating Temperature

• 200 °C - 1000°C max continuously for each chamber
• 1100°C max for an hour
• Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.

Max. Heating Rate

• 30 °C /min Max.
• 10oC / min recommended for longer service life

Temperature Controller

• The 4-channel temperature controller is separated from the integrated furnace unit.
• Each controller has PID automatic control and an auto-tune function.
• 30 programmable segments for each heating chamber
• Built-in protection for overheating and a broken thermocouple.

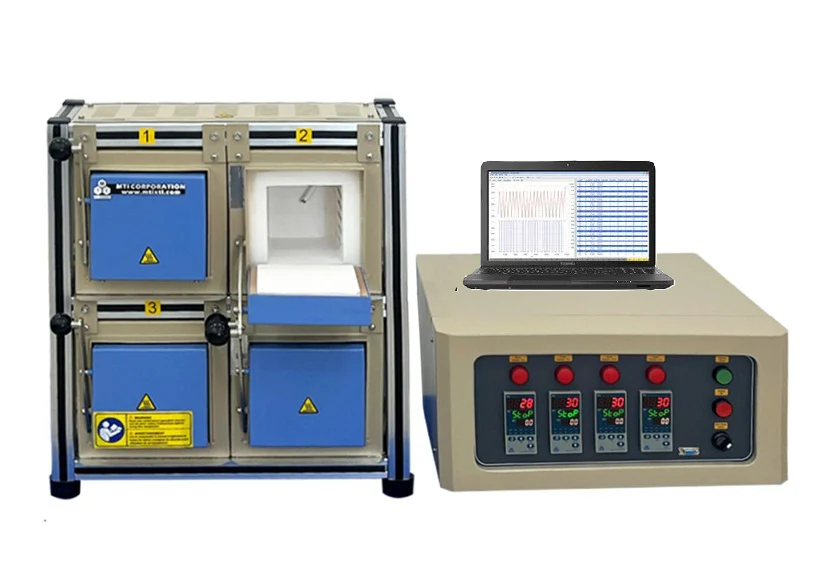

• Optional software is available at extra cost to operate the furnace by a laptop in a remote place.

Temperature Accuracy

• +/- 1 °C from 200 °C to 1100 °C

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type x 4

Compliance

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.


Warnings

• Toxic or explosive gases are not recommended for use with this furnace
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.
•
