21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700
HomeStore

21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700

21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700

$398.00
21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700—
$398.00

The Story

Specifications

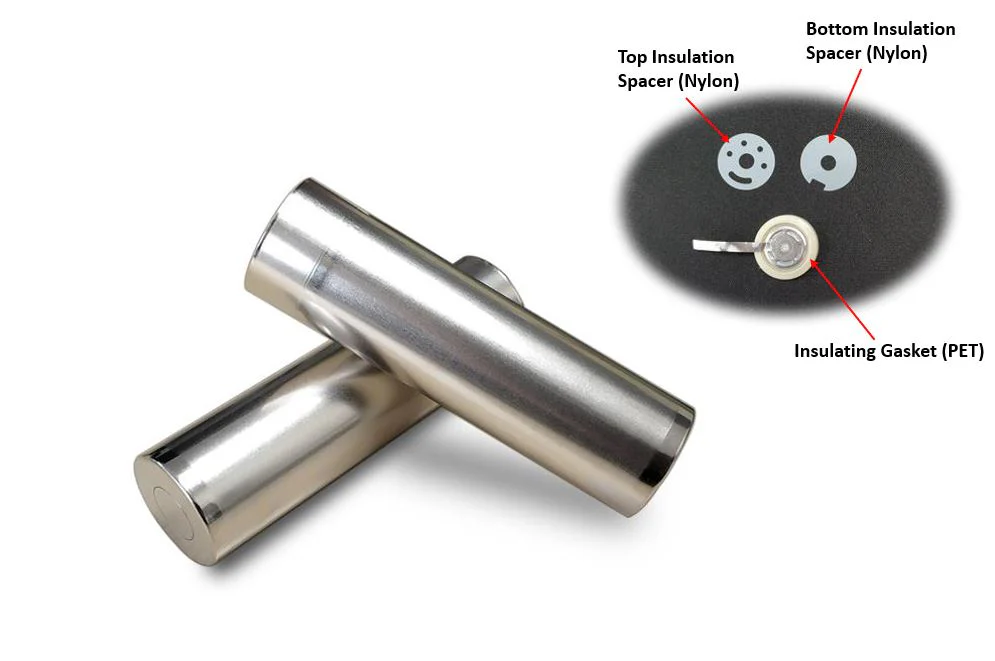

Material
  • Case and cap are made of Nickel plated A3 steel
  • Top and bottom insulating spacers are made of nylon
  • Insulating gasket is made of PET
Dimensions (Dia x Height)
  • Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H)
  • Top Cap: 20.4mm (D) x 4.2mm (H)
 Weight
  • 8.45 g/pcs
 Note
  • Safety valve's open pressure: 1.8 - 2.4MPa (the cap valve will open to release interior high pressure if over 2.4MPa, to ensure the can does not explode)

Application
  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

    Grooved by MSK-500

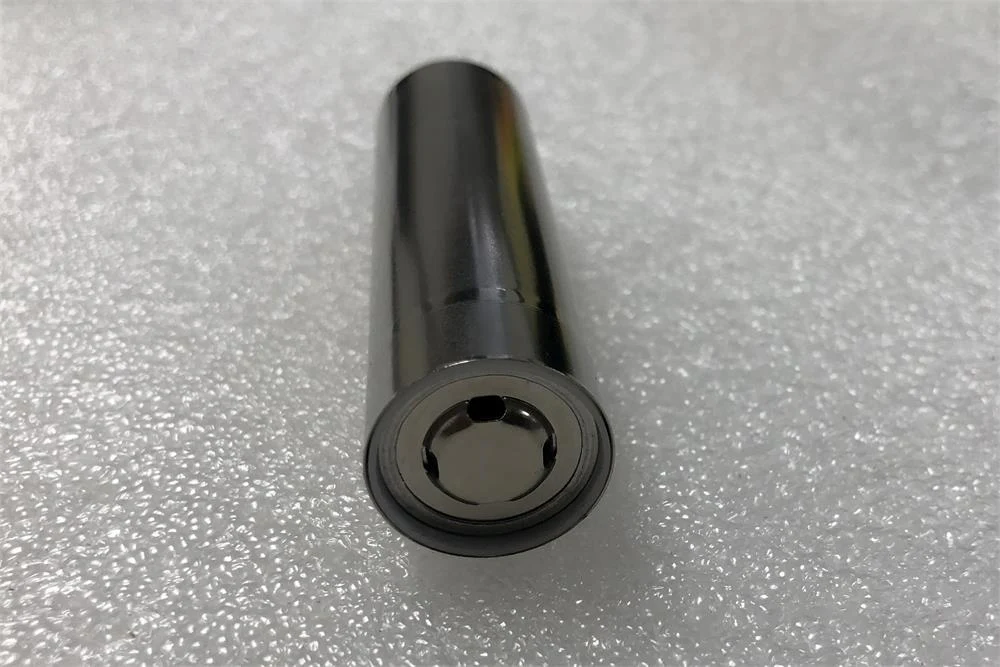

    Sealed by MSK-510





21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.
