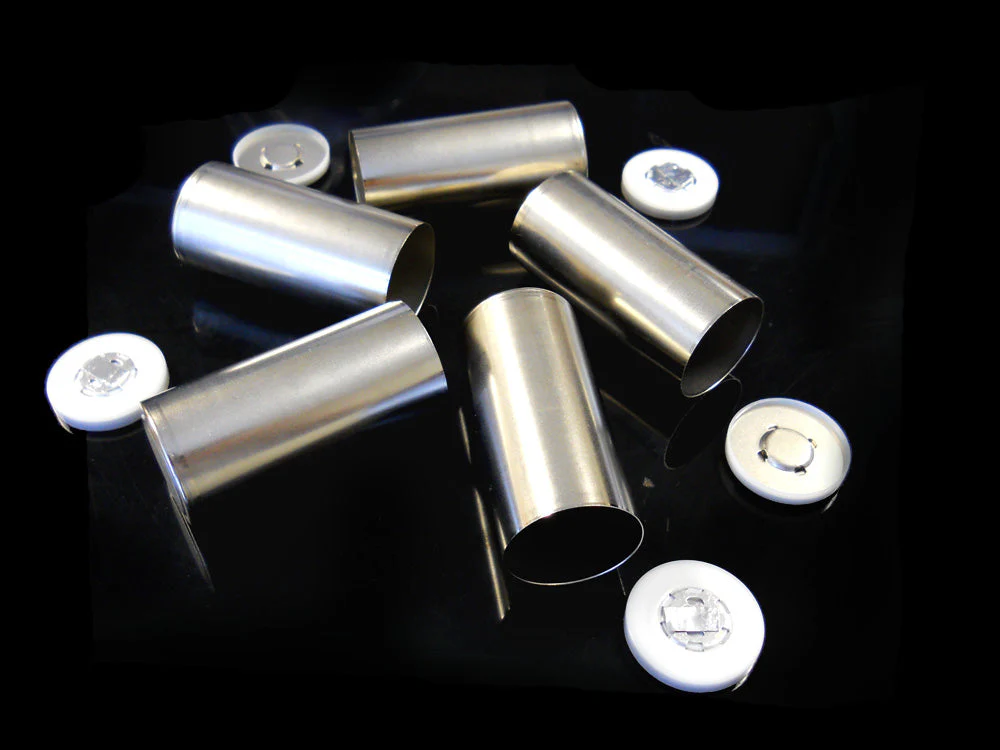

32650 Cylinder Cell Case and Anti-Explosive Cap with Insulation O-ring and Built-in PTC Thermistor- 60 Pcs/package -Lib-32650
HomeStore

32650 Cylinder Cell Case and Anti-Explosive Cap with Insulation O-ring and Built-in PTC Thermistor- 60 Pcs/package -Lib-32650

32650 Cylinder Cell Case and Anti-Explosive Cap with Insulation O-ring and Built-in PTC Thermistor- 60 Pcs/package -Lib-32650

$103.60

Original: $296.00

-65%
32650 Cylinder Cell Case and Anti-Explosive Cap with Insulation O-ring and Built-in PTC Thermistor- 60 Pcs/package -Lib-32650—

$296.00

$103.60

The Story

Specifications

Dimensions (Dia. x Height)
  • Case: 32mm(OD) x 31.5mm(ID) x 68mm(H)
  • Top Cap: 31.5mm(D) x 5.3mm(H)
Materials
  • Casing and cap made of Nickel plated A3 steel and sealing O-ring made of nylon
Weight
  • 28.85g/pcs
Note
  • Min. order: 60 pcs per package
  • Positive Temperature Coefficient (PTC) Thermistor is built into the cap for overcurrent protection
  • Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)

Application

  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

    Grooved by MSK-500

    Sealed by MSK-510





Description

Specifications

Dimensions (Dia. x Height)
  • Case: 32mm(OD) x 31.5mm(ID) x 68mm(H)
  • Top Cap: 31.5mm(D) x 5.3mm(H)
Materials
  • Casing and cap made of Nickel plated A3 steel and sealing O-ring made of nylon
Weight
  • 28.85g/pcs
Note
  • Min. order: 60 pcs per package
  • Positive Temperature Coefficient (PTC) Thermistor is built into the cap for overcurrent protection
  • Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)

Application

  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

    Grooved by MSK-500

    Sealed by MSK-510
