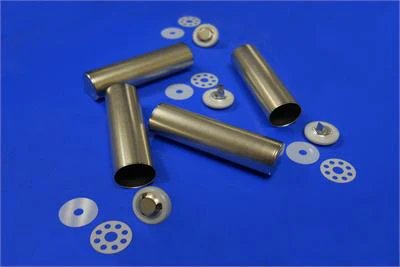

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA
HomeStore

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA

$69.30

Original: $198.00

-65%
AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA—

$198.00

$69.30

The Story

Specifications

Dimensions (Dia x Height)
  • Case: 14mm(OD) x 13.5mm(ID) x 49mm(H)
  • Top Cap: 13.1mm(D) x 4.05mm(H)
  • Top Insulator: 12.5mm(D) x 0.19mm(H)
  • Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
  • Case and cap made of Nickel plated A3 steel
  • Seal O-ring and spacer are made of nylon
Weight
  • 5.75g/ pc
Note
  • Top Cap Open Pressure: 2.5Mpa (the cap will open to release high pressure inside if over 2.5Mpa to ensure no explosion from the can)
  • Min. order 100 pcs / package

Application

  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

    Grooved by MSK-500

    Sealed by MSK-510


Options
  • Optional safety protection: Positive Temperature Coefficient (PTC) Thermistor is built into the cap by request

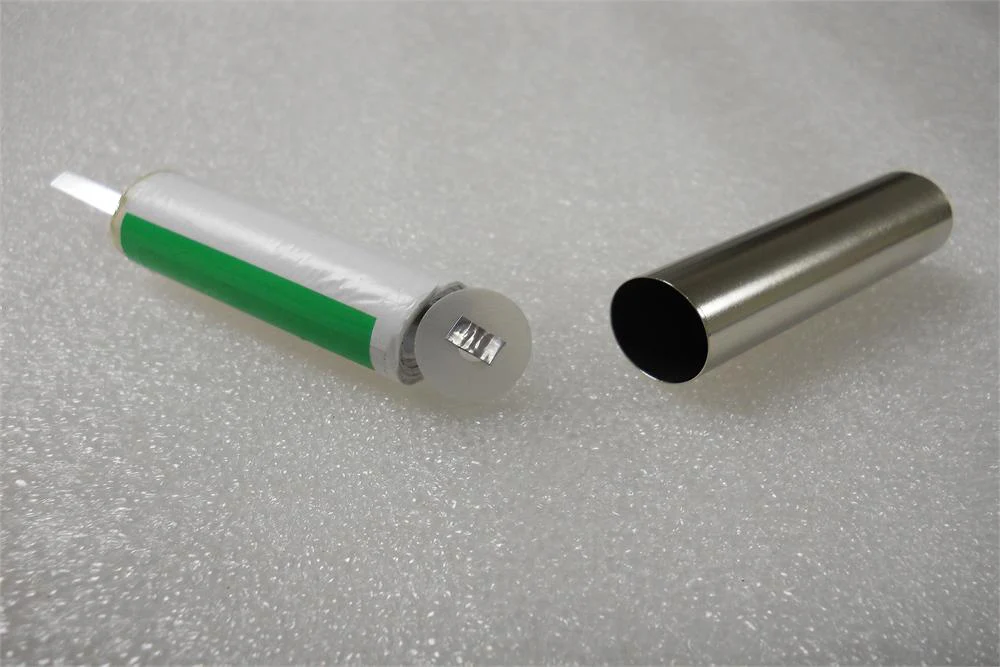

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

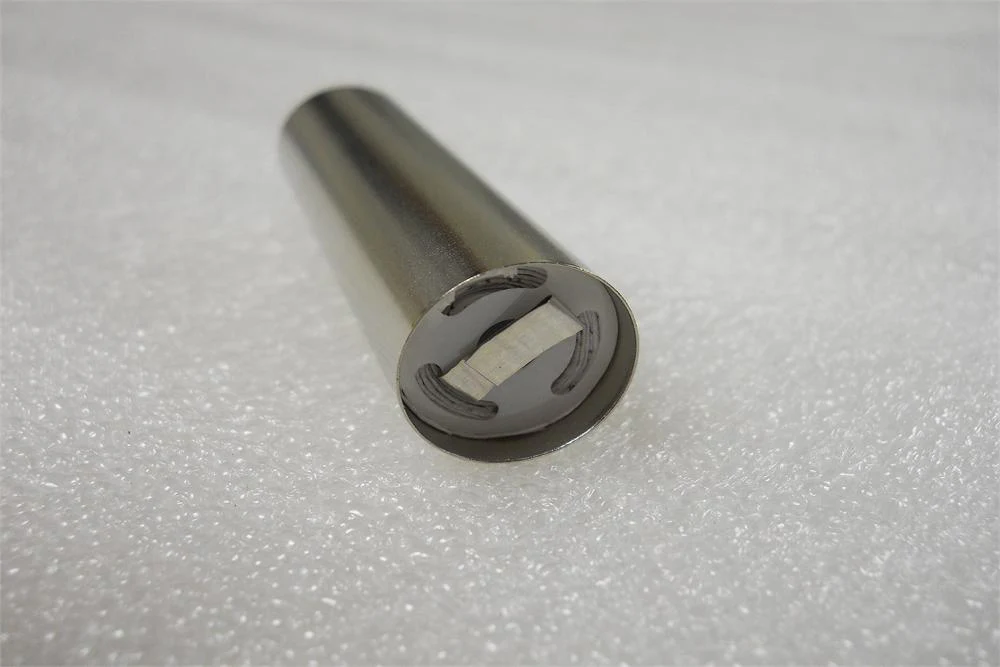

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

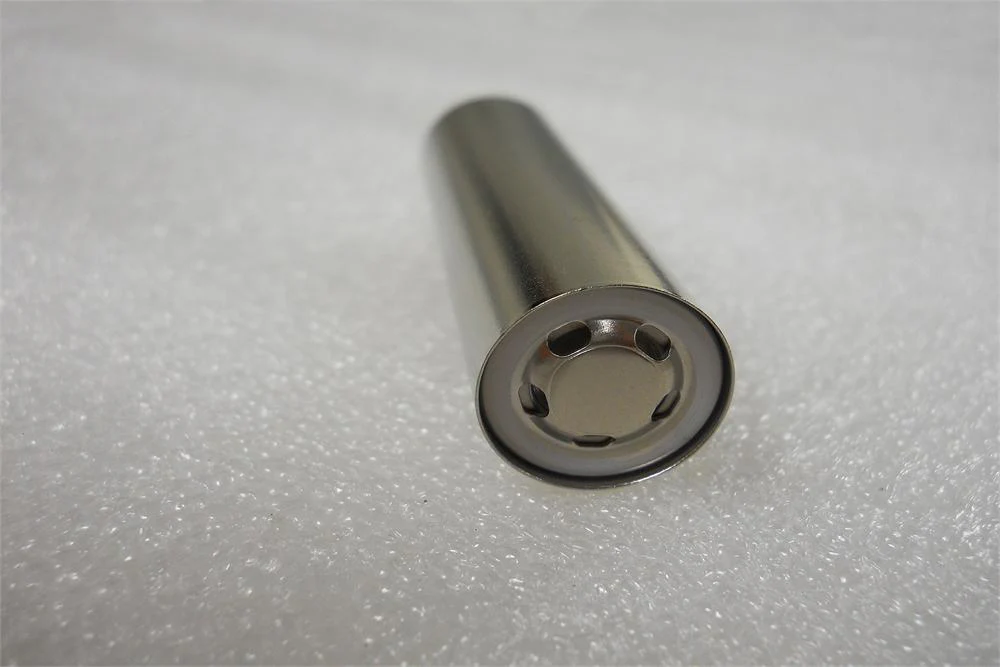

AA Size (14500 ) Cyliner Cell Case with Anti-Explosive Cap (Built-in PTC) & Insulation O-ring - 100 Pcs/package - EQ-Lib-AA - Image 5
