5 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump and Water chiller - MSK-SFM-5L

5 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump and Water chiller - MSK-SFM-5L

$29,980.00
5 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump and Water chiller - MSK-SFM-5L—
$29,980.00

The Story

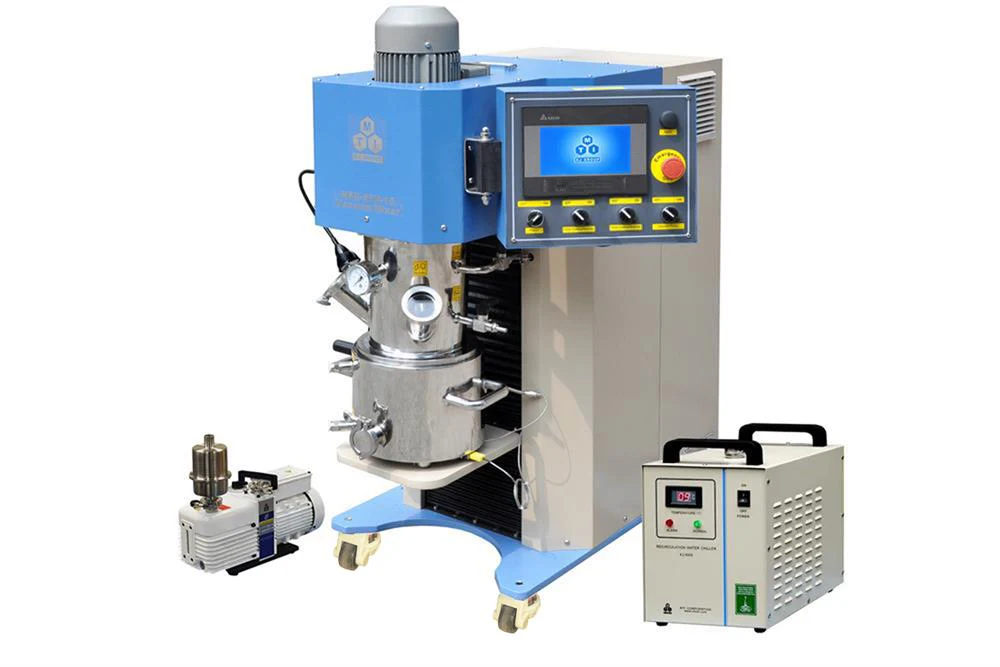

MSK-SFM-5L is a CE Certified Vacuum Planetary Mixer with 5 liters containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.
A temperature-controlled water circulator is included to make containers working at the temperature range from 50ºC to 35ºC directly and a water cold stainless steel tank can promise high efficiency in mixing. MSK-SFM-5L is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.

SPECIFICATIONS
Power Supply
  • Single-phase, AC 208 - 240V 50/60Hz, single phase
  • Total power: 2.5kW
  • 220V AC Power plug is not included. Please click here to order the plug)
Revolution Speed
  • Stirring speed: 0 - 112 rpm, motor: 2.2kW
  • Dispersing speed: 0 - 2900 rpm, motor: 1.5kW
Vacuum
  • The vacuum pump: 0.37kW
  • The vacuum degree: -0.098MPa
Lift Motor Lifting Motor is a built-in ( 370W)
Bucket
  • Dimensions:
    • Inside: Dia.195mm * H.205mm
    • Outside: Dia.265mm * H.260mm
  • Capacity: 5 Liter
  • Water cooling jacket
  • Temperature monitors and over-temperature alarm
Beater
  • Space between beater and bottom: 2-4 mm
  • Space between beater and bucket wall: 2-5mm
  • Space between two beaters: 3-8mm
  • Made of SS 304

Water Recirculating Chiller


 One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - EQ-KJ5000-220 included


Connected Accessories & Fittings
  • DN50 feed hole
  • Three-piece type ball valve outlet
  • Two DN50 sight glasses
  • One G1/2" vacuum connector with a vacuum pump
  • One G1/2" air outlet
  • One vacuum meter
  • 12mm O.D. water inlet and outlet fittings
Control Panel Digital Touch Screen for efficient adjustments
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost
Operation Video


Application Note A heated container with a digital temperature controller up to 190oC is available at the extra cost

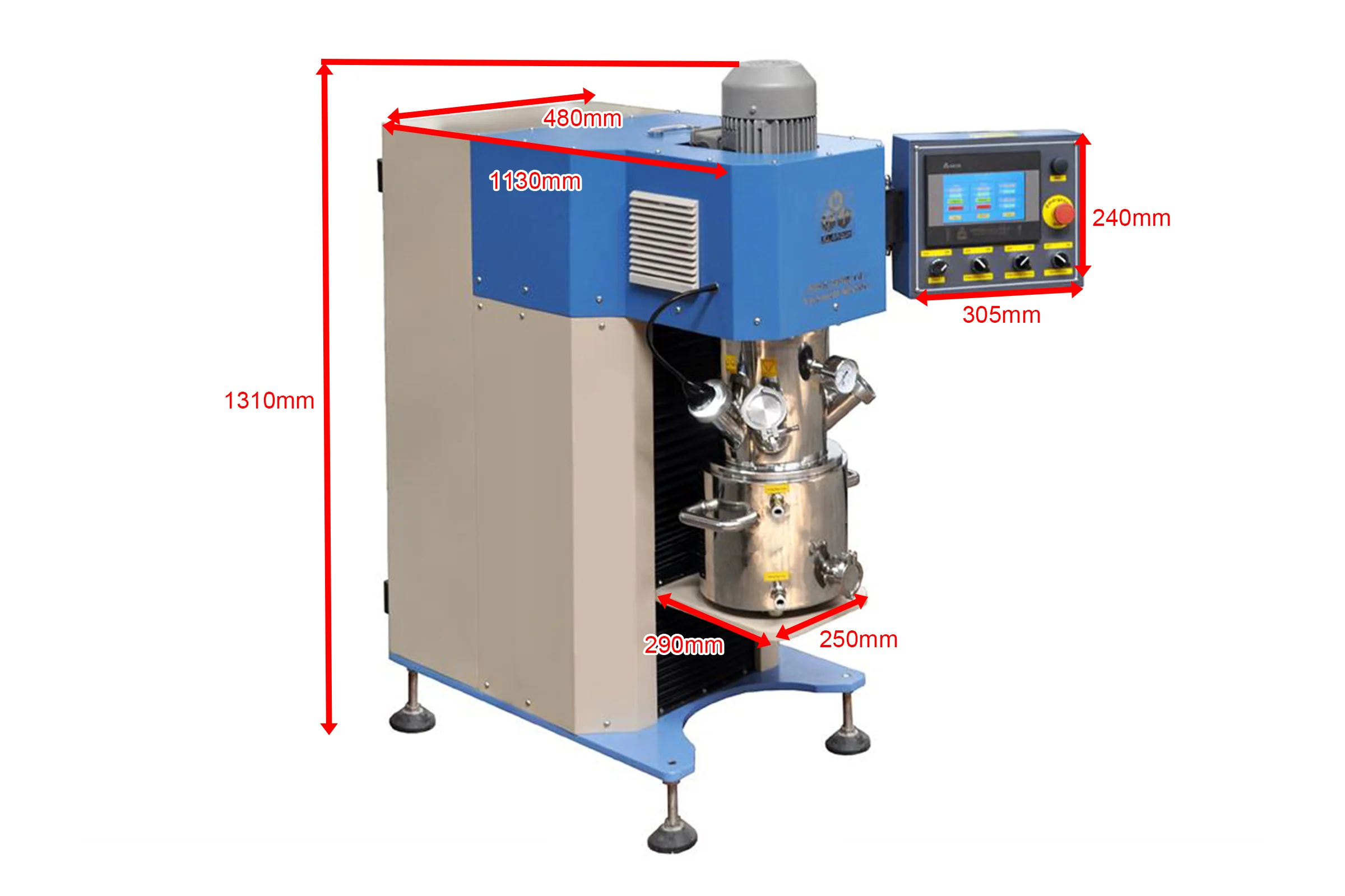

5 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump and Water chiller - MSK-SFM-5L - Image 2
