X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1

The MSK-USP-ST1 is a precise CNC sample stage. By using the CNC control system user can manipulate the movement of X and Y-axis. Speed adjustment is from 0.01mm/min to 40mm/min. The travel area is 8" (X-axis) x 4" (Y-axis). It is designed for DIY a low-cost Ultrasonic spray or electrospray coating system.

Voltage	110/220V  50/60Hz  <100W
Minimum Pressure	0.275MPa
Working Environment	Temperature <42; Humidity ≤40%RH
Working Stage	Electrical control: X&Y Axis Manual control: Z-Axis
Ranges	X-Axis: 200mm    (CNC-controlled ) Y-Axis: 100mm  (CNC Controlled ) Z-Axis: 50mm ( Manually )
MAX. Weight Carry	10 lbs.
Control Box	Digital Display and touch button to program
Optional Sample stage	Please email us to order the Optional glass plate as a sample stage.

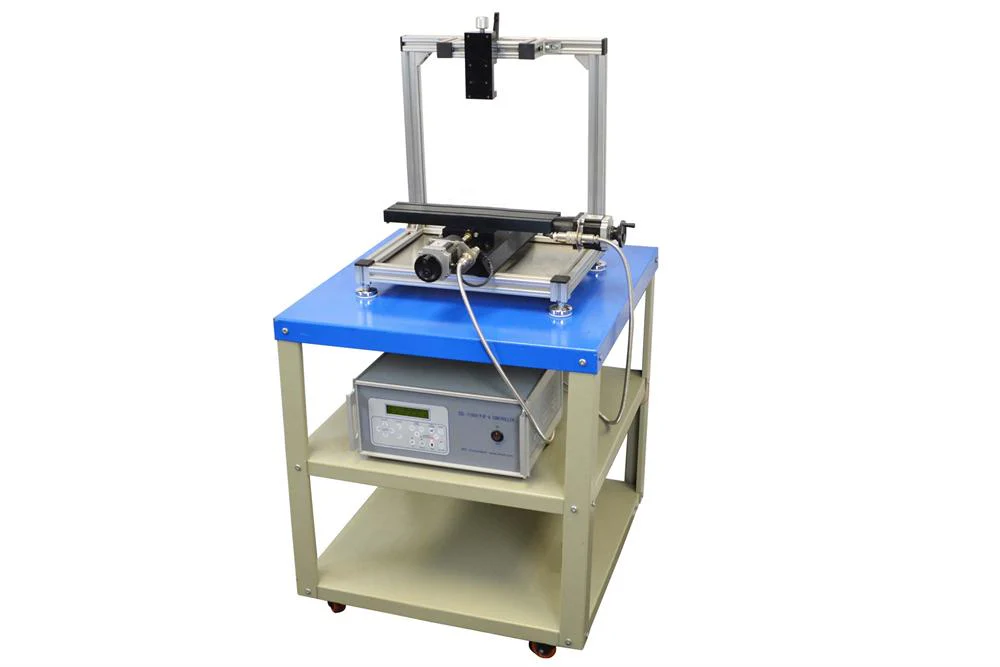

Optional ( click pic.to order)	Add a Digital Syringe Pump and Ultrasonic Spray Nozzle with Power Controller	Add a Heating plate with a Syringe Pump and Ultrasonic Spray Nozzle					Add a Heating Syringe Pump and Hi-Voltage Power supply ( click picture to order )
Application Notes	Please be aware of the syringe pump and other accessories in the video are not included in the stand package. Please be aware that the DIY page is for showing DIY ideas. The equipment listed on the DIY page is NOT naturally compatible with each other. Please email us first to order a customized adaptor, the separate order would not fit.
Compliance	CE certified
