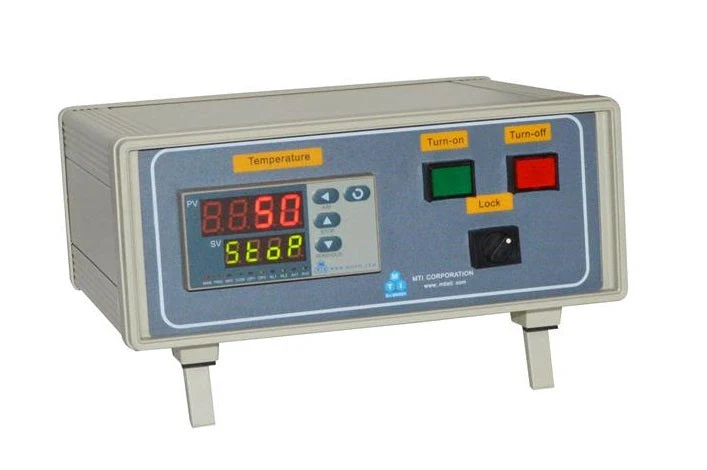

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC4C

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC4C

Select Max.Power & Voltage
From $798.00
Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC4C—
$798.00

The Story

  • WK518P temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500 oC with heating elements of resistant wire or SiC.
  • Just by connecting the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SSR power control with 30 segments programmable.
  • Built-in "auto-tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built-in Protection to cut off power for over-temperature.

Specifications:

 Model MTC-C4-2000
 Input & Output
 Voltage		 Input power 110V AC / Output power 110V 10A max
OR
Input power 220V AC / Output power 220V 7A max
 Max. Power 2000 W
 Thermo Couple Accepted

J, K, T, E, N, B, R, S,( thermo-couple is not included)

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502 oF (-200 to 1372 oC)
  • T range: -328 to 752 oF (-200 to 400 oC)
  • E range: -328 to 1832 oF (-200 to 1000 oC)
  • N range: -328 to 2372 oF (-200 to 1300 oC)
  • B range: 392 to 3272 oF (200 to 1800 oC)
  • R range: 32 to 3214 oF (0 to 1768 oC)
  • S range: 32 to 3214 oF (0 to 1768 oC)
  • Please click the picture below to order a thermal couple
  • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
Temperature Control
  • The controller uses PID via SSR power control
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • Control accuracy +/-1.0 oC
Back View
Certificate CE recognized
Operation Instructions
  • Please click the link of How to use MTI furnace controller
 Note This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500oC



Standard Package for EQ-MTC-C4-2000
P/N Description Quantity  Pic & Link
PLUG-4732-M Male CONN PLUG STRAIGHT ENTRY for Connecting Heating Element 1
Power Cord 110V / (220V without plug) 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1

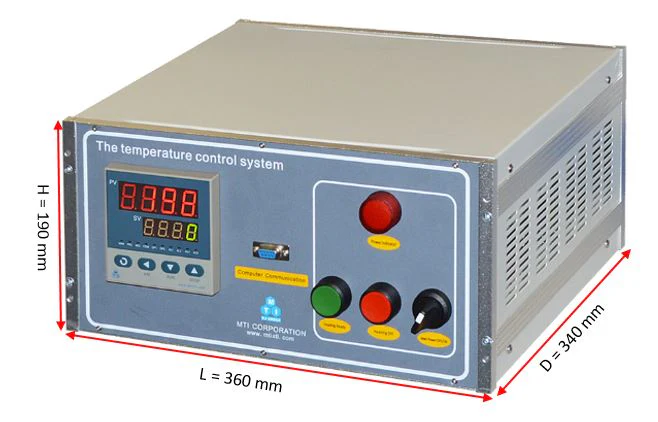

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC4C - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Temperature Control Unit (PWM) with 30 Programmable Segments Optional 2- 5KW - MTC4C - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

  • WK518P temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500 oC with heating elements of resistant wire or SiC.
  • Just by connecting the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SSR power control with 30 segments programmable.
  • Built-in "auto-tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built-in Protection to cut off power for over-temperature.

Specifications:

 Model MTC-C4-2000
 Input & Output
 Voltage		 Input power 110V AC / Output power 110V 10A max
OR
Input power 220V AC / Output power 220V 7A max
 Max. Power 2000 W
 Thermo Couple Accepted

J, K, T, E, N, B, R, S,( thermo-couple is not included)

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502 oF (-200 to 1372 oC)
  • T range: -328 to 752 oF (-200 to 400 oC)
  • E range: -328 to 1832 oF (-200 to 1000 oC)
  • N range: -328 to 2372 oF (-200 to 1300 oC)
  • B range: 392 to 3272 oF (200 to 1800 oC)
  • R range: 32 to 3214 oF (0 to 1768 oC)
  • S range: 32 to 3214 oF (0 to 1768 oC)
  • Please click the picture below to order a thermal couple
  • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
Temperature Control
  • The controller uses PID via SSR power control
  • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
  • Control accuracy +/-1.0 oC
Back View
Certificate CE recognized
Operation Instructions
  • Please click the link of How to use MTI furnace controller
 Note This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500oC



Standard Package for EQ-MTC-C4-2000
P/N Description Quantity  Pic & Link
PLUG-4732-M Male CONN PLUG STRAIGHT ENTRY for Connecting Heating Element 1
Power Cord 110V / (220V without plug) 1
MTI-ECCT Thermocouple Connector for Connecting thermocouple 1
