The Story

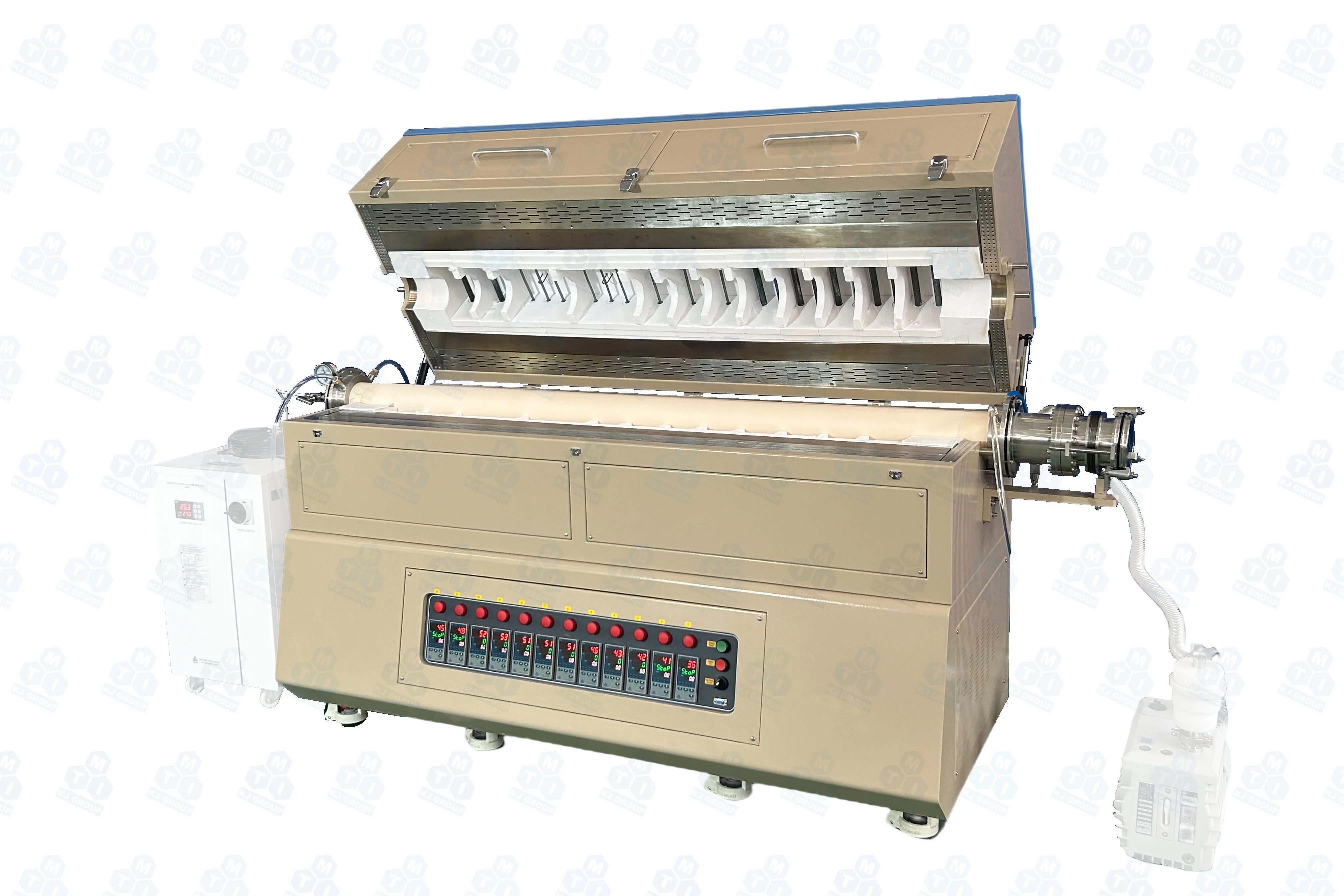

OTF-1700X-12Z is a 12-zone split tube furnace up to 1700°C It is a perfect tool to precisely control and build variable temperature gradients along the entire heating area to simulate reactive kinetics and mechanism in a lab scale.

Features
  1. Temperature up to 1700°C
  2. Heating length 1400 mm
  3. 12 heating zones, 12 individual PID temperature controllers.
  4. Ø100 mm × 1800 mm alumina tube
Specifications:
Power
  • 480VAC, 3phase, 50/60 Hz
  • 60 KVA
  • Power cable is included for hard wiring.
Furnace Case
  • Double-layer mild steel case with cooling fans.
  • Surface temperature < 70°C

Heating Zones
  • 12 independent heating zones
  • Total heating zone length of 1400 mm
    • Zone 1-5, SiC heating elements, 100 mm each, up to 1500°C
    • Zone 6-8, MoSi2 heating elements, 100 mm each, up to 1700°C
    • Zone 9-10, MoSi2 heating elements, 200 mm each, up to 1700°C
    • Zone 11-12, SiC heating elements, 100 mm each, up to 1500°C
Thermocouples
  • Type S thermocouple for Zone 1-5, 11-12
  • Type B thermocouple for Zone 6-10

Temperature Controller
  • 12 PID programmable temperature controllers
  • 50 temperature segments
  • Overheating and broken thermocouple interlock/alarm.
  • ±1°C control accuracy
  • 0.3°C temperature resolution
  • RS485 serial port with LabVIEW-based software
Processing Tube
  • Ø100 × Ø90 × 1800 mm alumina tube
  • Up to 1700°C under ambient pressure
  • Up to 1450°C under vacuum



Flanges
  • Stainless steel 304 water-cooled flange
  • 1/4" tube gas inlet
  • -0.1 - 0.5 MPa diaphragm pressure gauge
  • KF25 vacuum port
  • DN100CF or ISO100K service port
  • (Optional) Port aligner
Chilled Water
  • 5 - 35°C, 10 L/min, 10 psi chilled water is required.
  • MTI recommend using KJ5000 water chiller
Pressure
  • < 3 psig
  • <3e-2 torr with a vacuum pump
Vacuum (Optional)
  • Vacuum pump is recommended to evacuate residual air in the tube.
  • Recommended vacuum pump
    • 240 L/min rotary vane pump (oil pump)
    • 200 L/min scroll pump           (dry pump)
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Net Weight
  • 660 kg
Application Notes
  • 3-day 2-engineer on-site installation is required.



1700°C 12-zone Split Tube Furnace with a Ø100 mm × 1800 mm L Alumina Tube - OTF1700X12Z - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1700°C 12-zone Split Tube Furnace with a Ø100 mm × 1800 mm L Alumina Tube - OTF1700X12Z - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1700°C 12-zone Split Tube Furnace with a Ø100 mm × 1800 mm L Alumina Tube - OTF1700X12Z - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

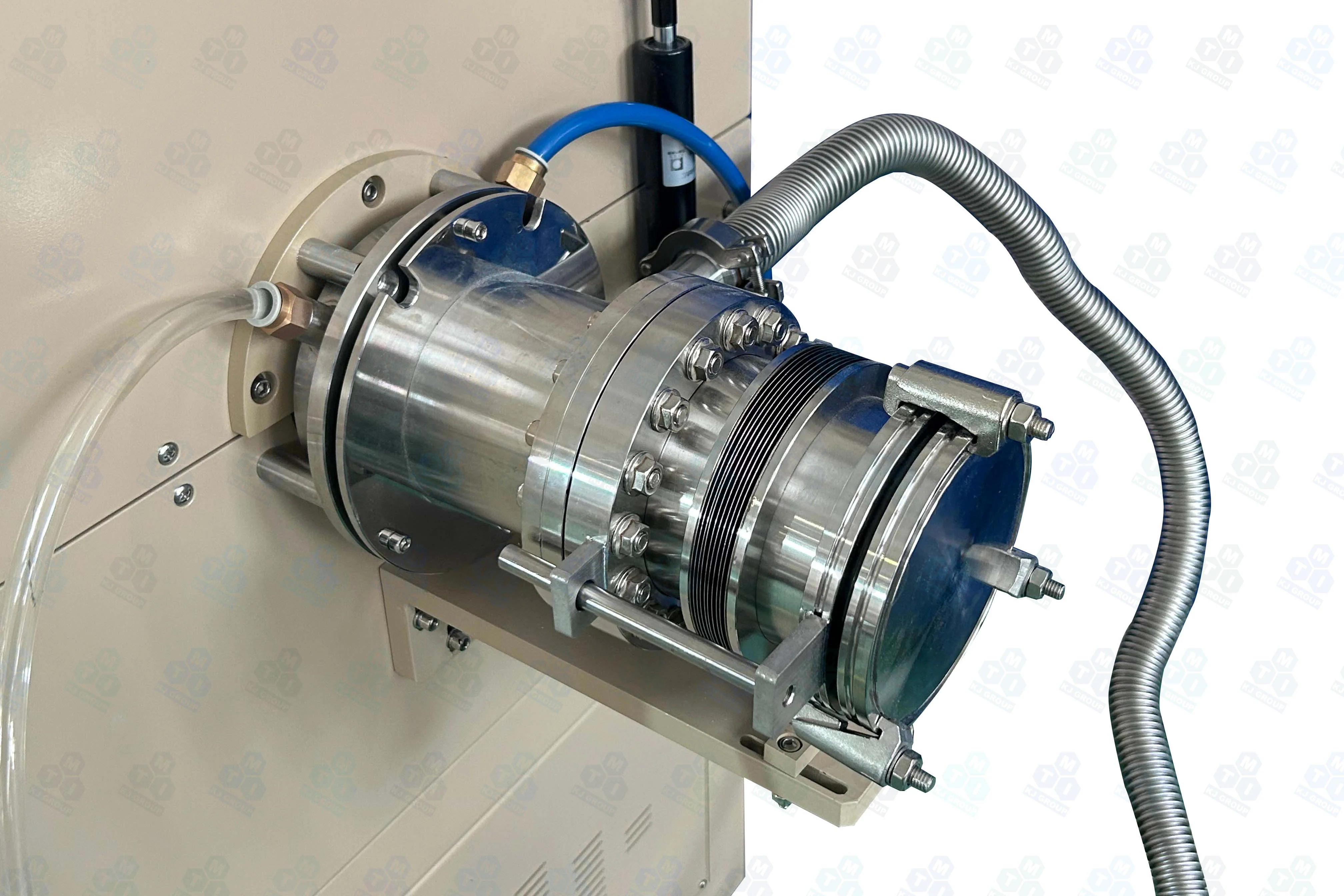

1700°C 12-zone Split Tube Furnace with a Ø100 mm × 1800 mm L Alumina Tube - OTF1700X12Z - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

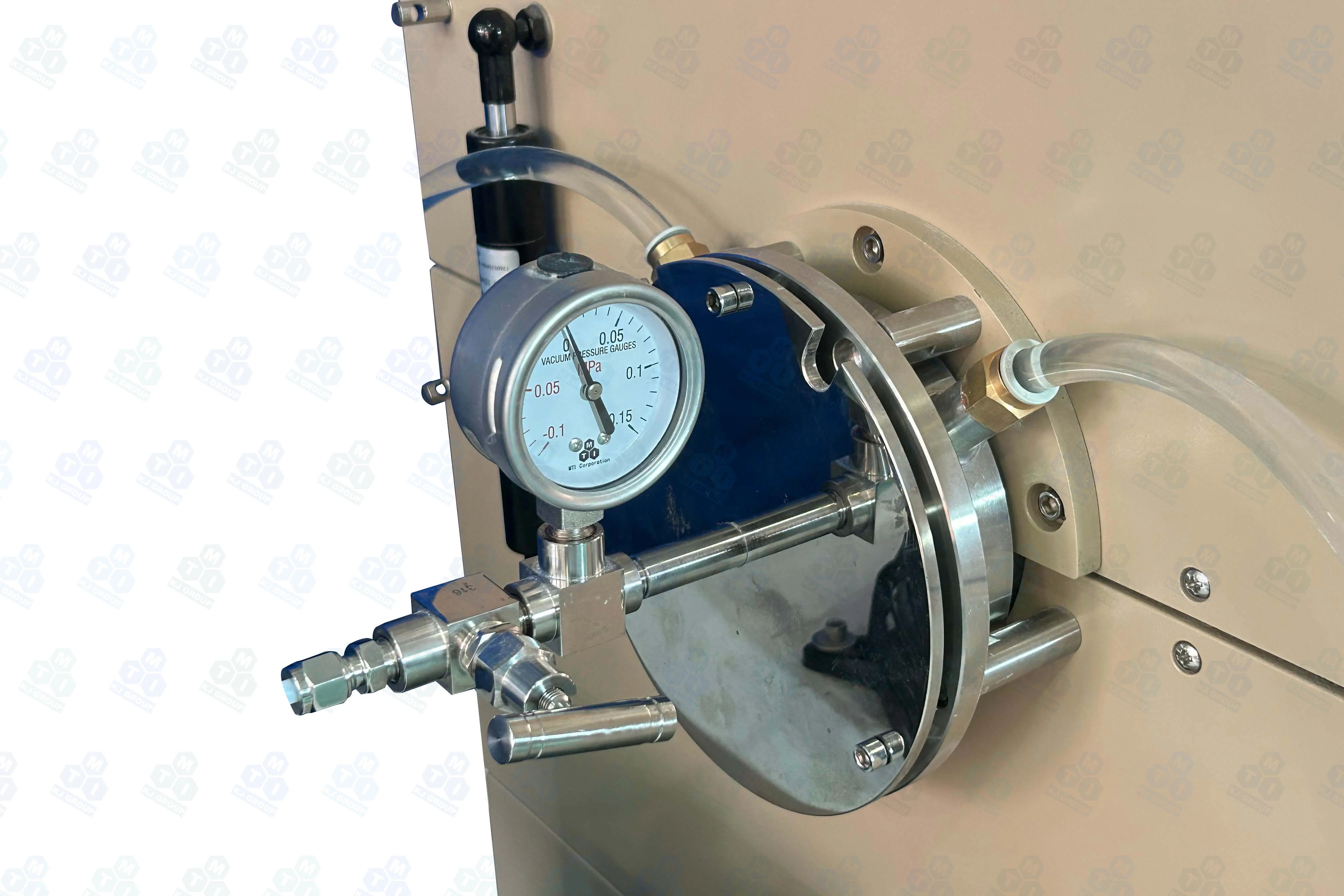

1700°C 12-zone Split Tube Furnace with a Ø100 mm × 1800 mm L Alumina Tube - OTF1700X12Z - Image 6
