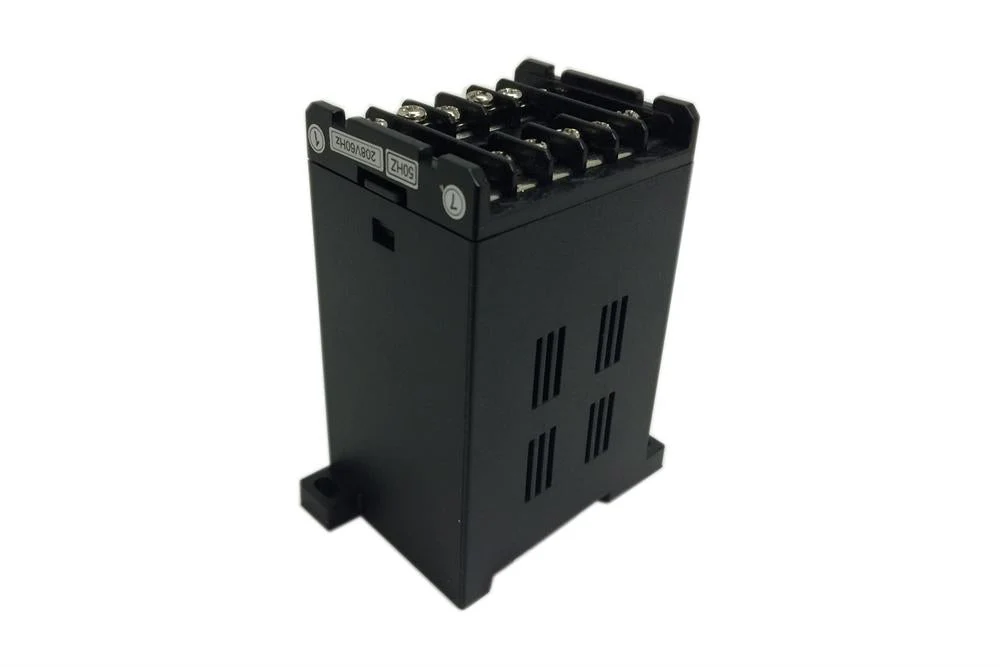

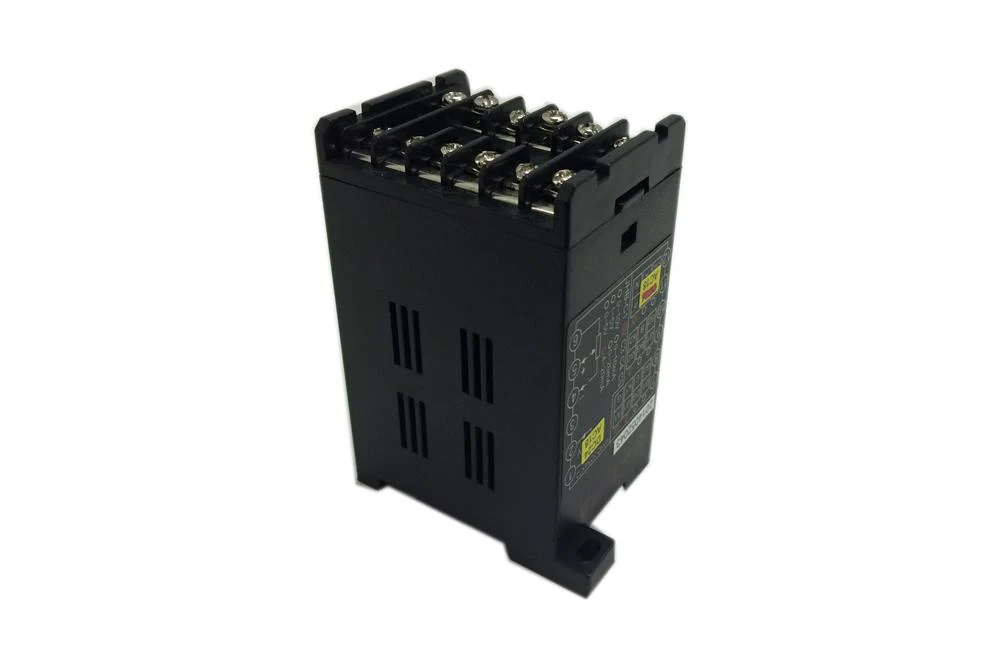

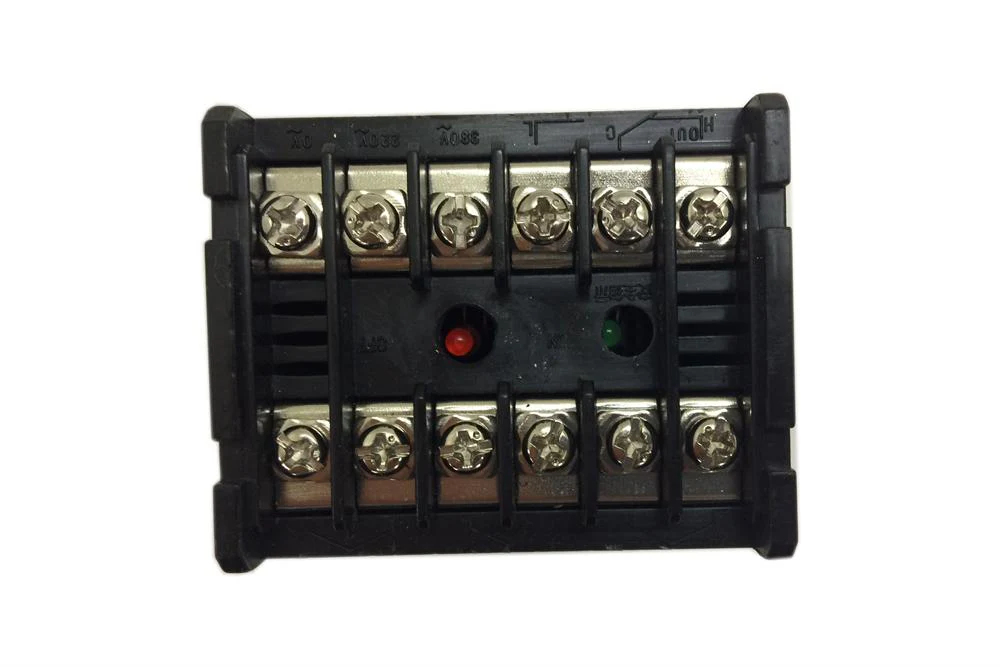

-65%Phase Angle Trigger Module,MTI-JHB-C1/C2—
$99.95
$34.98The Story
The Phase Angle Trigger Module MTI-JHB-C1 and MTI-JHB-C2 can be used in high-precision control systems that require smooth and continuous adjustments on voltage/current. The modules integrate the technology of synchronousness and so synchronous transformer is not required.
Specification:
- Not For Sale Replacement Part
- Replacement Parts sold are not refundable, returnable or exchangeable.
Specification:
| Item Category |
MTI-JHB-C2-AC18V 50/60 HZ General Purpose (New UL furnace) |
MTI-JHB-C1-50HZ or MTI-JHB-C1-60HZ 50Hz or 60Hz (Please select in the options bar) |
MTI-JHB-C2-50HZ or MTI-JHB-C2-60HZ 50Hz or 60Hz (Please select in the options bar) |
||||||||||||||||||||
| Connection |  |
 |
|||||||||||||||||||||
When Input 0-10 Ma, the resistance: 500 ohm
|
|||||||||||||||||||||||
 |
 |
||||||||||||||||||||||
| Control voltage: | 0-5V | ||||||||||||||||||||||
| Supply Voltage | AC 18V | 65~264V | 65~264V | ||||||||||||||||||||
| For old model furnace, it is recommended to buy with Option SCR |
|
SCR for C1 Trigger must be changed with SCR
|
|
||||||||||||||||||||
| Troubleshooting | Problem: Furnace No longer heats up, front panel indicating power to the elements no longer lights up. | Solution: Please always check input power, heating elements, the temperature controller output voltage and the AC contractor suction first. |
|||||||||||||||||||||
| Problem: The LED on the box does not light up when the program is being run. | Solution: Replace the Phase Angle Trigger Module | ||||||||||||||||||||||
| Purchase Notes: | Please make sure the specification of the product meets your need before making a purchase. Since Nov 10, 2016, we no longer accept return delivery. Products are not refundable, not exchangeable, nor covered under the warranty (Consumables). We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us. | ||||||||||||||||||||||
| Frequency | Please select the Frequency menu | ||||||||||||||||||||||
| Dimension |  87mm x 55mm x 45mm |
||||||||||||||||||||||
| Compliance | CE | ||||||||||||||||||||||
