Quartz Tube Nozzle (6 mm Dia.) for Atomizing Spray up to 1100°C - TQ6D-SP

TQ6D-SP Series are atomizing spray nozzles made of a quartz tube with max. working temperature 1100ºC. The tube diameter is 6 mm, which can feed through 1/4" fitting into a furnace. It is an ideal tool for DIY of pyrolysis spraying or particle granulation devices for high temperatures.

SPECIFICATIONS

Features	Made of the high purity of quartz tube with compressive gas inlet and liquid inlet 4 mm OD liquid inlet port  with plastic fitting and  PTEF tube ( 1.3mm OD x 0.3 mm ID x 880 mm L)  4 mm OD gas inlet  which can pass 0.2 MPa Max pressure to deliver liquid atomizing without pump  (~ 4mm ID rubber tube and clamp are required) Well packed in a box for safe delivery and storage
Atomizing Nozzle	Spray nozzle diameter:       0.3 mm Max. working temperature: 1100ºC Max. working pressure:       0.2 MPa Atomizing injection rate:      Dependedn on gas pressure or control by syringe pump as the below

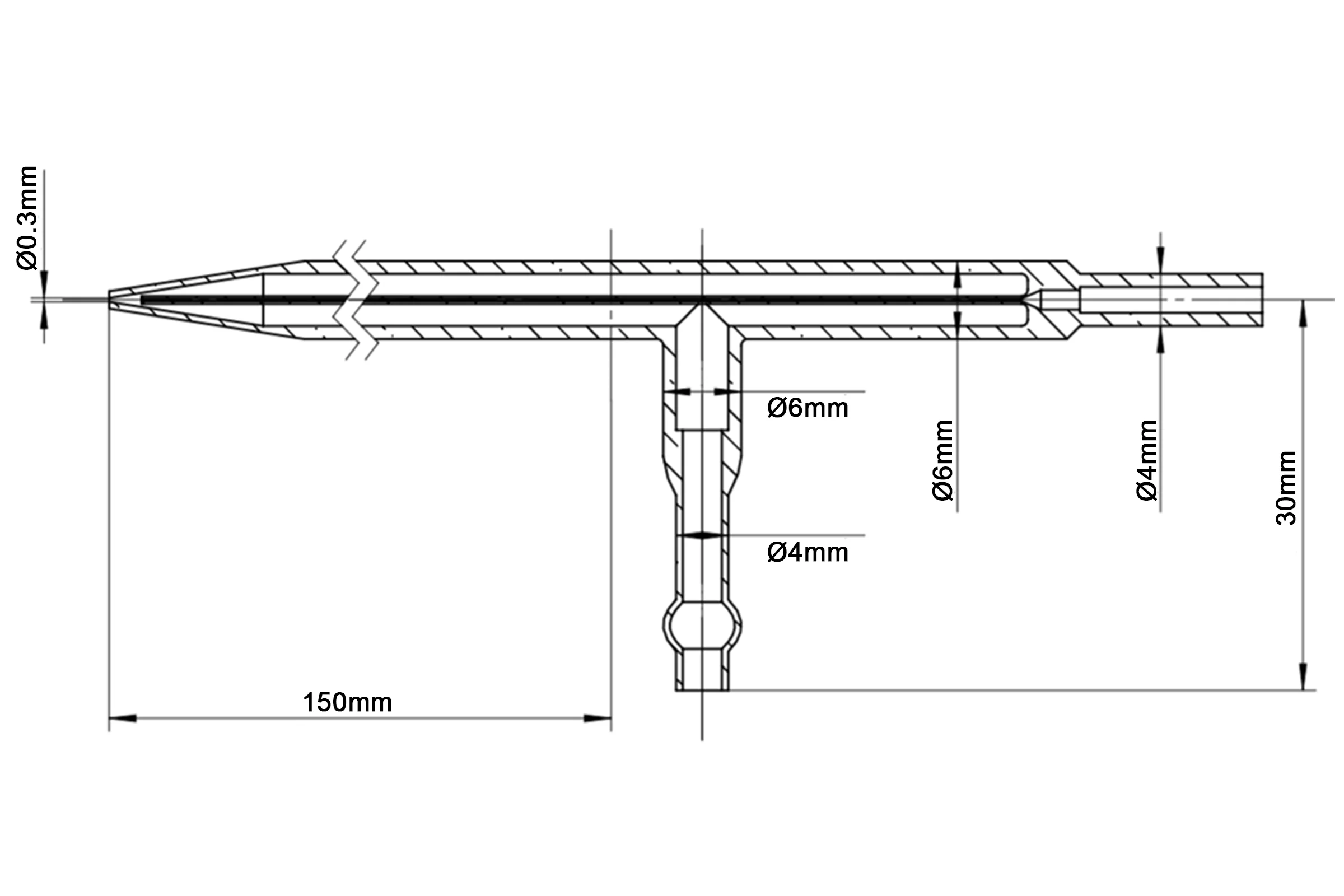

Dimension	Standard size: 40 mm length  Optional:   150mm L and 280 mm L Please choose from the product option
Optional	1/4" fitting Water cold flange Bubbler for liquid
Operation Video	40 mm L nozzle        280 mm L nozzle
