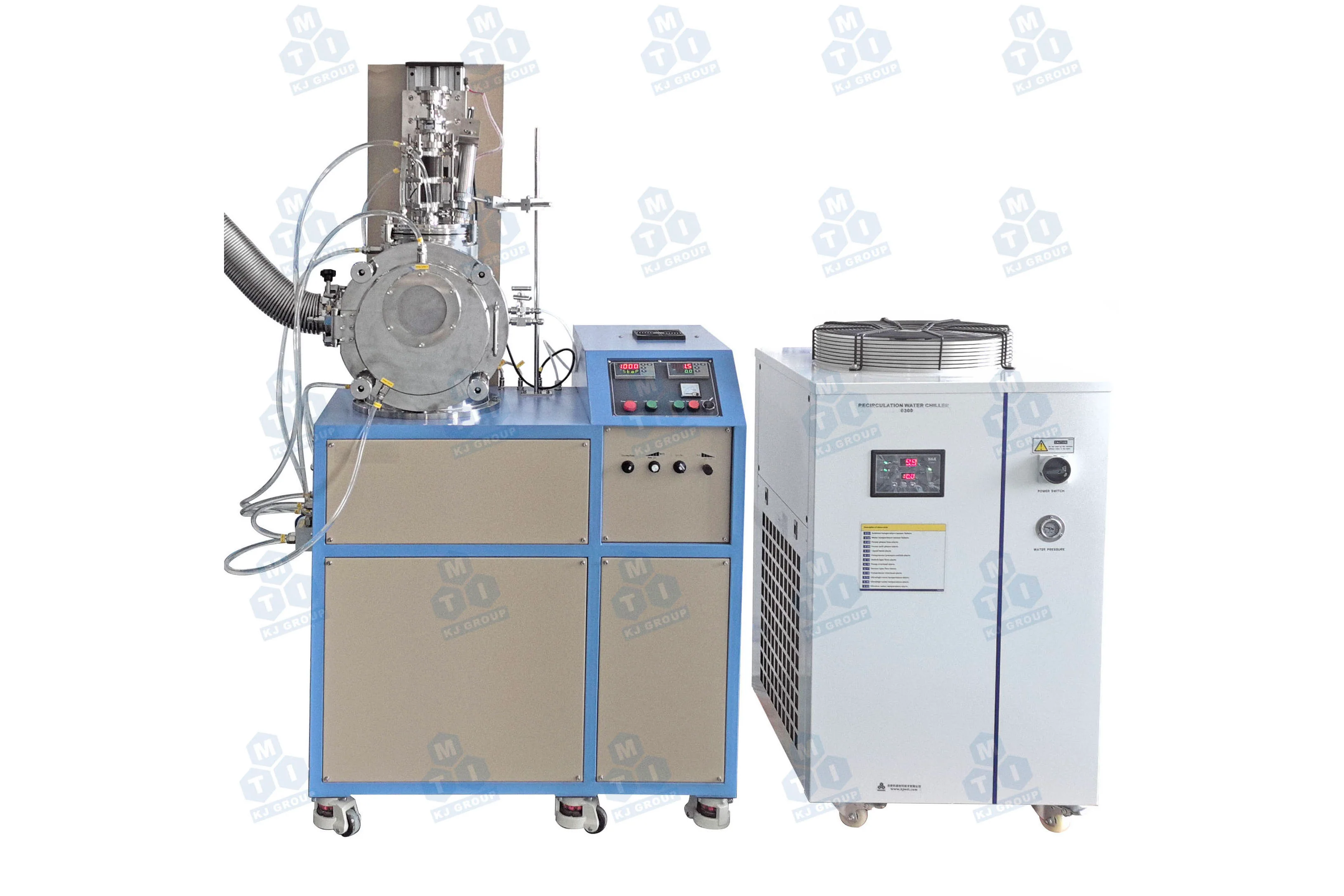

2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS

2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS

$59,998.00
2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS—
$59,998.00

The Story

RTP-MS is an Ultrafast Heating and Pressing Furnace (UHP or Flash Sintering) with a heating speed of up to 180°C/s, 2900°C, and 100 kg Load inside a high vacuum chamber made of stainless steel. The furnace may replace SPS for a small sample at a low cost.

Features

  • Stainless steel high vacuum chamber with water cooling jacket
  • Flash sintering up to 180°C/s and 2900 °C
  • Pressure for sample pressing up to 100 kgf
  • Infrared pyrometer for temperature control

SPECIFICATIONS:

Power
  • Input: 480 or 400 VAC, 50/60Hz, 3-phase
  • 30 KW
  • Output: <30 VDC and <1700 A
Graphite Heater
Tungsten Heater (Optional)
Working Temperatures
  • Working Temperature: <2900 °C
  • Max. Heating Rate: <180 °C/ s
  • Working time
  • Temperature (°C) 2900 2800 2700 2600 2500 2400 2300 2000 <2000
    Duration (min) <1 <5 <10 <20 <30 <40 <60 <120 Continuous
Pressing Pressure
  • A bellow-sealed screw pressing rod to apply 10 - 100 kg force on the sample (manual operation, standard)
    • Pressure may change as a function of temperature due to thermal expansion or contraction
  • Ceramic pressing buffer plates
  • Motorized screw pressing rod with PID constant pressure compensation (optional)
    • Pressure control accuracy ± 1 kg
  • If you don't need apply pressure, we can remove the function to reduce a little cost.
Temperature Control
  • A digital IR pyrometer made in Germany for temperature control through a Ø35 mm observation window
    • Temperature reading range 1000 - 3000 °C
    • Temperature accuracy ± (0.5% F.S. + 2 °C)
    • Temperature reproducibility ± 0.3% F.S.
  • Manual heating mode
    • Temperature is regulated manually by DC current
  • Auto heating mode
    • Temperature is regulated by a PID temperature controller
    • 30 programmable temperature segments
    • Accuracy ± 3 °C
Vacuum chamber
  • SS304 water-cooled vacuum chamber
  • Nominal dimensions Ø345 × Ø 315 × L380mm
  • Graphite felt thermal insulation set
  • Ø138 mm quartz observation window in the front
  • KF 40 vacuum port to connect to a vacuum pump
  • 1/4" gas inlet and outlet with valves
  • The digital vacuum gauge is included
  • Ultimate vacuum level
    • >1e-6 torr
Vacuum Pump (Optional)
  • 240 L/min mechanical vacuum pump
  • 260 L/s turbopump station
Water Chiller (Optional)
  • Water chiller is required but not included.
  • MTI recommends getting a KJ6200 recirculating water chiller or equivalent.
Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost.
Reference
  • How  to make an LLZTO solid electrolyte pellet

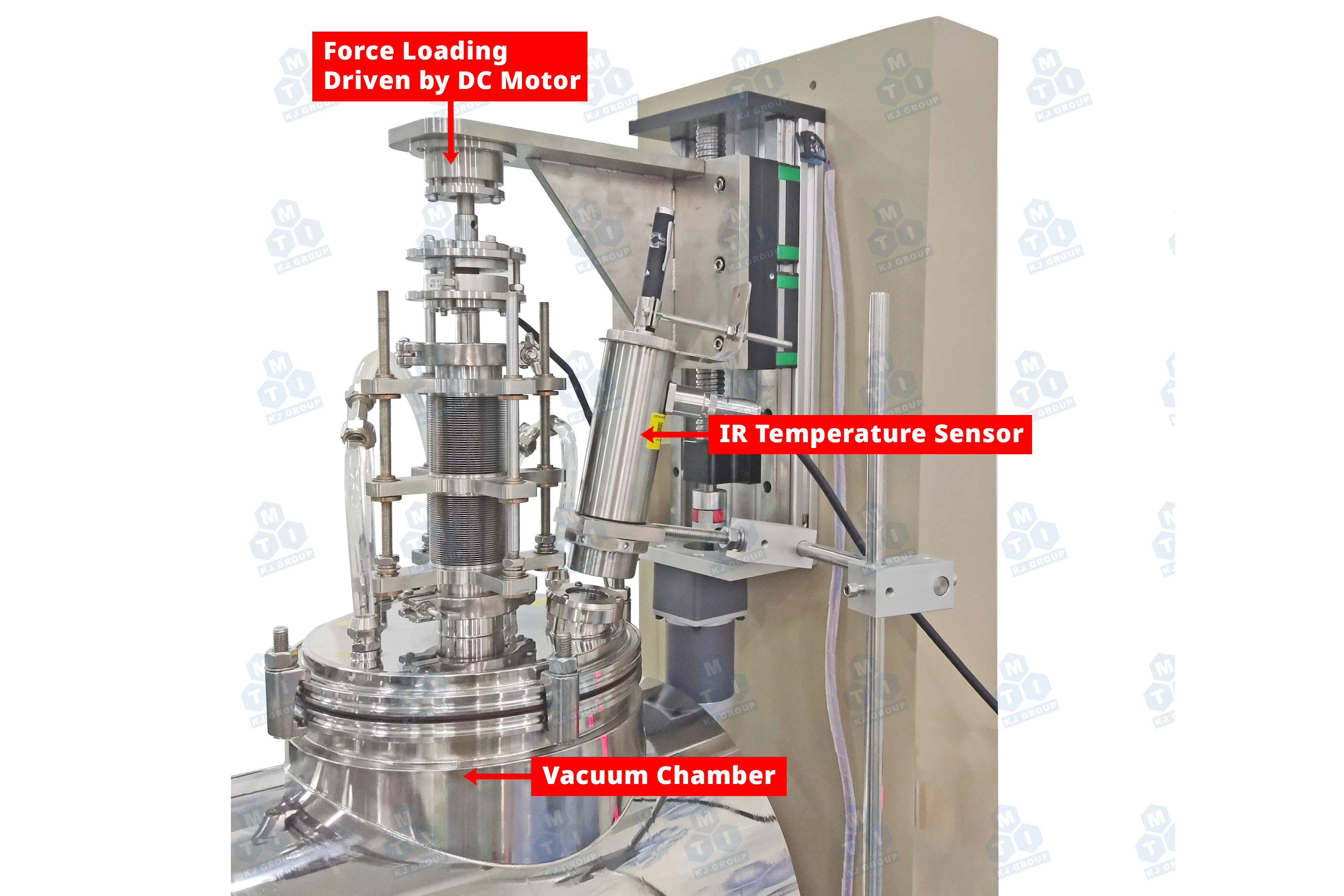

2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

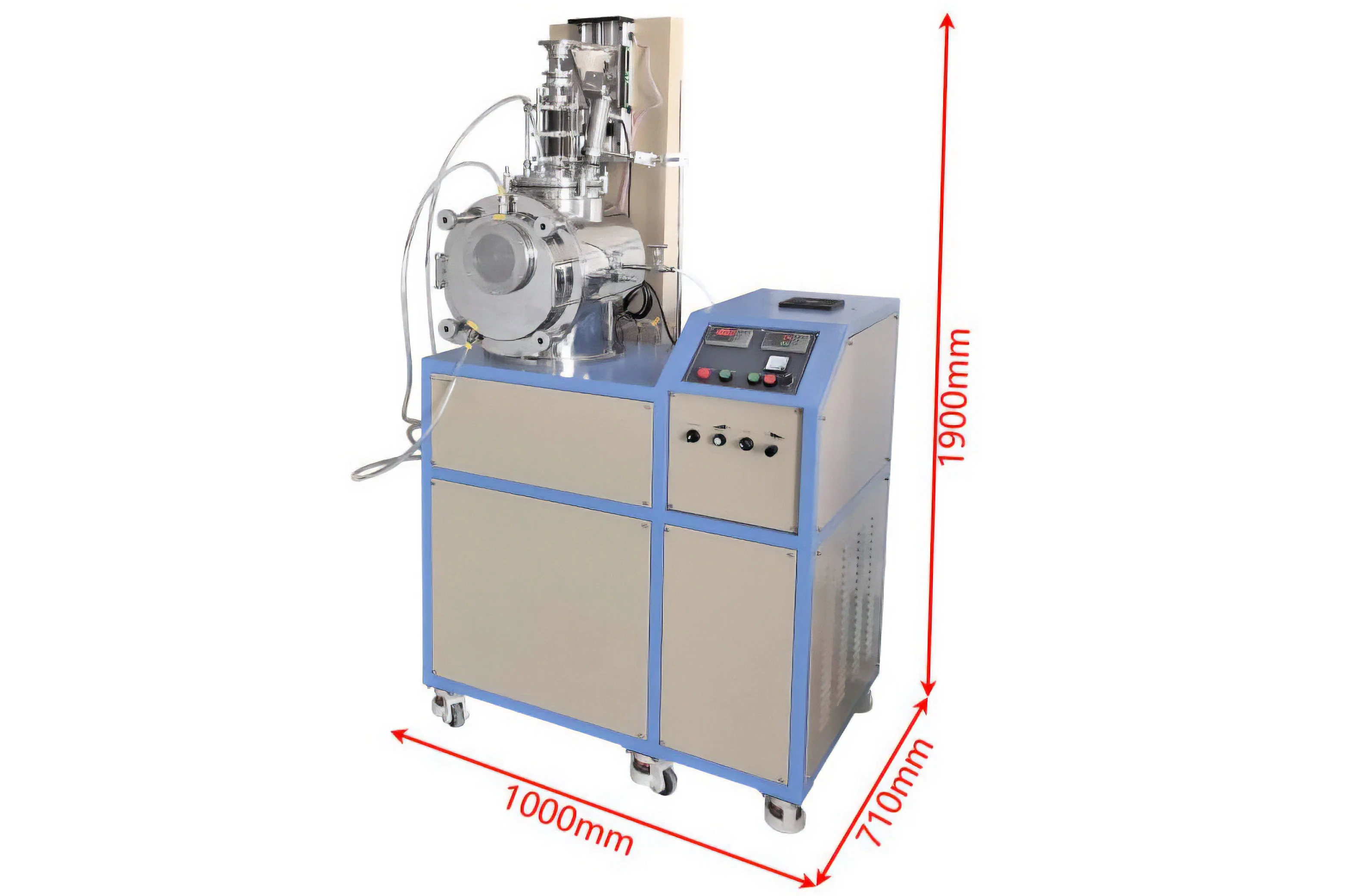

2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

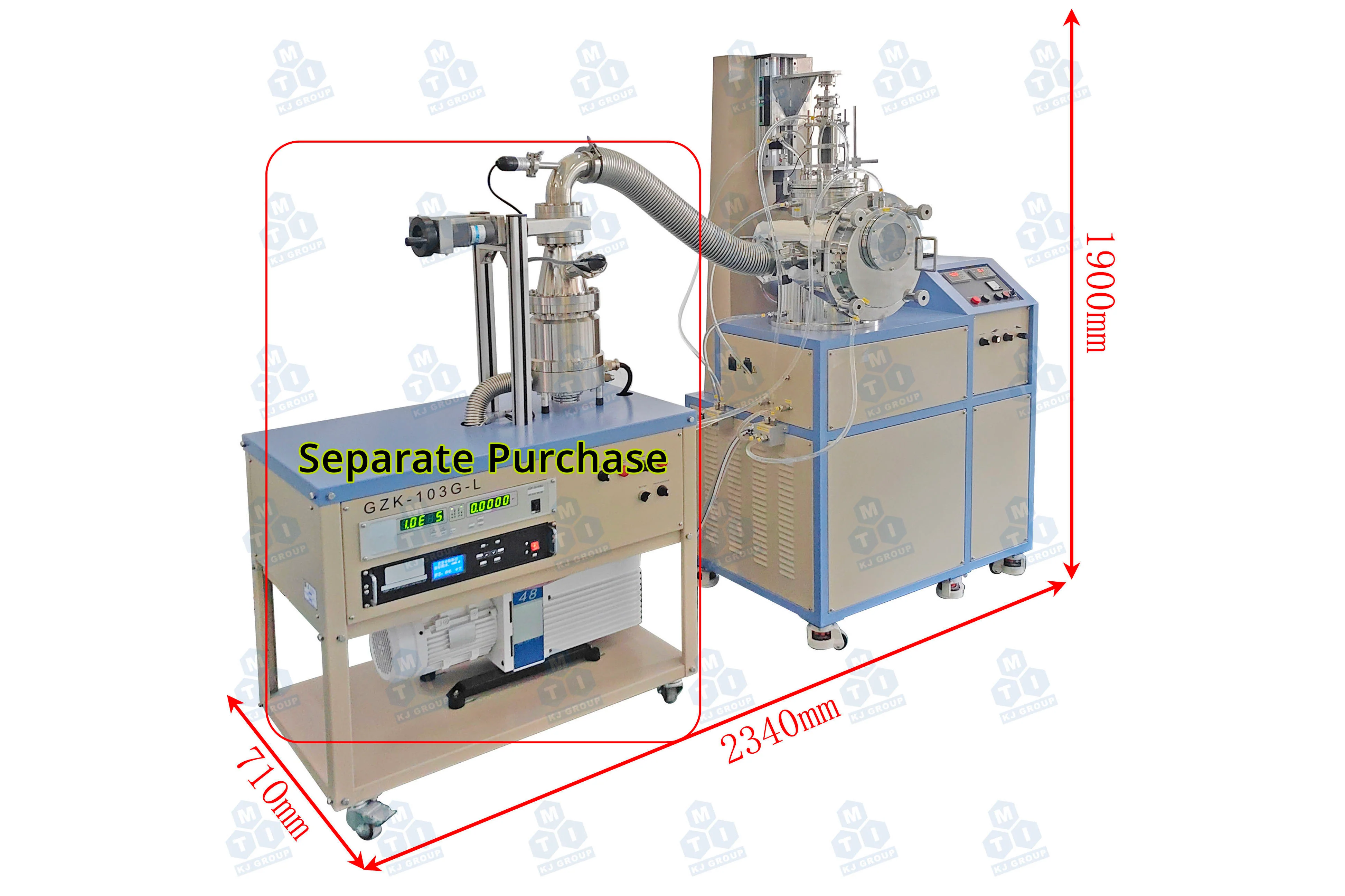

2900°C Max. Ultrafast Heating & Pressing Furnace (UHP or Flash Sintering，Joule Heating) up to 100 kgf - RTP-MS - Image 4
