250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD
HomeStore

250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD

250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD

$6,980.00
250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD—
$6,980.00

The Story

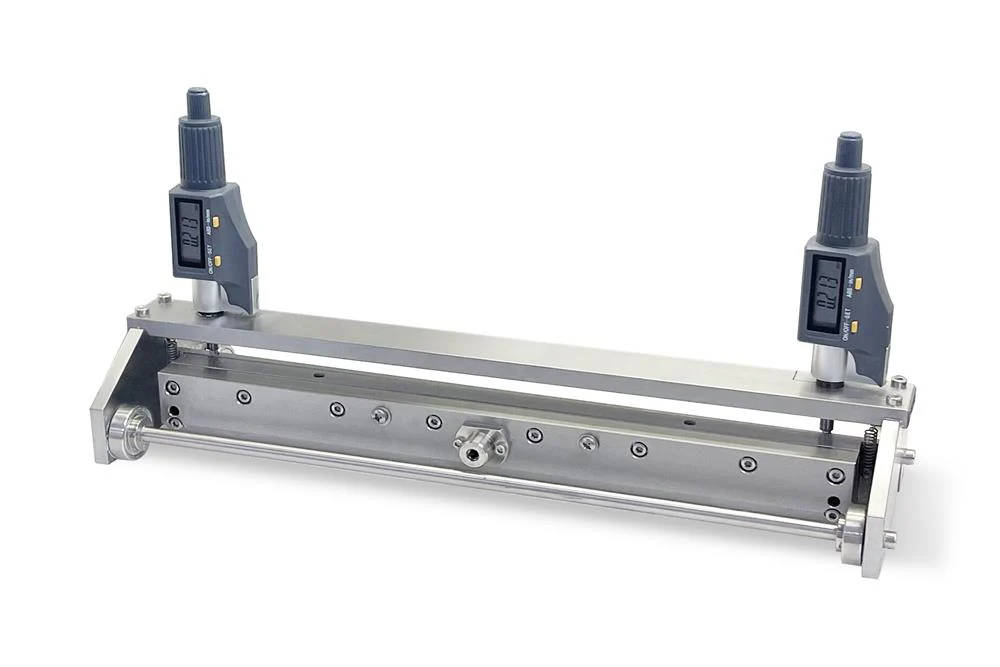

Se-KTQ-250SD is a 250 mm wide slot die coating unit with a rolling frame. The rollers greatly diminish the friction between the substrate and applicator and ensure the consistency of coating clearance.
The assembly also comes with two digital micrometers.

Structure
  • Touch-free coating experience
  • The 250 mm wide slot-die is bolted on a rolling stage with 3 or 4 wheels to reduce friction.
  • The coating clearance between the slot die and the substrate is adjustable with both accuracy and increment of +/- 1 micron via two digital micrometers.
  • 2 sets of stainless steel shims: 0.2mm, 0.3mm, and 0.4mm.

Application Note

In order to achieve the best coating, adjustment of suitable parameters including but not limited to slurry viscosity, slurry feeding speed, the gap between slot die and substrate, shim thickness, coating speed, drying temperature, etc.

Related Products
  • a > 400 mm wide flat-bed coater and a syringe pump are recommended.



250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

250 mm Wide Slot-die Film Applicator with Rollers-Se-KTQ-250SD - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Se-KTQ-250SD is a 250 mm wide slot die coating unit with a rolling frame. The rollers greatly diminish the friction between the substrate and applicator and ensure the consistency of coating clearance.
The assembly also comes with two digital micrometers.

Structure
  • Touch-free coating experience
  • The 250 mm wide slot-die is bolted on a rolling stage with 3 or 4 wheels to reduce friction.
  • The coating clearance between the slot die and the substrate is adjustable with both accuracy and increment of +/- 1 micron via two digital micrometers.
  • 2 sets of stainless steel shims: 0.2mm, 0.3mm, and 0.4mm.

Application Note

In order to achieve the best coating, adjustment of suitable parameters including but not limited to slurry viscosity, slurry feeding speed, the gap between slot die and substrate, shim thickness, coating speed, drying temperature, etc.

Related Products
  • a > 400 mm wide flat-bed coater and a syringe pump are recommended.
