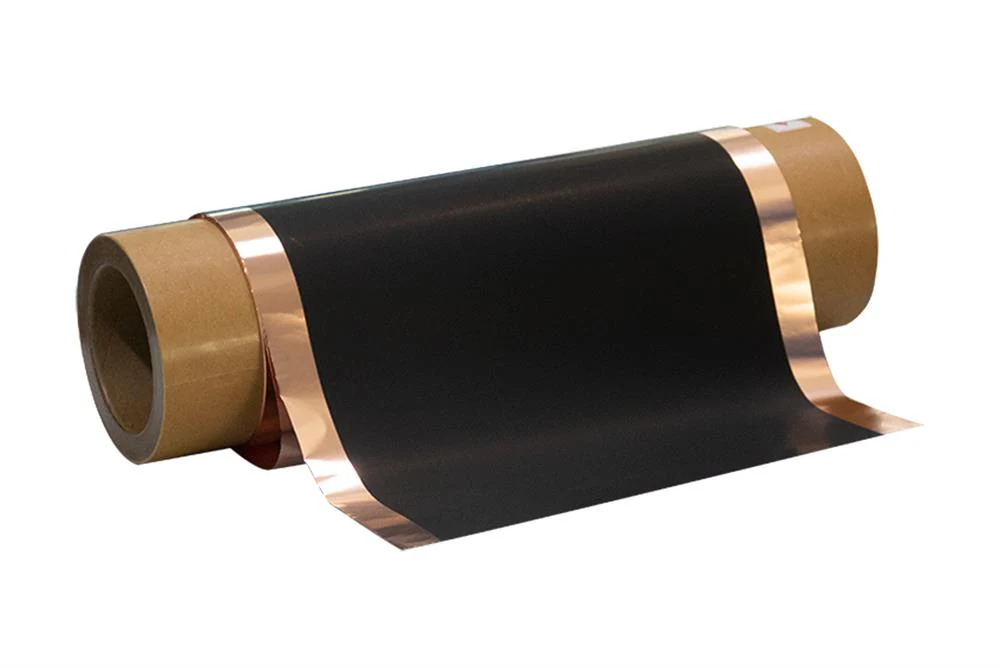

Single Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 10 um thick, 1.3 kg/roll) - CCCu-20ss
HomeStore

Single Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 10 um thick, 1.3 kg/roll) - CCCu-20ss

Single Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 10 um thick, 1.3 kg/roll) - CCCu-20ss

Select Width
From $156.80

Original: $448.00

-65%
Single Side Conductive Carbon Coated Copper Foil for Battery Anode Substrate (180mm/280mm width x 10 um thick, 1.3 kg/roll) - CCCu-20ss—

$448.00

$156.80

The Story

Conductive carbon-coated copper foil can replace conventional Al foil as a better anode substrate with improved properties.

  • Better electrical conductivity and less internal resistivity
  • Better mechanical strength and toughness to avoid short circuit caused by dendrite growth
  • Better coating strength with electrode material
  • Therefore, it will provide larger discharging capability and longer service life for Li-Ion batteries

SPECIFICATIONS

Conductive carbon coating
  • Single side coating with 1-micron thickness
  • Density: 0.54 g/m2
  • Surface resistivity: < 30 ohms per 25um^2
Substrate of Copper
  • Purity > 99.9%
  • Thickness: 9 micron
  • Width: 180 mm or 280 mm
Package for sales 1.3 (+/-0.2) kg for roll
Length 40 meter
Carbon Coating Width ~ 140 or 240 mm (empty space on each side is 20 mm)
Carbon Coating Thickness ~1 um
The cylinder I,D 7.5 cm
Safety Data Sheet SDS for Cu. SDS for Conductive Carbon.
Shipping In vacuum bag
Note & Warning
  • Please store moisture-sensitive consumables in the vacuum storage box, which will help prevent damages and prolong the integrity of the material. Click here for equipment selection
  • Please always heating the sample under a vacuum oven up to 100-120 °C to remove moisture before use for better results.
