The Story

    Solenoid valves are the most frequently used control device in gas flowing system. It has the function of shut off, release, dose, distribute or mix gas.  It is very cost effective to work with MTI tube furnace, pressure gauge and glove box to achieve automatic pressure control.

Structure click to enlarge)


Specification

Fluid:                          Clean Gas
Pressure Range:    0.15-0.8Mpa (Never go over 1.05Mpa)

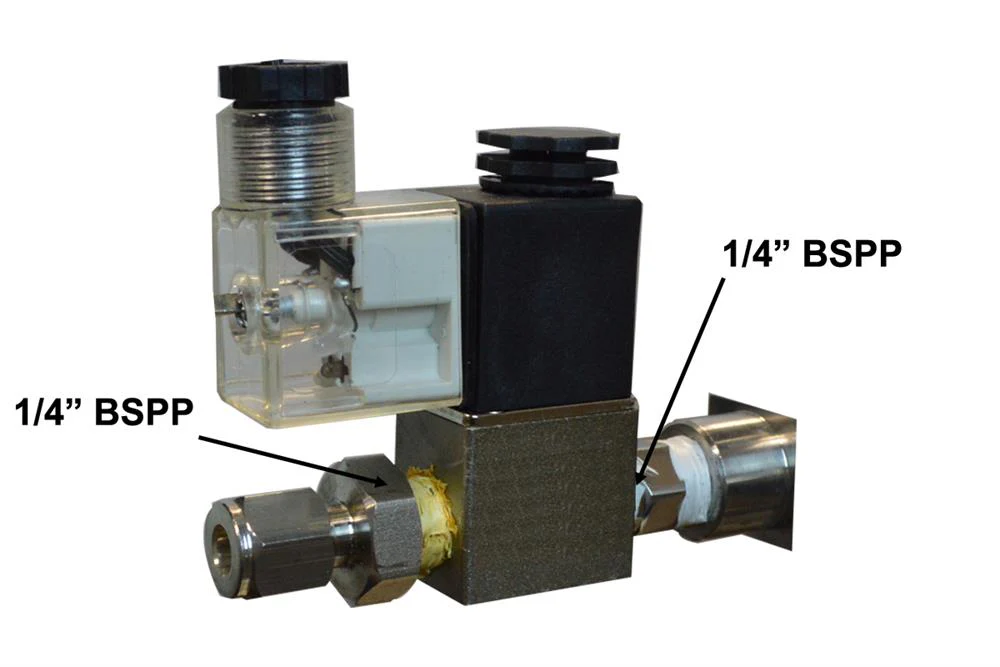

Tread Type:            1/4" BSPP
Working Temp:      -5-50C
Voltage Range :       -15%-15%
Power:                       24VDC  2.5W
Max. Frequency:     5 times/second
Excitation:                 0.05S
Durability:                 10 million times
Net Weight:               0.3 Lb
Dimension:               66mmHx59mmLx22mmW
      Solenoid Valve for Automatic Gas Control System, 24VDC, EQ-SN-Valve - Image 2

      Details & Craftsmanship

      Every detail has been carefully considered to bring you the perfect product.

      Solenoid Valve for Automatic Gas Control System, 24VDC, EQ-SN-Valve - Image 3

      Details & Craftsmanship

      Every detail has been carefully considered to bring you the perfect product.

      Description

          Solenoid valves are the most frequently used control device in gas flowing system. It has the function of shut off, release, dose, distribute or mix gas.  It is very cost effective to work with MTI tube furnace, pressure gauge and glove box to achieve automatic pressure control.

      Structure click to enlarge)


      Specification

      Fluid:                          Clean Gas
      Pressure Range:    0.15-0.8Mpa (Never go over 1.05Mpa)
      Tread Type:            1/4" BSPP
      Working Temp:      -5-50C
      Voltage Range :       -15%-15%
      Power:                       24VDC  2.5W
      Max. Frequency:     5 times/second
      Excitation:                 0.05S
      Durability:                 10 million times
      Net Weight:               0.3 Lb
      Dimension:               66mmHx59mmLx22mmW
