Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B
HomeStore

Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B

Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B

$138.90
Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B—
$138.90

The Story

Features:
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1335 oC (2440 o F)
  • Excellent Long-Term Stability at High Temperature
  • Nickel-Chrome-Based Superalloy Sheathing Provides Excellent High-Temperature Performance
  • Excellent Oxidation, Carburization, and Chlorination Resistance
  • Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with a standard plug; related product below).
Specifications:
  • Length: 4"
  • Diameter of sheath: 3mm diameter
  • Positive Material: Ni-Cr
  • Negative Material: Ni-Al
  • Highest Temperature: 1200 oC
  • Lowest Temperature: -200 oC

Application Note:
  • Replacement thermocouple for KSL1100XS, KSL1200XJ, and OTF1200XIIS.
  • If necessary, please check out K K-type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
  • There are 2 polarities for a K-type thermocouple: positive and negative. Please check the polarity of the K K-type thermocouple before use. The wrong polarity may cause a temperature measuring error.
  • It is also easy to test the polarity of K-type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

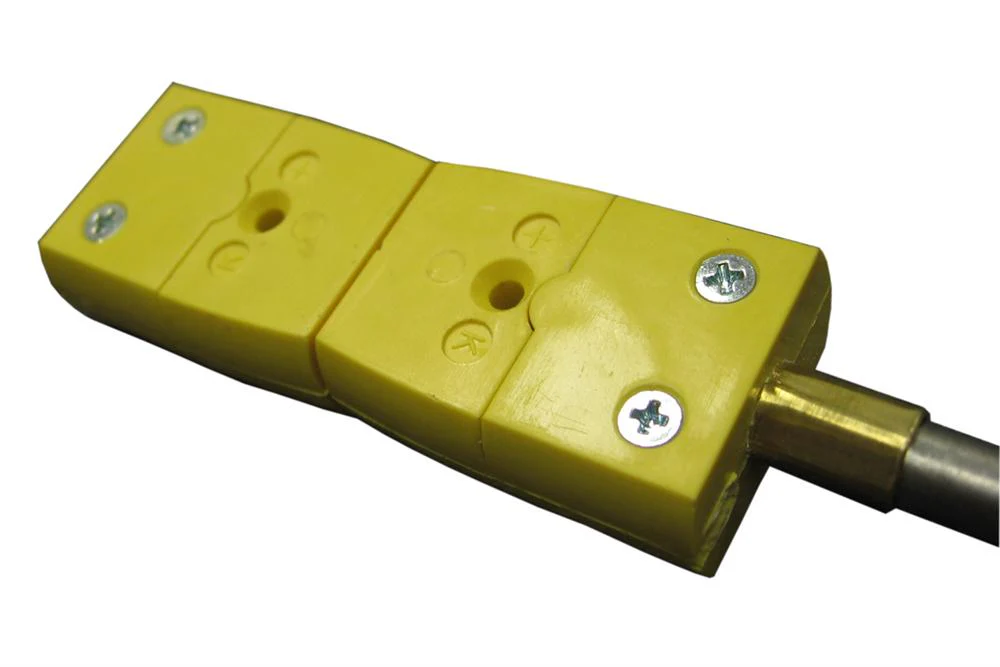

Thermocouple: K type 3mm OD x 4" L with Alloy sheath and Standard Plug for Calibration - TCK4S3B - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Features:
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1335 oC (2440 o F)
  • Excellent Long-Term Stability at High Temperature
  • Nickel-Chrome-Based Superalloy Sheathing Provides Excellent High-Temperature Performance
  • Excellent Oxidation, Carburization, and Chlorination Resistance
  • Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with a standard plug; related product below).
Specifications:
  • Length: 4"
  • Diameter of sheath: 3mm diameter
  • Positive Material: Ni-Cr
  • Negative Material: Ni-Al
  • Highest Temperature: 1200 oC
  • Lowest Temperature: -200 oC

Application Note:
  • Replacement thermocouple for KSL1100XS, KSL1200XJ, and OTF1200XIIS.
  • If necessary, please check out K K-type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
  • There are 2 polarities for a K-type thermocouple: positive and negative. Please check the polarity of the K K-type thermocouple before use. The wrong polarity may cause a temperature measuring error.
  • It is also easy to test the polarity of K-type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
