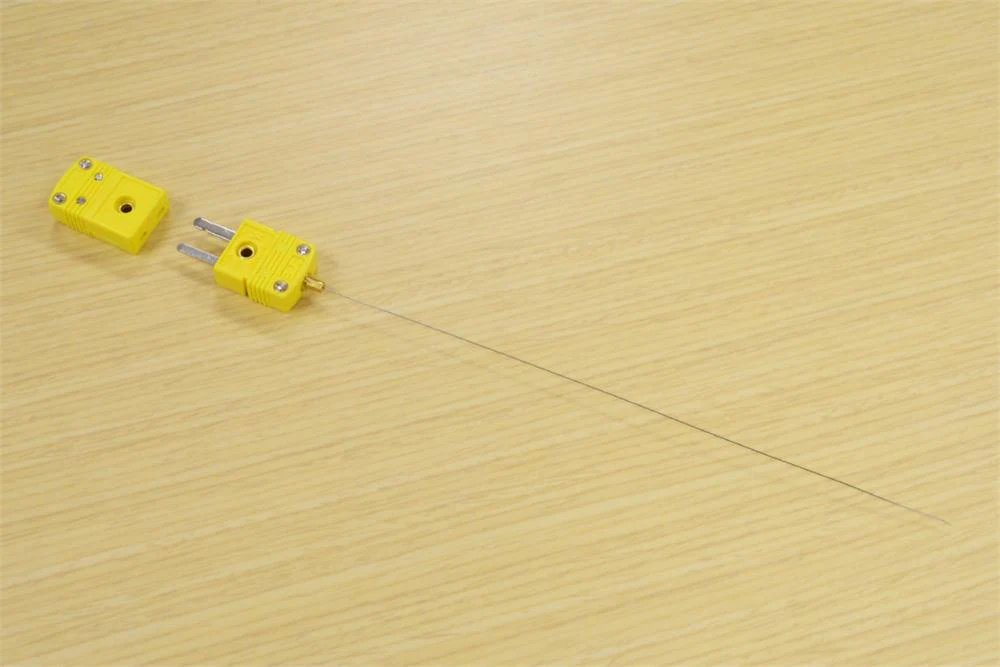

Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1
HomeStore

Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1

Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1

$34.30

Original: $98.00

-65%
Thermocouple: K type 0.032" (0.8mm) OD x 6" L with Male Plug for Calibration - TCK6S1—

$98.00

$34.30

The Story



Features
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1200 oC (2192 o F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
  • Made with materials of Special Limits of Error. Perfect for calibrating MTI tube furnaces using a precision temperature calibrator
Length  6"
Diameter of sheath 0.32" ( 0.81 mm )diameter
Dimension
Positive Material Ni-Cr
Negative Material Ni-Al
Highest Temperature 1200 oC
Lowest Temperature -200 oC
Application Note
  • If necessary, please check out K type thermocouple extension wire with mini male plug. Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc.
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
