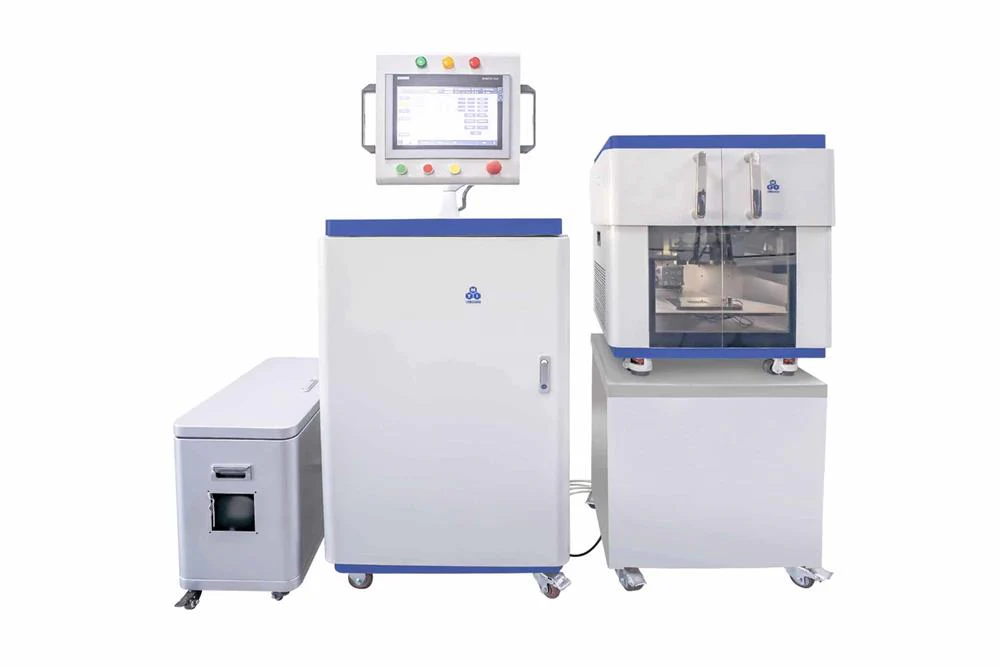

Name: Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20
Brand: MTI Online Store
SKU: topem20
Availability: InStock

Home Store

Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20

$279,800.00

Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20—

$279,800.00

Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20—

$279,800.00

The Story

The TOPEM20 3D printer uses Slurry Extrusion Lamination (SEL) technology, which extrudes battery slurry from the printing nozzle instead of the traditional coating method. This makes the battery manufacturing process faster, simpler, and less expensive. It is a great design for batteries with unique structures or the manufacture of micro-batteries, solid-state electrolyte battery, fuel cells, and electrolyzer.
This machine can be compatible with the glove box, please contact MTI for more information.

Specifications:

Features	10" Touch Screen Panel supports multi-languages The final product is directly generated from the digital model Porous structures or any complex geometries can be created as needed SEL technology with rapid spraying and stacking slurry um level detector function to achieve 10um stable printing Equipped with a μm-level layer thickness detection for stable printing of electrolytes
Working Voltage	AC 208 -240V Single Phase, 50Hz, 3kW
Max. Coating Area	100 mm x 100 mm
Nozzles	Total Four Nozzles Nozzle Diameter: ≥ 0.06 mm Structure Forming Accuracy: 0.01 mm Printing Auranccy: ± 0.01 mm
Slurry Visocity	0.0003 -1.4 million mPa.s
Substrate Holder	A substrate is held by the vacuum chuck at room temperature (~ 70°C)
Moving Speed	≤ 100mm/s
Printing Thickness Range	0.01 - 1 mm
Slurry	Any kinds of anode, cathode, and electrolyte slurries with appropriate solid-content and viscosity. We have demonstrated the following slurry for battery fabrication. Lithium Cobalt Oxide (LiCoO2) positive electrode slurry Lithium Iron Phosphate (LiFePO4) positive electrode slurry High-nickel Ternary (NCM811) positive electrode Graphite negative electrode slurry Polymer solid electrolyte Polymer/Oxide composite solid electrolyte
Printing Software	Simplify3D
Input Format	STL or 0BJ
Output Format	G - code
Compatible Software	Gursa / Microsoft3DBuilder / Slic3r / Skeinforge
Compressed Gas Requirement pic1 pic2	0.5-0.8 MPa pressure required The compressed air pump is required for the operation, which is not included in the standard order, please click the link below to order one. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.

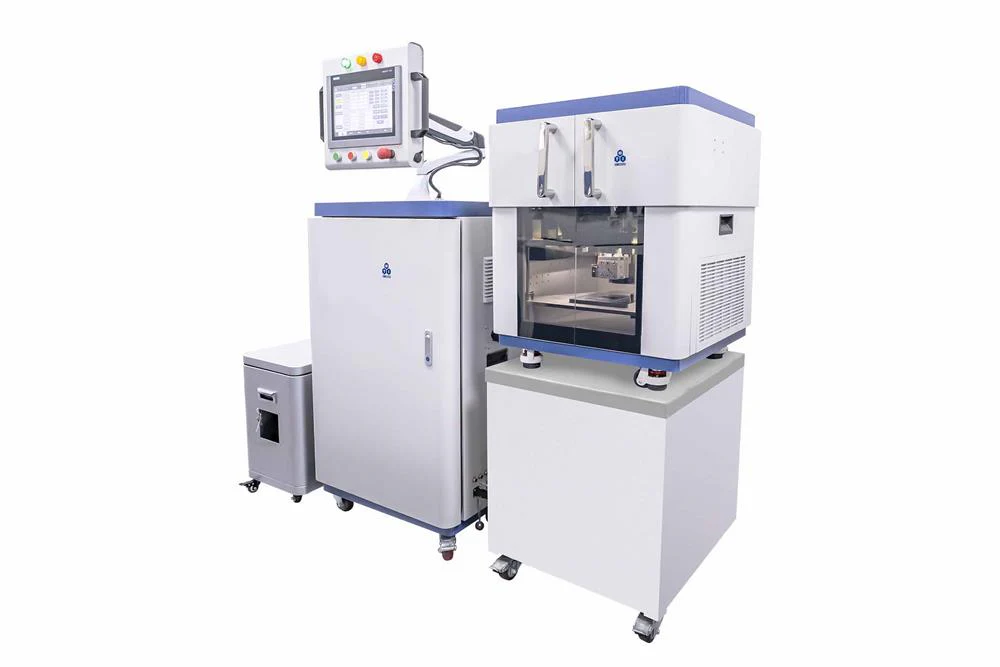

Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

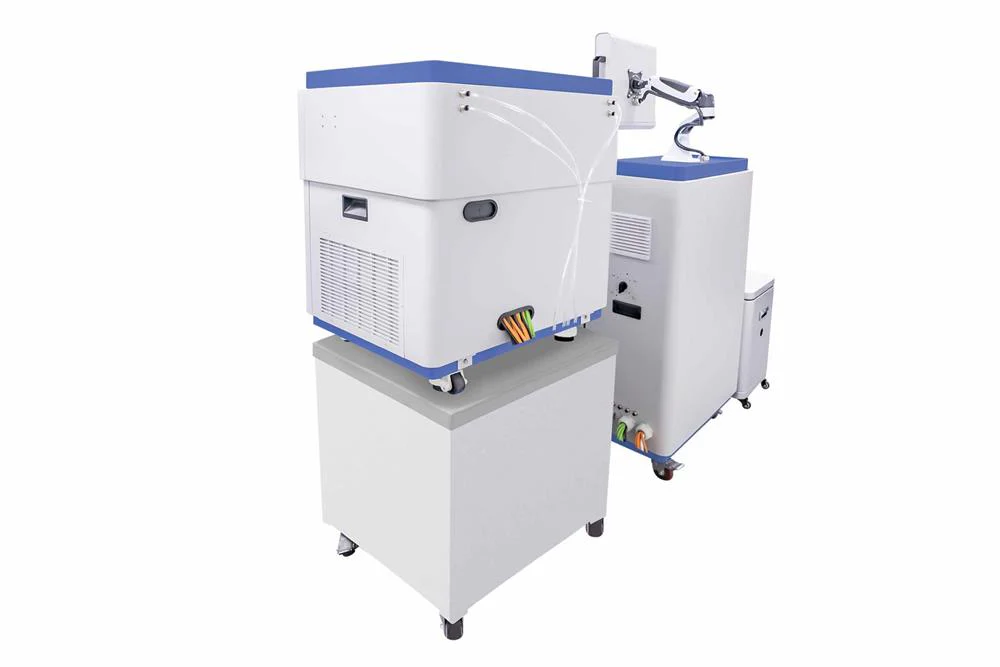

Automatic 3D Printing Coater (100 mm x 100 mm) with Four Nozzles for Solid-State Battery, Micro-Battery, and Fuel Cells/Electrolyzer -TOPEM20 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Specifications:

Features	10" Touch Screen Panel supports multi-languages The final product is directly generated from the digital model Porous structures or any complex geometries can be created as needed SEL technology with rapid spraying and stacking slurry um level detector function to achieve 10um stable printing Equipped with a μm-level layer thickness detection for stable printing of electrolytes
Working Voltage	AC 208 -240V Single Phase, 50Hz, 3kW
Max. Coating Area	100 mm x 100 mm
Nozzles	Total Four Nozzles Nozzle Diameter: ≥ 0.06 mm Structure Forming Accuracy: 0.01 mm Printing Auranccy: ± 0.01 mm
Slurry Visocity	0.0003 -1.4 million mPa.s
Substrate Holder	A substrate is held by the vacuum chuck at room temperature (~ 70°C)
Moving Speed	≤ 100mm/s
Printing Thickness Range	0.01 - 1 mm
Slurry	Any kinds of anode, cathode, and electrolyte slurries with appropriate solid-content and viscosity. We have demonstrated the following slurry for battery fabrication. Lithium Cobalt Oxide (LiCoO2) positive electrode slurry Lithium Iron Phosphate (LiFePO4) positive electrode slurry High-nickel Ternary (NCM811) positive electrode Graphite negative electrode slurry Polymer solid electrolyte Polymer/Oxide composite solid electrolyte
Printing Software	Simplify3D
Input Format	STL or 0BJ
Output Format	G - code
Compatible Software	Gursa / Microsoft3DBuilder / Slic3r / Skeinforge
Compressed Gas Requirement pic1 pic2	0.5-0.8 MPa pressure required The compressed air pump is required for the operation, which is not included in the standard order, please click the link below to order one. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.
