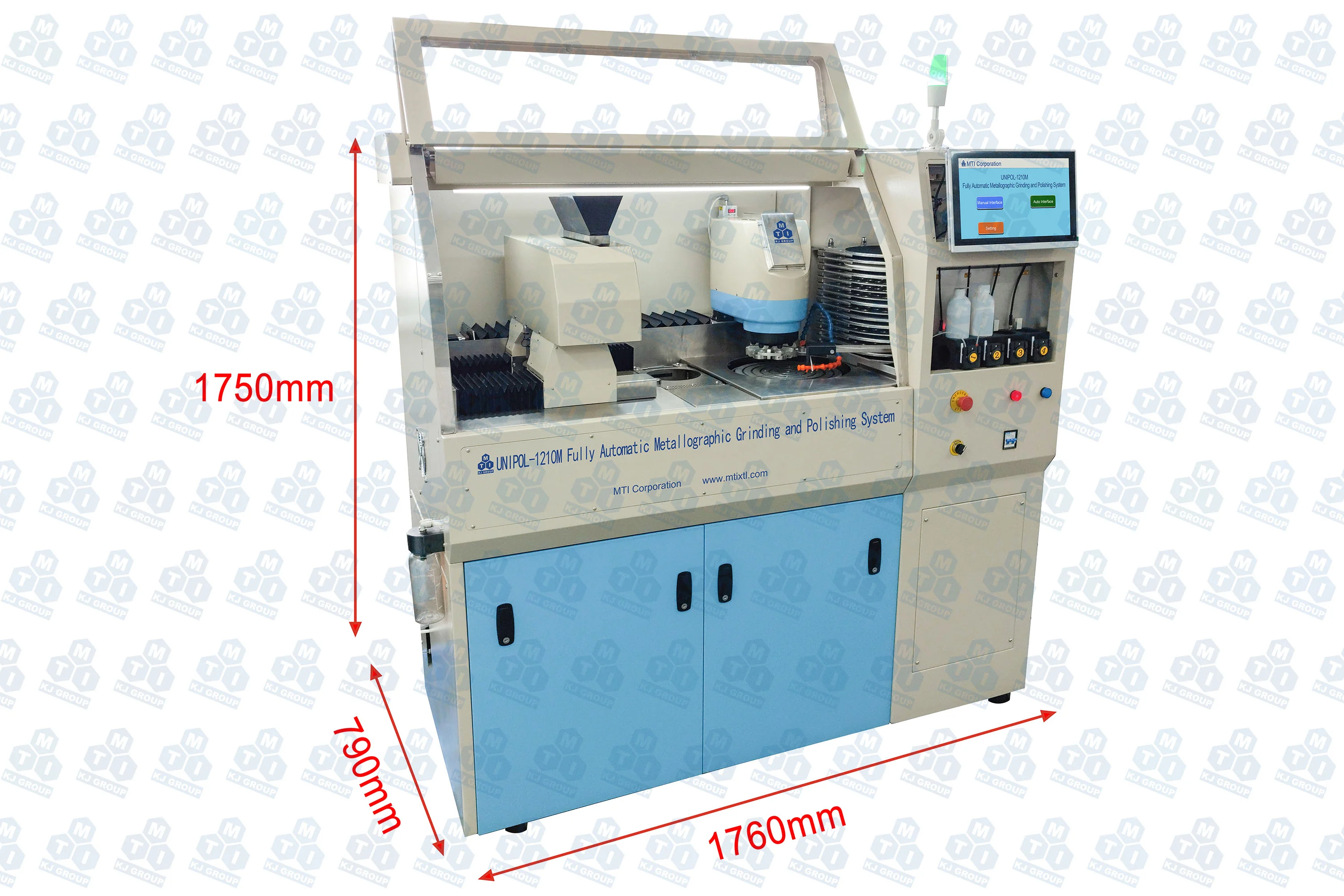

Automated Lapping and Polishing Station with Hot Sample Mounting for Metallographic- UNIPOL-1210M

Embedding Unit

• Embedding Capacity: Up to 6 samples per cycle
• Embedding Diameter:  ≤25mm)
• Drive Mechanism: Hydraulic
• Heating Temperature: Up to 180°C
• Heating Power: 1200W
• Compression Force per Station: 220kg

Grinding and Polishing Unit

• Vacuum Suction Mechanism
• Plate Size: φ300mm
• Plate Speed: 50-500rpm

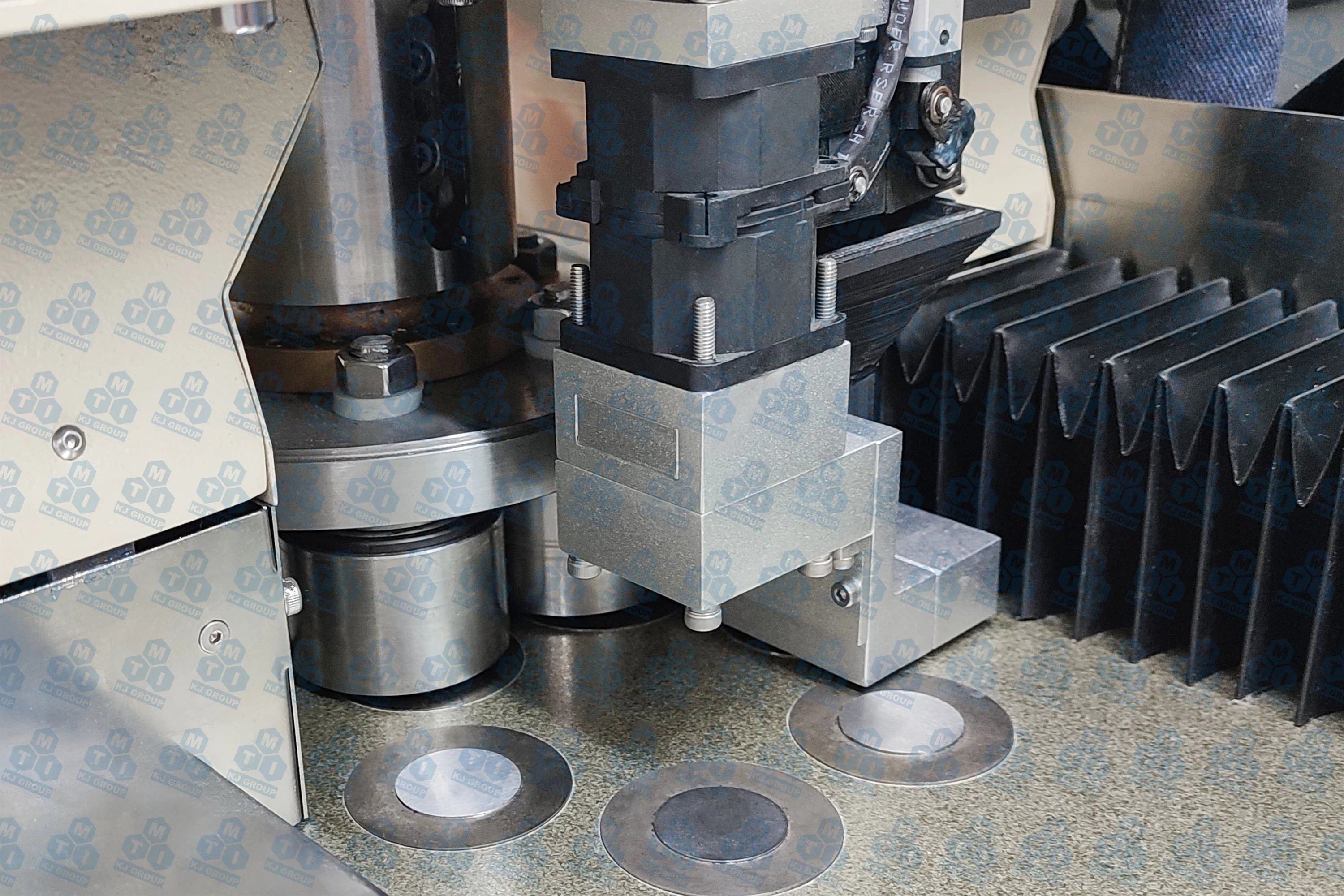

• Sample Holder Diameter: φ30mm x 6
• Sample Holder Speed: 10-60rpm
• Pressure Control: Multi-Point Adjustable
• Maximum Single Sample Loading Force: 1-5kg

• Automatically Replaces Grinding Papers and Polishing Pads
• Stores up to 16 Sets of Consumables, with Customizable Replacement Sequences
• Vacuum Suction for Securing Consumables
• Programmable Grinding/Polishing Duration and Frequency

Cleaning Unit

• Equipped with Water Inlet and Drainage Systems
• Ultrasonic Cleaning


Fluid Supply

• Water, Grinding Paste × 1
• Suspension × 4

• Automatic Transfer of Samples to Grinding/Polishing Plates After Embedding
• Automated Switching Between Coarse and Fine Abrasive Papers During Grinding
• Automatic Adjustment of Polishing Pads for Different Materials
• Automatic Dispensing of Water or Polishing Liquids as Required
• Automated Sample Transfer to the Cleaning Unit
• Real-Time Process Monitoring
• All Parameters Can Be Configured and Stored for One-Touch Operation

Operation procedure

1.  Make samples ( 6 pcs) with a flat to be polished and ready
2. Put 6 samples into position to be embedded on the machine
3. Set the program of polishing in touch screen, usually two rough lapping and two polishing
4. Touch the " run" button on the control panel, then the machine will finish embedding, lapping, and polishing in 40 - 60 minutes, depending on  sample size and final polishing roughness
5. Note: integrating with a robot, we can realize the autonomous operation from sample mounting, etching, and microscope observation.
