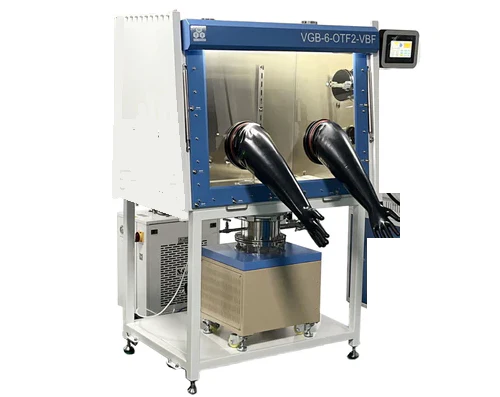

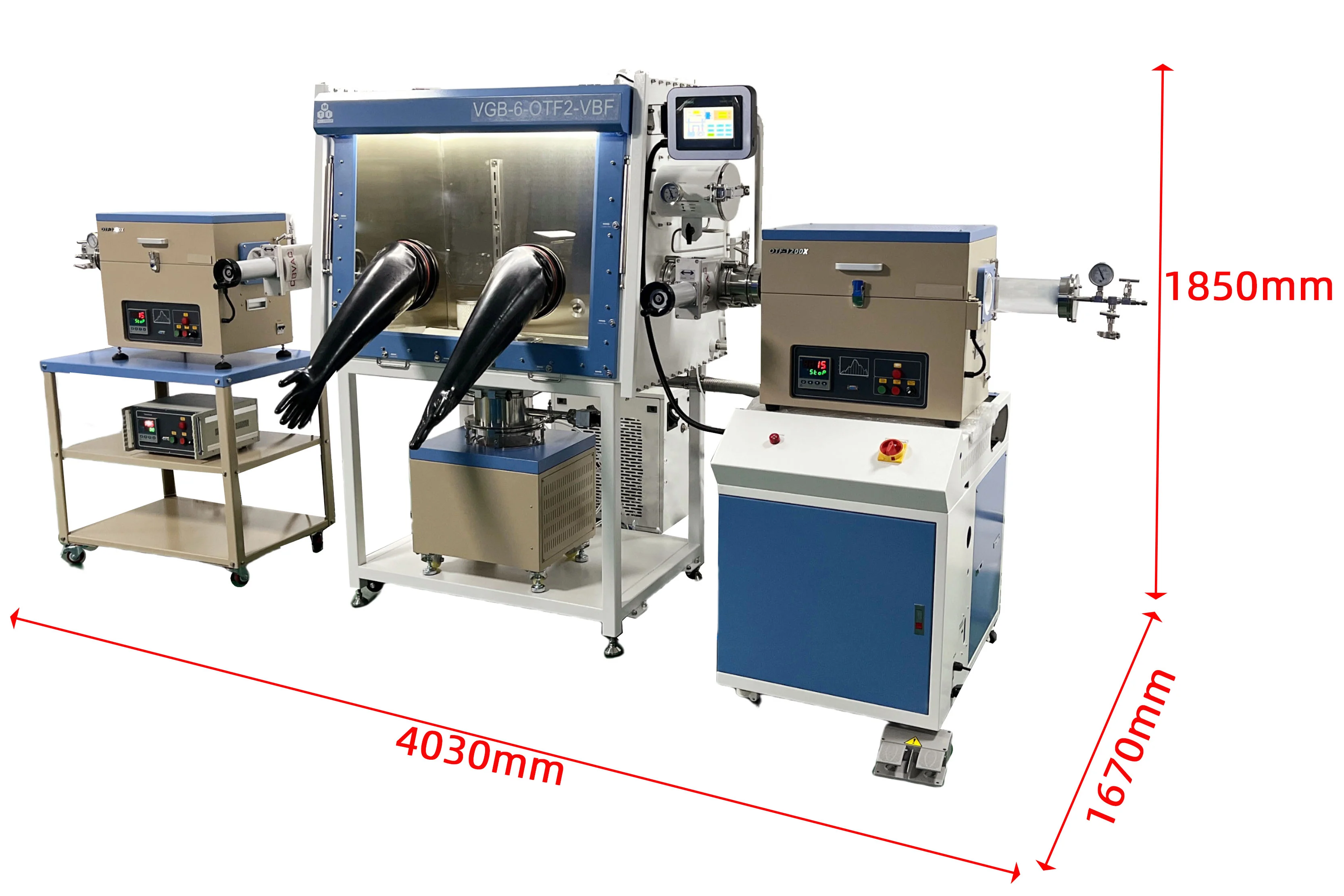

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB

• Glovebox Power: 1500W
• Total Power of High-Temperature Furnaces: 8.5KW

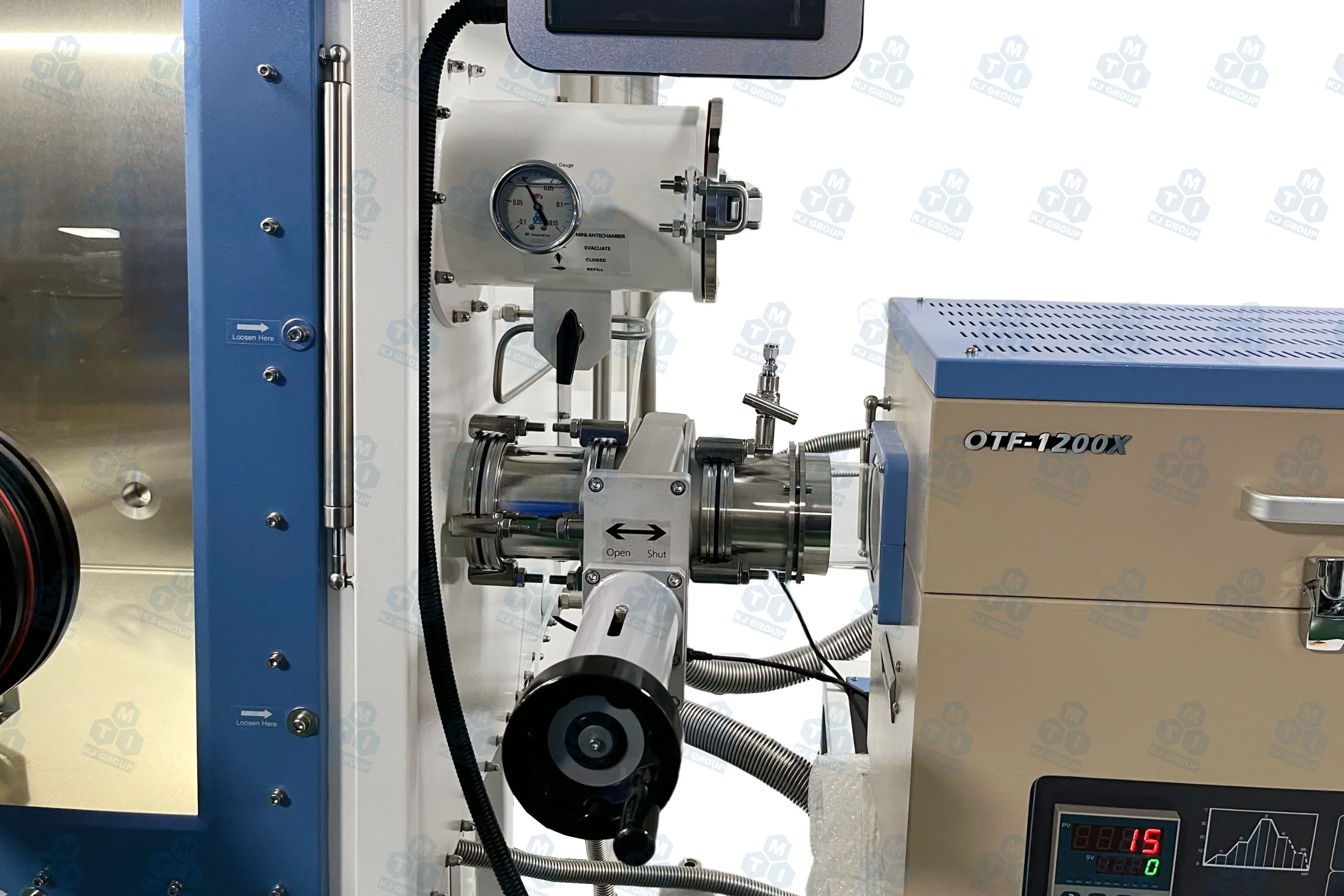

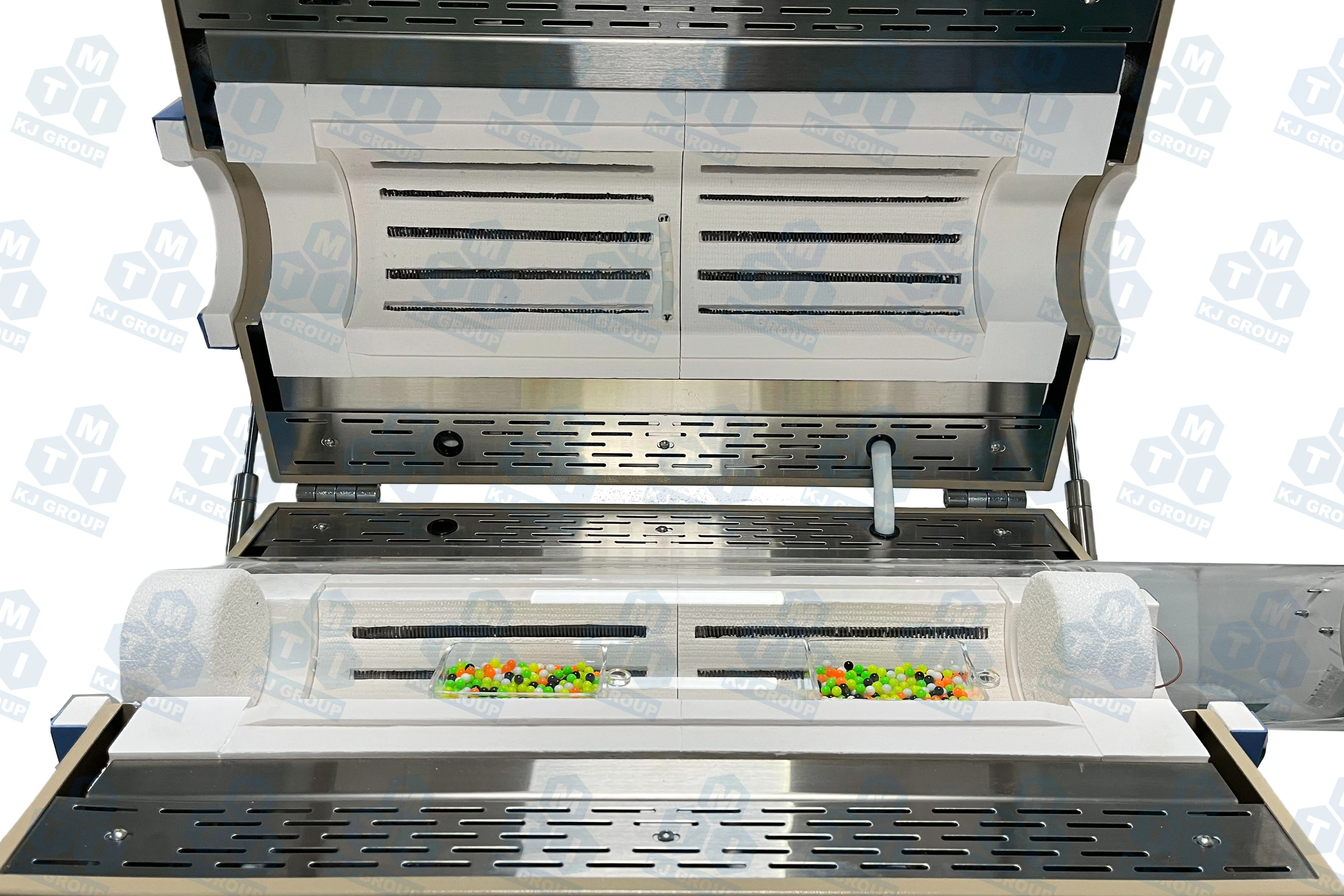

One 1200°C single-zone tube furnace on each side

• Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C
• Tube Dimensions: 100mm OD × 96mm ID × 1000mm L

A vertical furnace at the bottom of the glovebox

• Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C
• Single-end sealed Φ200 × 340mm quartz tube

Circulating Water Chiller

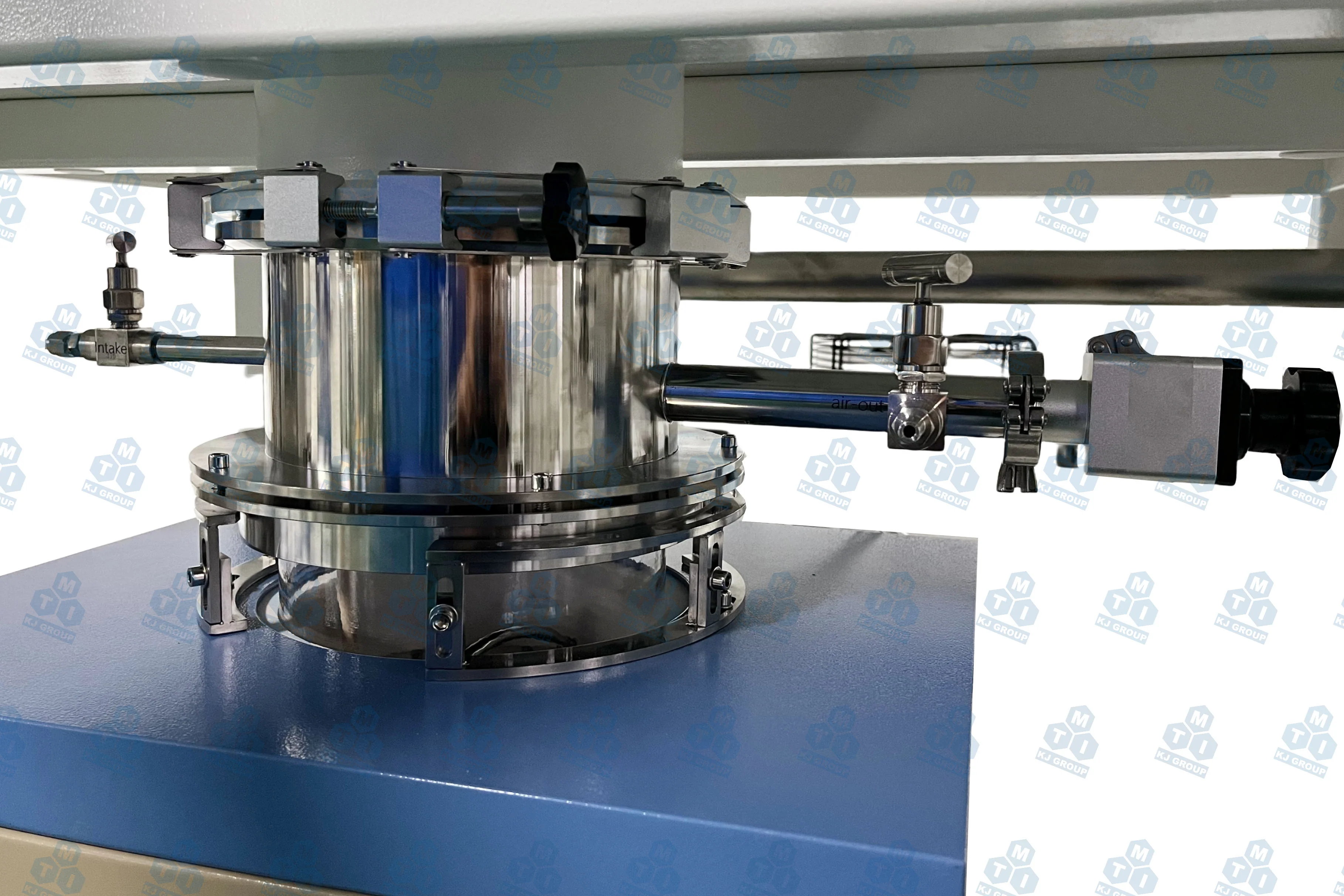

 Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace
Model: KJ-5300

• Operating Voltage: AC 220V 50Hz
• Operating Current: 0.7–8 A
• Cooling Capacity: 6,274 Btu/h
• Compressor Power: 600 W
• Reservoir Capacity: 10 L
• Maximum Flow Rate: 16 L/min
• Net Weight: 45 kg

All electrical components (with input voltage ≤ 24V) are UL or CSA certified.
