NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD
HomeStore

NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD

NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD

Select Accessories
Select Voltage
From $1,049.30

Original: $2,998.00

-65%
NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD—

$2,998.00

$1,049.30

The Story

The Heavy Duty Double Stage Rotary Vane Pump utilizes proprietary advanced technique to increase performance and adaptability with extremely low noise generation. The YTP550 features a proprietary built-in check valve, an easy-to-use air needle valve control and oil scale inspection. It is the most cost-effective vacuum pump for using continuously

Specifications:

Model Type

YTP550-4E16A

Voltage / Frequency

110V or 208 - 240V / 50-60 Hz

Working Current

3.5A Max. ( 750W Max. )

Pumping Rate (m3/h)

240 L/min or 8.5 CFM
 (Please click here to convert metric to English unit)

Maximum Pressure

3E-3Torr (4×10-1Pa)
(click to see conversion of pressure unit)

Power (HP)

3/4HP550W

Rotate Speed

1400 (rpm)

Volume of Oil (ml)

1100 (included)
Additional vacuum pump oil can be ordered here

Working Temperature

-5 ~ 60 0C

Vacuum port fitting (KF25D)

MTI vacuum pump
KF-25 ports, click the picture above to enlarge

Vacuum Pump Exhaust System with KF-D25 Adapter & Quick Clamp (Included for immediate use)

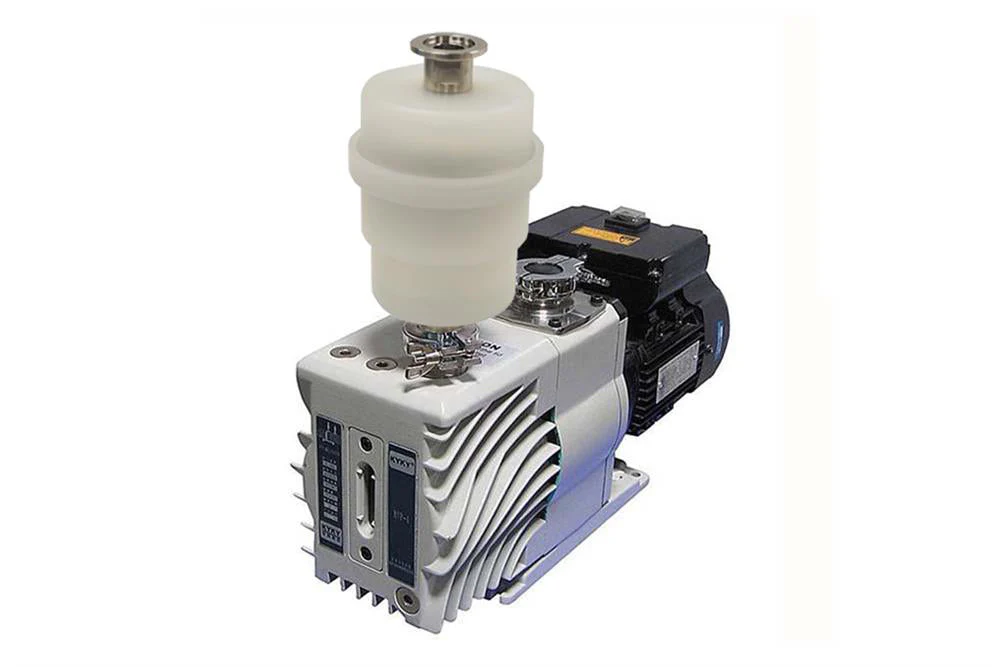

 Oil Mist Trap is included
    • Trap the exhaust oil fumes
    • Returns used oil to vacuum pump
    • Traps particles to 0.3 microns
    • Replaceable coalescing element

Dimension

20" (l) x 6" (w) x18" (h) with Filter

Net Weight (kg)

25

Shipping Dimension (mm) &Weight (Kg)

440x160x300mm; 30 Kg

Structure Drawing

mti vacuum pump

Certificate

CE approved
UL Certified (UL 1450) .

Warranty

One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.)
Application Note
  • To protect the environment & human health, please use Traps & Filters to minimize exhaust.
  • To protect the vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump foreline ( click on the pictures below for details ).
  • Please choose a vacuum gauge by clicking the picture below right

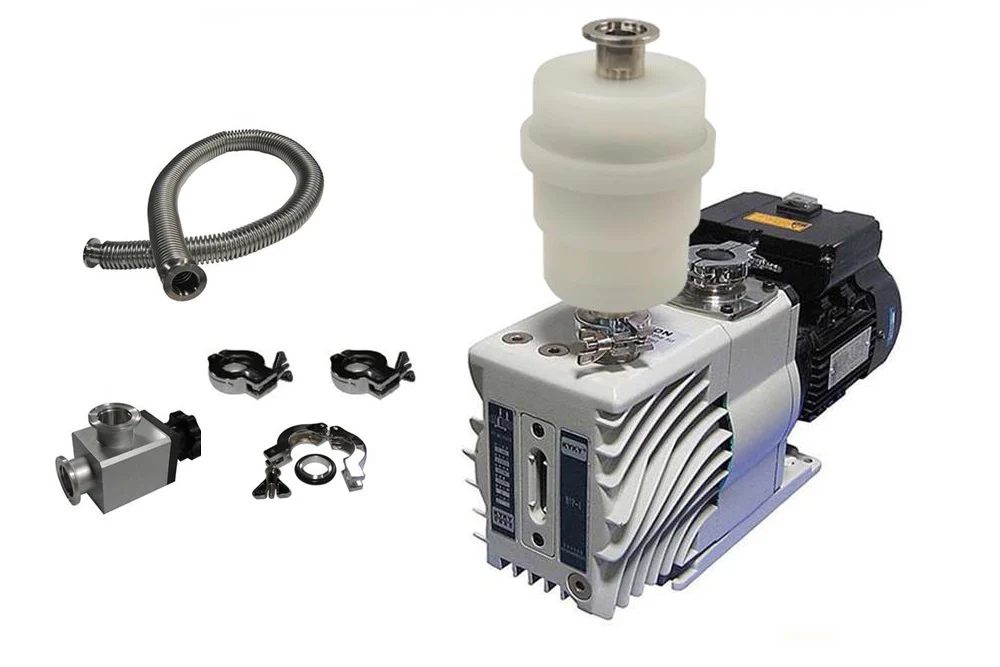

Vacuum Pump and KF-25 Vacuum Suite includes:

Part No.

Product Name

 Quantity
EQ-YTP-550
240 L/m Heavy Duty Rotary Vane Vacuum Pump with Exhaust Filter, EQ-YTP-550
1
EQ-KF-Pipe-D25
Vacuum bellows with KF-D25 adaptor (1m)
1
EQ-KF-Valve-D25
KF25 Vacuum Right-Angle Valve
1
EQ-KF-Clamp-D25
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum Adaptor
 3

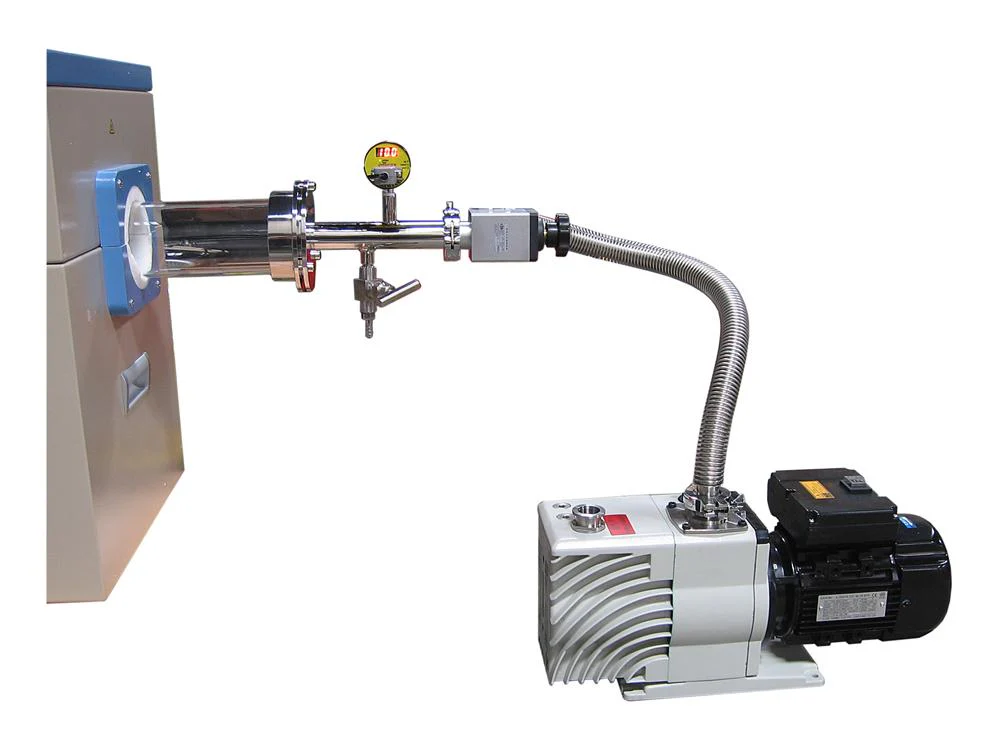

NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

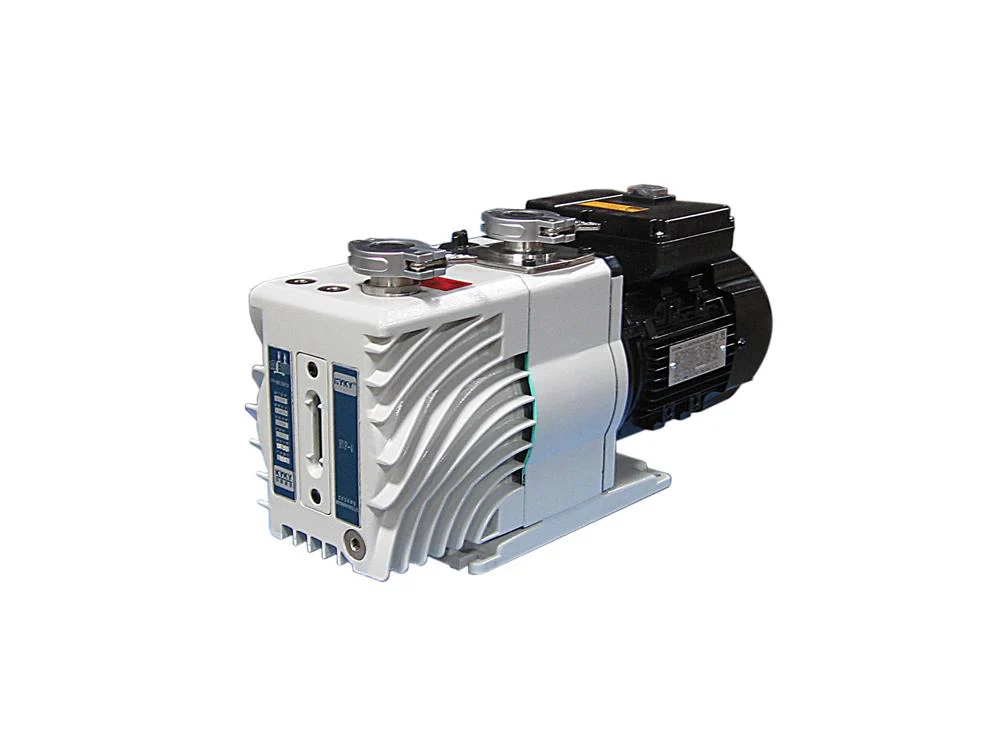

NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD - Image 3
