The Story

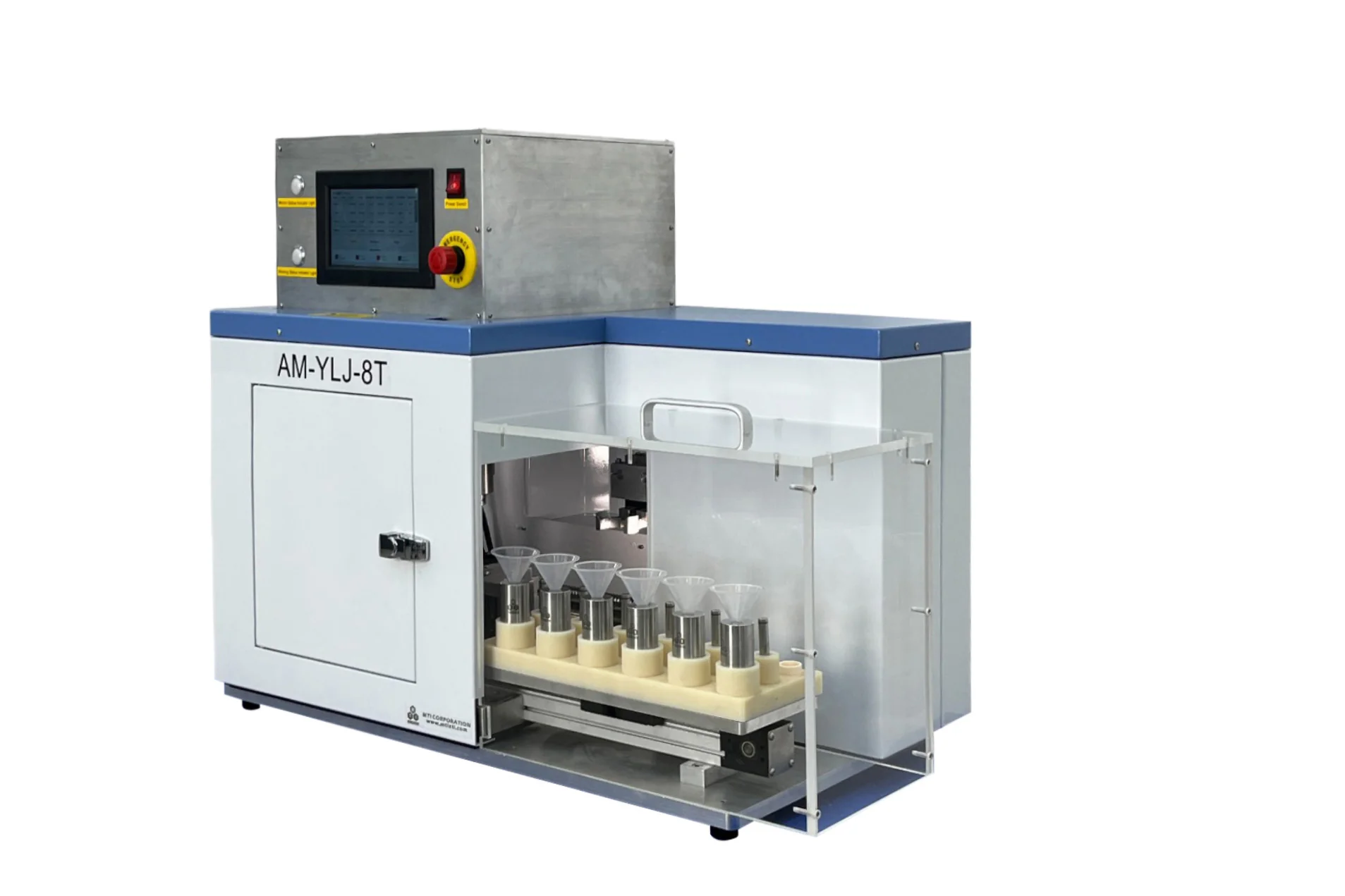

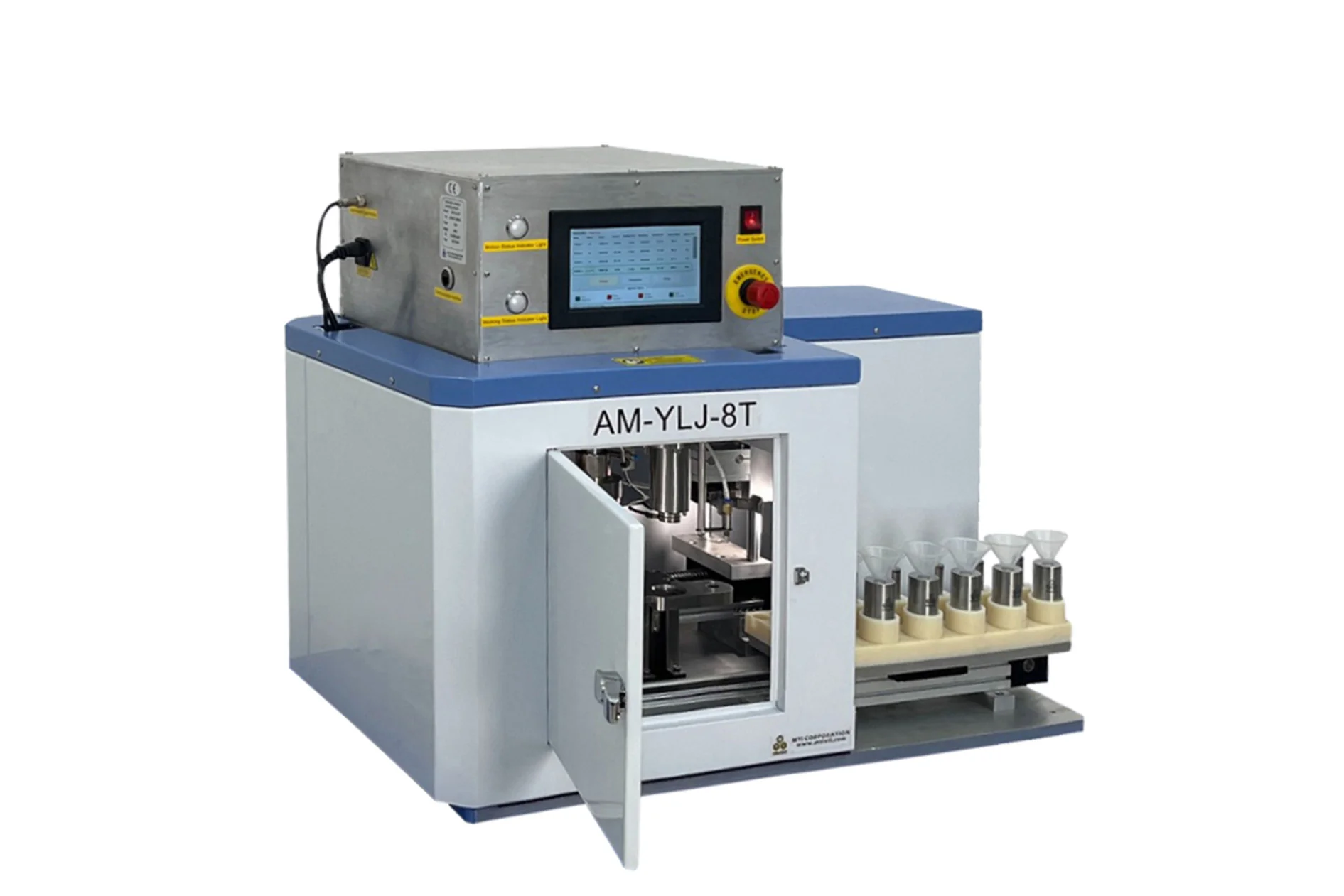

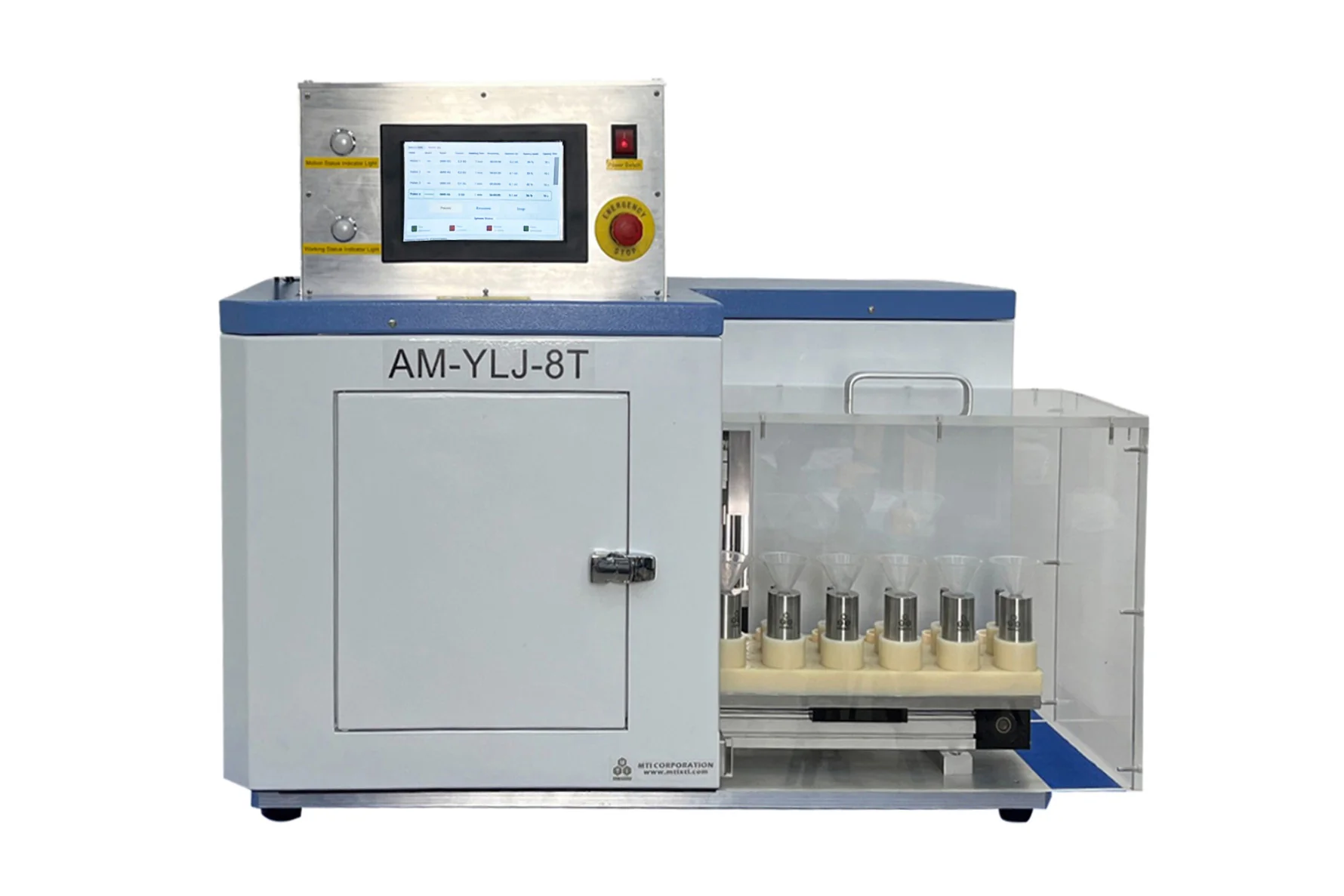

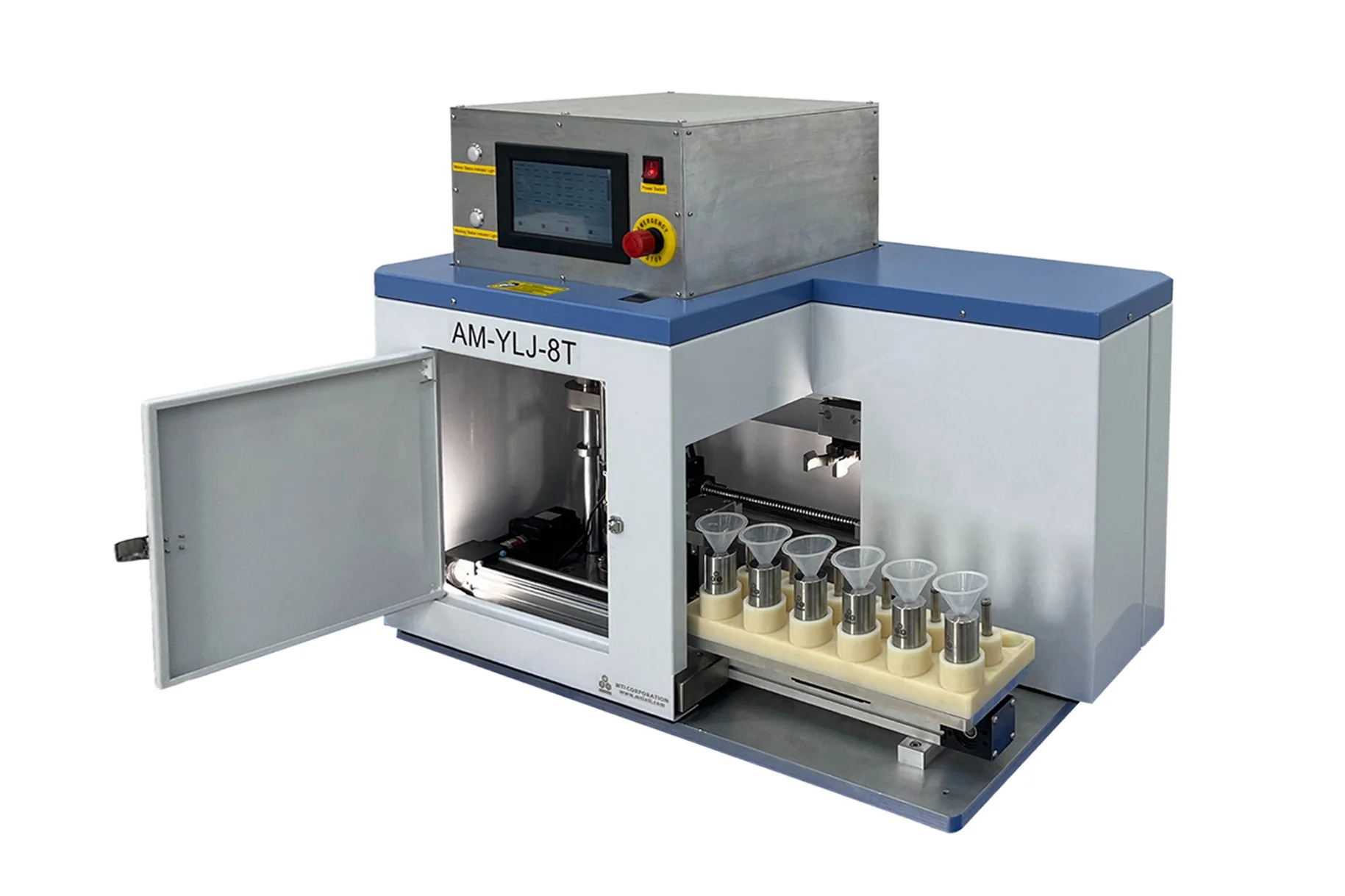

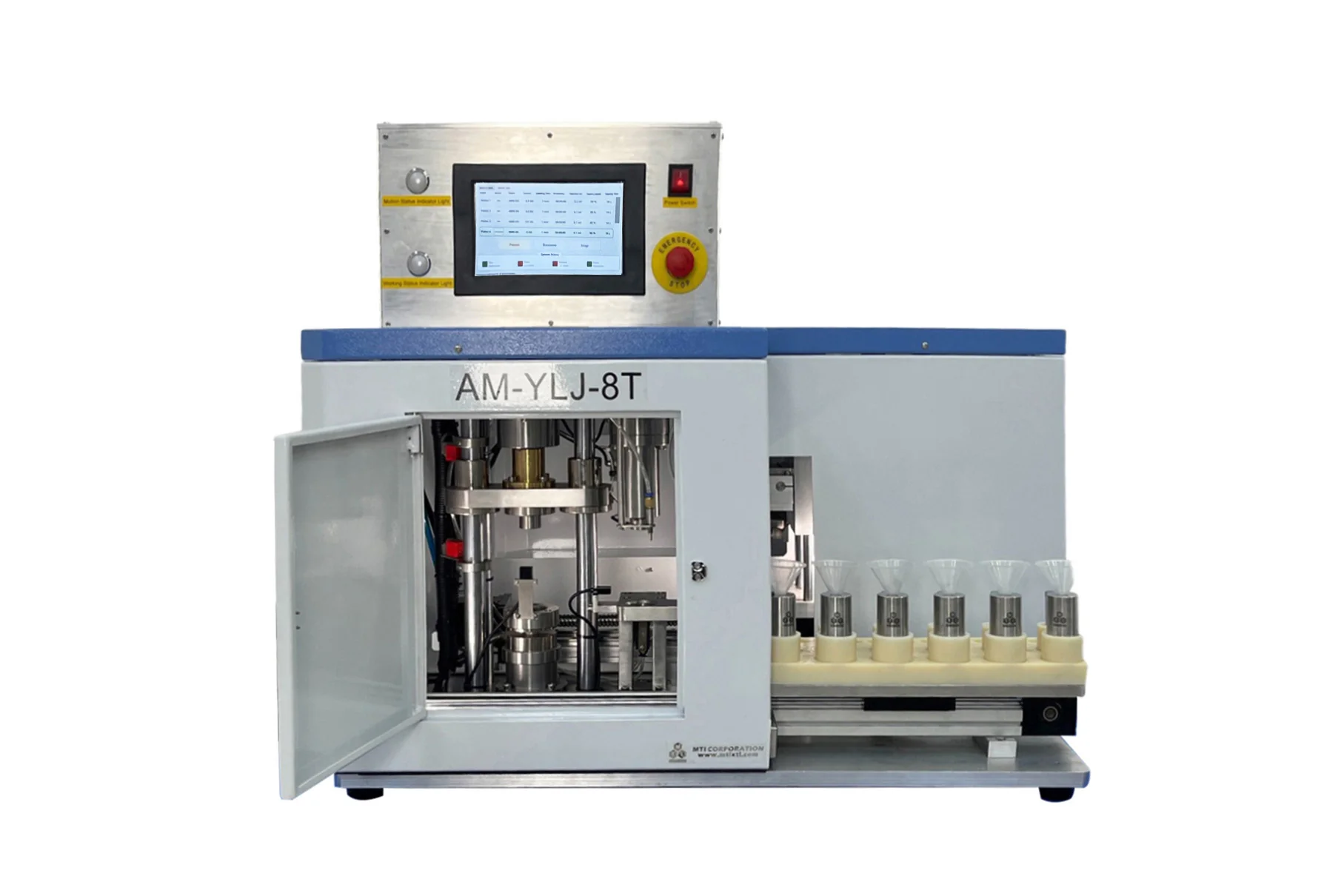

AM-YLJ-8T is an automated pellet press that automates pressing die assembling, pellet press, die dissembling, and pellet retrieval. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder in a fast and accurate manner for powder palletization. The modular design can be used solely for 6 samples per batch or pairs with automated MTI materials preparation system for autonomous experiments. The free software advances instrumental communication and data acquisition.

SPECIFICATIONS:

Operation procedures	Program operation procedure in PC or touchscreen - including pressing pressure and holding time Manually load powders into 6 pressing dies. and start the program. The system Place the top plunger Move the pressing die for pressing and dwelling at the setting pressure Take out the sample via a demolding process Place the bottom core into a holding tray Place the sample inside a clean plastic cup. Throughput: 60 minutes per 6 samples.
Power	Input Voltage: 120 or 208-240 VAC, single phase, 50/60 Hz. Output Power: 500W
Pellet Press	Motorized lab press, YLJ-8TA Material: Tool Steel (HRC60-62) Standard: 6 sets of 10-mm ID dies are included. Max pressure: 1000 MPa, 78.6 KN Please contact MTI for more information. Different diameters of pressing dies are also available.
Compliance	CE Certified NRTL certification is available upon request at the extra cost.
