Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL
HomeStore

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL

$8,998.00
Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL—
$8,998.00

The Story

MSK-TE908B-UL is an NRTL ready drop tester performing the 1.2-meter drop test for the Lithium-ion batteries package according to UN3480 and IATA Lithium-ion batteries package Shipping Guidelines.

SPECIFICATIONS

Power
  • 110VAC, single phase, 50/60Hz
  • Power consumption: 1.85KW
Testing Parameters
  • Drop height: 300 - 1500mm adjustable, ±10mm, motor control
  • Impact orientations: face, vertical, edge
  • Test sample weight: 80kg max.
  • Test sample dimensions: 800 x 800 x 1000mm max.
  • Base area: 1700x1200x10mm (L x W x T), cast iron
  • Sample stage:
  • Testing Standards: UN3480 and IATA Lithium-ion batteries package Shipping Guidelines.
Compliance
  • CE certified
  • NRTL(UL61010) or CSA certification is available at extra cost.





Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

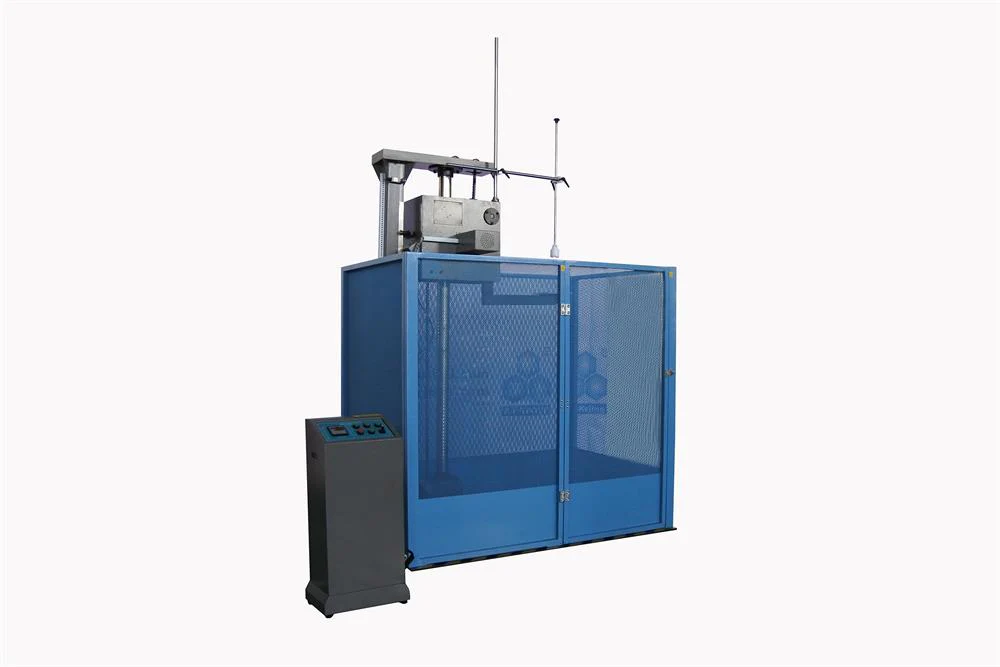

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Drop Tester for Lithium Battery Package (UN3480) - MSK-TE908B-UL - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSK-TE908B-UL is an NRTL ready drop tester performing the 1.2-meter drop test for the Lithium-ion batteries package according to UN3480 and IATA Lithium-ion batteries package Shipping Guidelines.

SPECIFICATIONS

Power
  • 110VAC, single phase, 50/60Hz
  • Power consumption: 1.85KW
Testing Parameters
  • Drop height: 300 - 1500mm adjustable, ±10mm, motor control
  • Impact orientations: face, vertical, edge
  • Test sample weight: 80kg max.
  • Test sample dimensions: 800 x 800 x 1000mm max.
  • Base area: 1700x1200x10mm (L x W x T), cast iron
  • Sample stage:
  • Testing Standards: UN3480 and IATA Lithium-ion batteries package Shipping Guidelines.
Compliance
  • CE certified
  • NRTL(UL61010) or CSA certification is available at extra cost.
