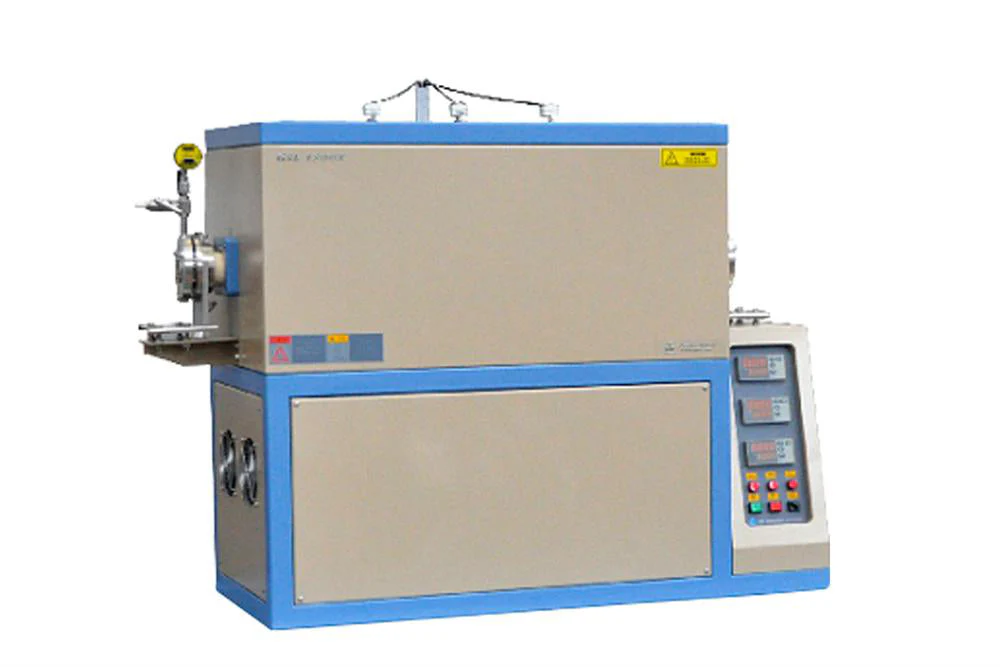

1700°C Three-zone Tube Furnace with Alumina tube 50-80 mm OD - GSL-1700X-xx-III

1700°C Three-zone Tube Furnace with Alumina tube 50-80 mm OD - GSL-1700X-xx-III

Select Alumina Tube OD
From $14,700.00

Original: $42,000.00

-65%
1700°C Three-zone Tube Furnace with Alumina tube 50-80 mm OD - GSL-1700X-xx-III—

$42,000.00

$14,700.00

The Story

GSL-1700X-xx-III series is a three zone tube furnace designed for heat treatment under controlled gas atmosphere.

Features

  • Working Temperature <1700 °C
  • Heating Length 610 mm (195 + 220 + 195 mm)
  • Uniform Length 300 mm @1600°C
  • Choice of Alumina Tube: Ø 50, 60, or 80 mm
  • Thermocouple Type B (Pt-Rh)


SPECIFICATIONS

Power
  • 208-240 VAC, three phase, 50/60 Hz, 50 A
  • 15 kVA
  • 10-foot power cable (no plug)
  • 380-415 VAC, three phase is also available upon request.


Furnace Structure
  • Double-layer steel case with air cooling to keep furnace surface temperature < 70 °C
  • High quality alumina thermal insulation
  • Integrated control panel for easy temperature programmable and operation

Pressure
  • < 3 psig


Working Temperature
  • <1700 °C, <1 hr heating time
  • <1650 °C, continuous
  • <1500 °C, vacuum
  • Higher working temperature model is also available upon request with following upgrades,
    • <1800 °C, < 1 hr heating time
    • < 1750 °C, continuous
    • with Kanthal 1900°C heating element
    • 1900°C high quality alumina insulation
    • 99.8% alumina tube


Thermal Blocks
  • Fibrous alumina thermal blocks

Heating Elements
  • 14 pcs MoSi2 heating elements

Heating/Cooling Rate
  • <10 °C /min

Heating Length
  • Three zones: total length: 610 mm
  • Left zone 195 mm
  • Middle zone 220 mm
  • Right zone 195 mm

Temperature Uniformity
  • 300 mm if all three zones are set to 1600 °C

Processing Tube
  • Choice of tube diameter: Ø 50, 60, or 80 mm
  • 1200 mm long alumina tube.

Flanges
  • Water-cooled stainless steel flanges for hermetic process
  • 1/4" gas inlet and outlet with compression tube fittings
  • KF25 port for vacuum connection
  • Ø12 mm push-to-connect ports as water inlet and outlet.
  • 60 mm stainless steel water cooling vacuum sealing flange with valve and meter is included
    Temperature Control
    • Three programmable PID temperature controllers
    • 30 programmable segments for heating, dwelling, or cooling.
    • Overheating & broken thermocouple protection
    • Interlocks for over-temperature protection and thermocouple failure.
    • +/- 1 ºC control accuracy
    Eurotherm Temperature Controller (Optional)
    • Eurotherm 3000 series temperature controller
    • 28 temperature segements
    • Temperature control accuracy: ± 0.1ºC
    Thermocouple
    • Type B thermocouples

    Laptop, software & WiFi Control (Optional)
    • RS485 communications Port
    • Labview Based Temperature Control System (MTS03) enables users to edit temperature profiles, manage recipes, control the furnace, and data logging.
    Compliance
    • NRTL certification based on UL61010 is optional with an extra cost.

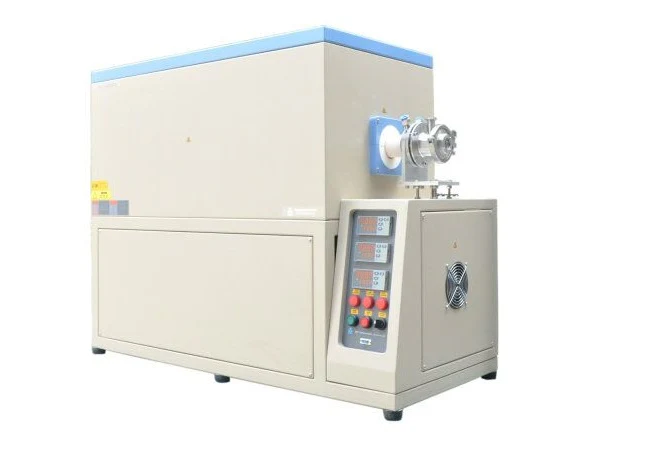

    1700°C Three-zone Tube Furnace with Alumina tube 50-80 mm OD - GSL-1700X-xx-III - Image 2
