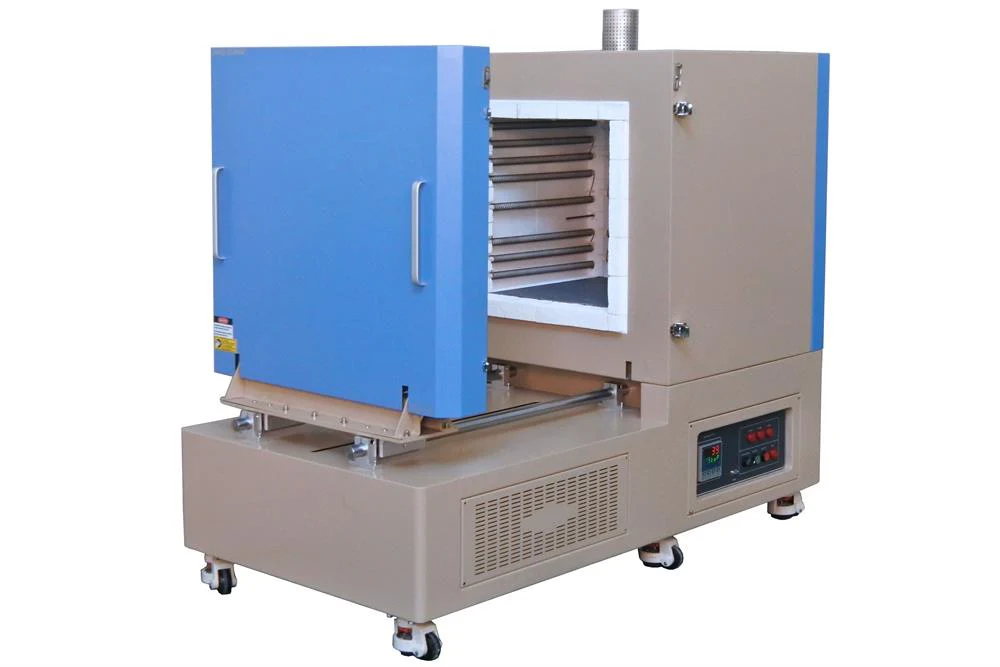

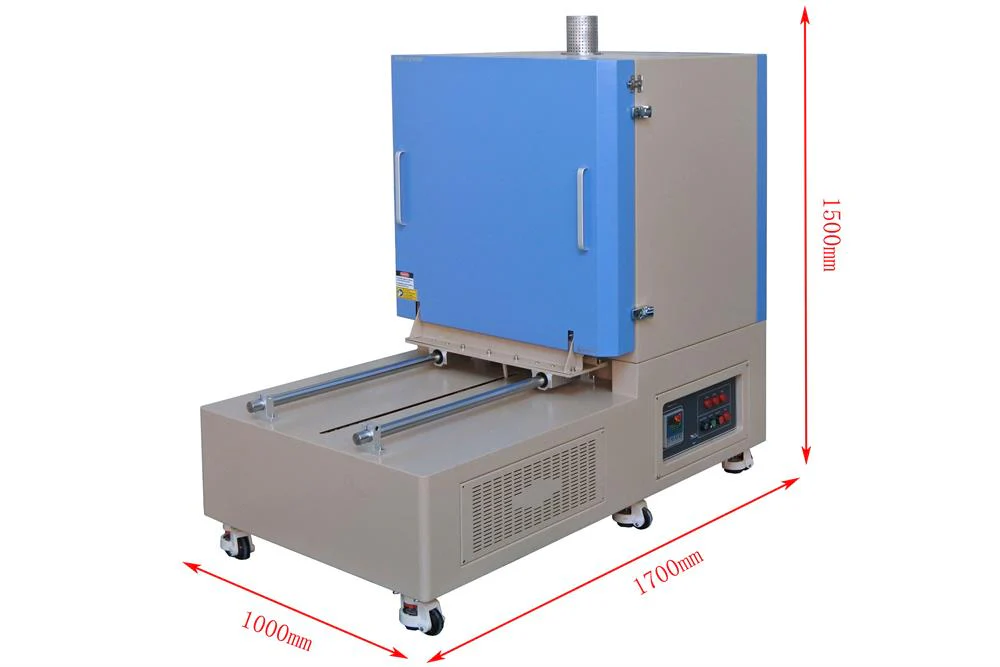

1200°C 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T

KSL-1200X-MAX-T is a 5-side Heating Muffle Furnace (20x20x20", 125L) with a Sliding Door for Rapid Cooling, max working temperature is 1200℃. The 5-side heating chamber with freestanding heating elements provides better temperature uniformity, a higher heating rate, and reduces the downtime of heating element replacement. It is a perfect instrument for sintering and annealing large quantities of metals and ceramics. The sliding door allows rapid cooling much more conveniently when equipped with robot arms(extra cost).

SPECIFICATIONS

Power	Power: 12 kW, three-phase, 380AC Other voltage ratings are available upon request.
Thermocouple:	K type

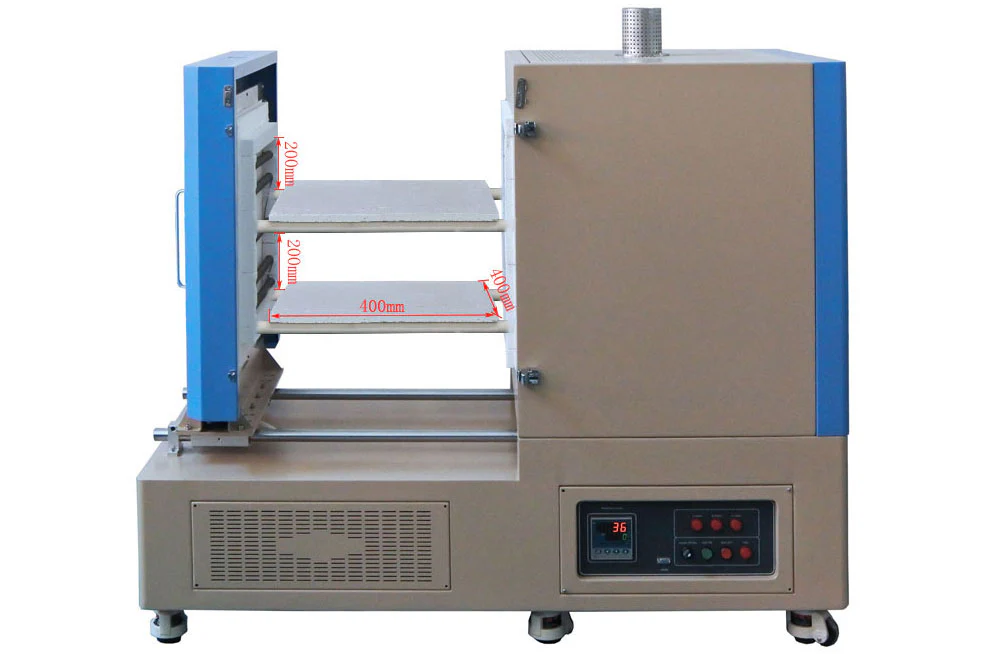

Heating Chamber	Size: 20" x 20" x 20" ( 500 x 500 x 500 mm) Capacity: 125 liters  Uniform temperature zone: 200x200x200mm +/- 2ºC Double-sided alloy casing with cooling fans The surface temperature is less than 60°C （furnace temperature ≤1000°C) Equipped silicon carbide plates at the bottom, with a maximum load capacity of 100 kg Sliding door with a travel distance of 620 mm
Working Temperature	Working Temperature: 1200 °C continuously without sample holding plate 1000°C continuously with sample holding plate Heating rate:    10°C/min (recommended) Stability:     ±1 °C
Temperature Controller	Proportional–integral–derivative control (PID control) and auto-tune function 50 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
