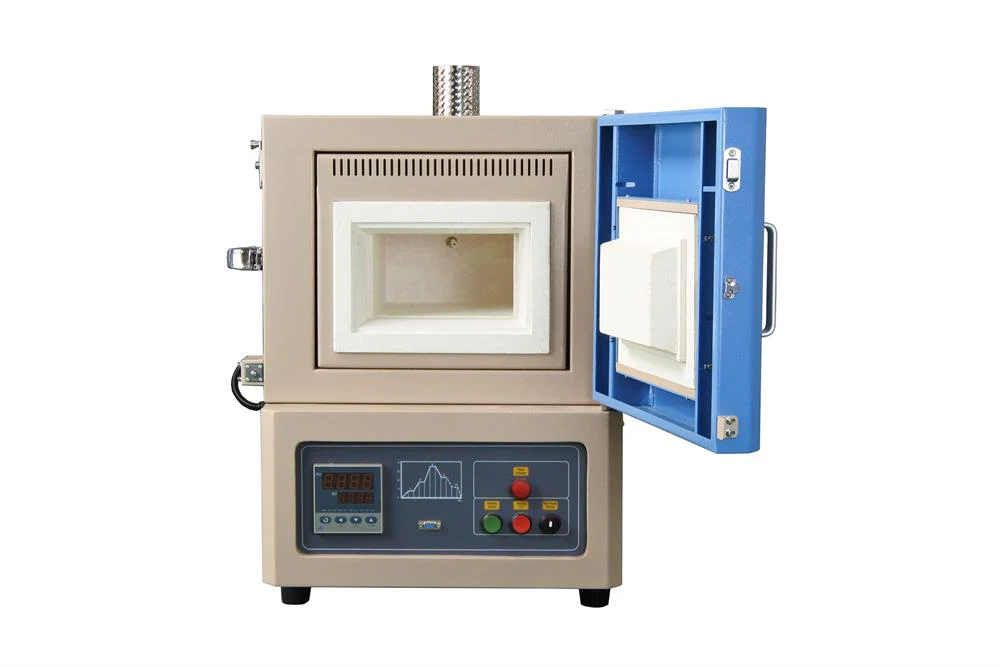

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X
HomeStore

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

$1,049.30

Original: $2,998.00

-65%
1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X—

$2,998.00

$1,049.30

The Story

KSL-1000X is an anti-corrosive muffle furnace with a hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.

SPECIFICATIONS:

Furnace Structure
  • Double-layer structure with a cooling fan to keep furnace exteriors safe to touch
  • Heavy-duty heating corundum chamber where the heating coil is inserted inside
  • One venting port is built on top of the furnace
  • Can processing corrosive material
Heating Chamber
  • Material: sintered corundum
  • Dimensions: 12" D x 8" W x 5" H
  • Heating element: FeCrAl coil inserted inside the chamber
  • Three sides heating: left, right & bottom.
  • K type thermal couple with alumina protection sleeve
  • Venting port of alumina on the top of the chamber

Power
  • 4 kW
  • AC 208V-240V single phase, 50/60 Hz
  • Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement

Working Temperature
  • Max. 1050°C ≤ 2 hours
  • 1000°C continuously
  • Temperature Accuracy: +/- 1° C
  • Heating Rate: ≤ 10°C / min
Temperature Controller
  • FA-YD518P-AG temperature controller is included
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default RS485 PC communication port
  • Thermocouple: K Type
Laptop & software (Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) .
  • Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • Note: The software is only compatible with MTI’s Temperature Controller
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at an extra cost

Application Notes
  • For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

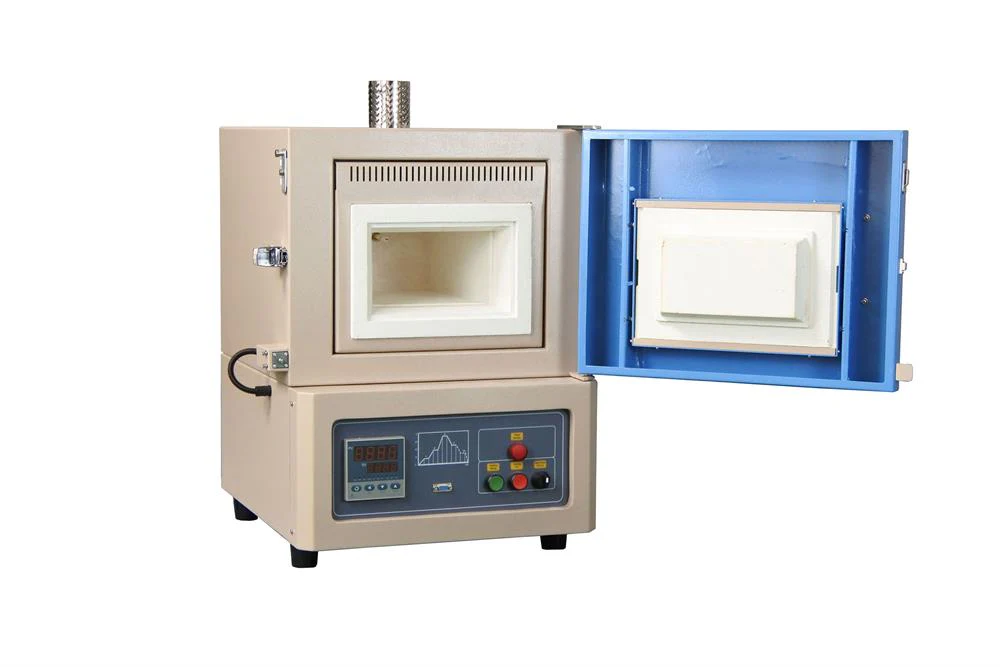

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

KSL-1000X is an anti-corrosive muffle furnace with a hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.

SPECIFICATIONS:

Furnace Structure
  • Double-layer structure with a cooling fan to keep furnace exteriors safe to touch
  • Heavy-duty heating corundum chamber where the heating coil is inserted inside
  • One venting port is built on top of the furnace
  • Can processing corrosive material
Heating Chamber
  • Material: sintered corundum
  • Dimensions: 12" D x 8" W x 5" H
  • Heating element: FeCrAl coil inserted inside the chamber
  • Three sides heating: left, right & bottom.
  • K type thermal couple with alumina protection sleeve
  • Venting port of alumina on the top of the chamber

Power
  • 4 kW
  • AC 208V-240V single phase, 50/60 Hz
  • Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement

Working Temperature
  • Max. 1050°C ≤ 2 hours
  • 1000°C continuously
  • Temperature Accuracy: +/- 1° C
  • Heating Rate: ≤ 10°C / min
Temperature Controller
  • FA-YD518P-AG temperature controller is included
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default RS485 PC communication port
  • Thermocouple: K Type
Laptop & software (Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) .
  • Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • Note: The software is only compatible with MTI’s Temperature Controller
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at an extra cost

Application Notes
  • For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
