$173.25
Original: $495.00
-65%LSGM Single Crystal Substrate, 10x10x0.5 mm,< 001> ori. 2SP,—
$495.00
$173.25The Story
-
Orientation: (001) +/-2 o
-
Size: 10x10 mm x 0.5 mm
-
Polish: two sides optical grade polished
-
Surface finish (RMS or Ra) : < 10A
- Packed: each in membrane box

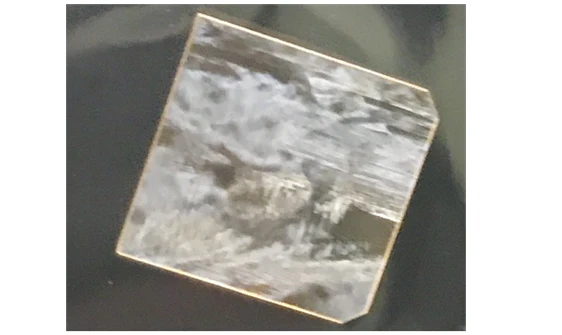

- Note: there is a twin structure Visibale on polished surface
| Chemistry | La0.95Sr0.05Ga0.95Mg0.05O3-δ (LSGM) |
| Crystal growth method | CZ |
| Crystal Structure | a = 5.493 Å, b = 5.533 Å c=7.782 Å |
| Melting point | ~ 1500oC |
| Note | LSGM is new crystal for MTI. We still is in R&D to improve the quality We found many domain or tiwn defect in side single crystal similat ot LaAlO3 which results in crystal rocking curve splited as below.  Usually the defect dose not effect film growth. The buffer layer may be needed to ge better epi filmWe don;t accept the return because the defect Thank you for help us to R&D new single crystal |
| References |
|
| Note |

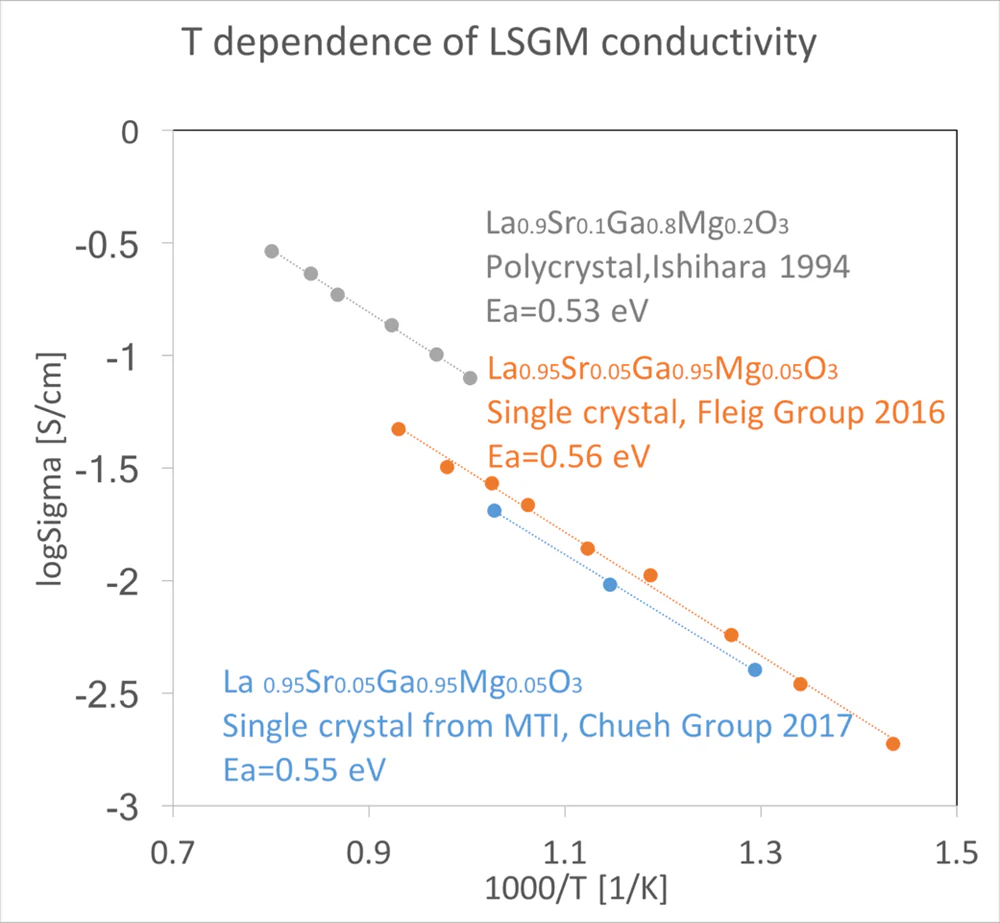

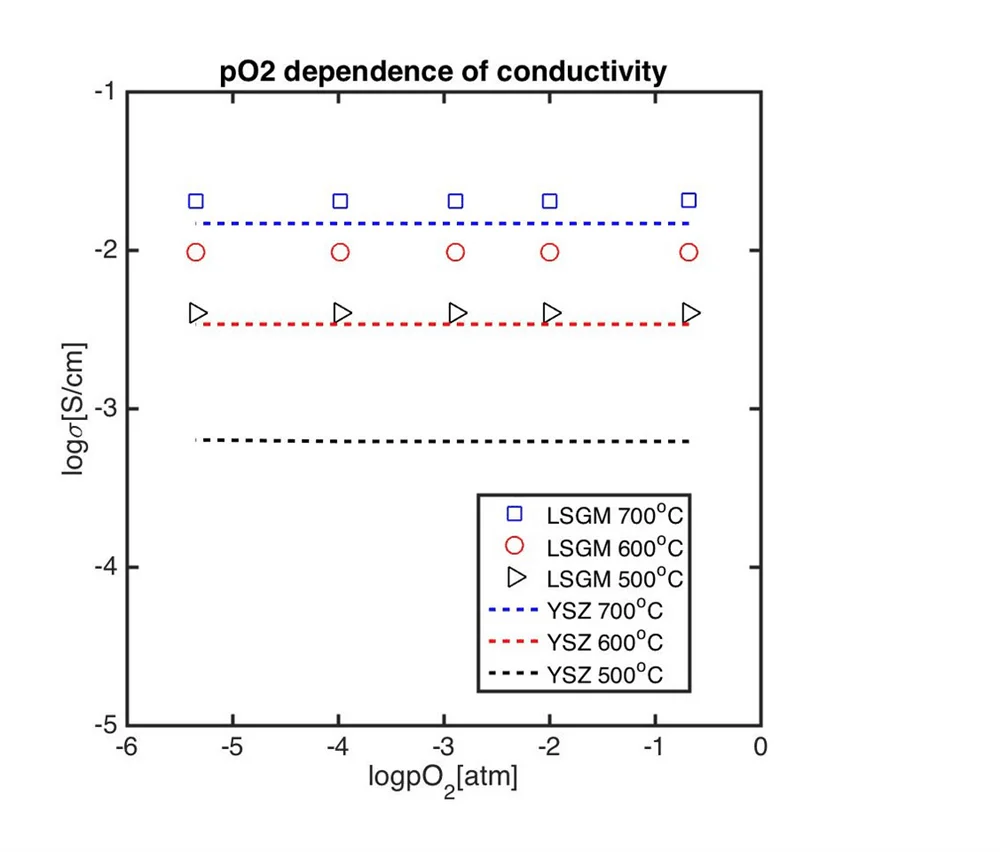

Powder XRD Resistivity vs Temp Resistivity vs p O2
