The Story

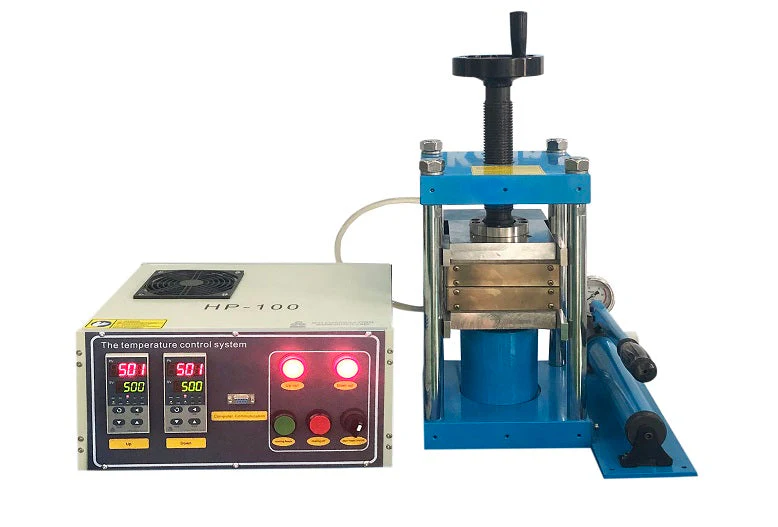

YLJ-HP100XX is a optional 500°C or 750°C Max. lamination hot press, which consists of a 24T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately. The platens ( 135 x 135 mm area) are made of hardened Cr12MoV or SS310 alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows the heated plate to get faster cooling. One pressure gauge (300 kN) is also mounted to monitor the pressure applied on the platen. It is an excellent tool to prepare polymer and ceramic samples, and SOEC cells (solid-oxide electrolyzer cells).

SPECIFICATIONS:
Hydraulic Press
  • The hydraulic pump and hydraulic cylinder are separated for easy replacement
  • Max. Force: 24T
  • Manual operation
Max. Working Pressure
Gauge Displayed Pressure Value (MPa)  5  10   15   20   25   30  35   40   45
Actual Force Applied on the Hydraulic Cylinder (Ton) 4  6  9  11  14  17  19  22  24
  • The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece
  • For calculating the actual pressure (MPa) applied to your working piece, please follow the equations below:
  • P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
Pressure Gauge
  • Measuring Accuracy is ± 1.5 T
  • The reading from pressure gauge is different with that applied on samples.
Heated Platen Area
  • Platen Area: 135 mm x 135 mm
  • Material: Harden Cr12MoV alloy for 500°C version ( SS310 for 750oC version)
  • Surface: Flattening with CNC grinding
  • The parallelism between two plates: < 0.05 mm within 10"x10" area
  • Plate surface roughness: < 2 microns
Max. Travel Distance
  • 58 mm (that means the thickest sample should be below 58 mm).
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm)
Max. Working Temperature
  • 450°C continuous with water cooling
  • 500°C for less than 30 minutes with water cooling
  • 750°C version is available upon request at extra cost.
  • 650°C continuous with water cooling.
Heating Rate & Cooling Rate
  • ≤ 5°C/min
Water Cooling
  • Two 1/4" water pipe connectors.
  • A water chiller is required but not included.
  • Our KJ5000 water chiller is available.
  • An optional electric hydraulic pump for automatic pressure control is also available. (Pic below )


Temperature Control
  • Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction
  • Temperature accuracy ±2°C.
Power Requirement
  • 208 - 240 VAC, 50/60Hz, single phase
  • 2.5 kW max.
  • 15 A circuit breaker is required for 220 V, 5' length power cable included, but no plug
Compliance
  • CE Certified for the whole furnace
  • NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply
 Application not This hot -press can be used inside glovebox with Ar and N2 gases



500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

YLJ-HP100XX is a optional 500°C or 750°C Max. lamination hot press, which consists of a 24T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately. The platens ( 135 x 135 mm area) are made of hardened Cr12MoV or SS310 alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows the heated plate to get faster cooling. One pressure gauge (300 kN) is also mounted to monitor the pressure applied on the platen. It is an excellent tool to prepare polymer and ceramic samples, and SOEC cells (solid-oxide electrolyzer cells).

SPECIFICATIONS:
Hydraulic Press
  • The hydraulic pump and hydraulic cylinder are separated for easy replacement
  • Max. Force: 24T
  • Manual operation
Max. Working Pressure
Gauge Displayed Pressure Value (MPa)  5  10   15   20   25   30  35   40   45
Actual Force Applied on the Hydraulic Cylinder (Ton) 4  6  9  11  14  17  19  22  24
  • The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece
  • For calculating the actual pressure (MPa) applied to your working piece, please follow the equations below:
  • P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
Pressure Gauge
  • Measuring Accuracy is ± 1.5 T
  • The reading from pressure gauge is different with that applied on samples.
Heated Platen Area
  • Platen Area: 135 mm x 135 mm
  • Material: Harden Cr12MoV alloy for 500°C version ( SS310 for 750oC version)
  • Surface: Flattening with CNC grinding
  • The parallelism between two plates: < 0.05 mm within 10"x10" area
  • Plate surface roughness: < 2 microns
Max. Travel Distance
  • 58 mm (that means the thickest sample should be below 58 mm).
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm)
Max. Working Temperature
  • 450°C continuous with water cooling
  • 500°C for less than 30 minutes with water cooling
  • 750°C version is available upon request at extra cost.
  • 650°C continuous with water cooling.
Heating Rate & Cooling Rate
  • ≤ 5°C/min
Water Cooling
  • Two 1/4" water pipe connectors.
  • A water chiller is required but not included.
  • Our KJ5000 water chiller is available.
  • An optional electric hydraulic pump for automatic pressure control is also available. (Pic below )


Temperature Control
  • Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction
  • Temperature accuracy ±2°C.
Power Requirement
  • 208 - 240 VAC, 50/60Hz, single phase
  • 2.5 kW max.
  • 15 A circuit breaker is required for 220 V, 5' length power cable included, but no plug
Compliance
  • CE Certified for the whole furnace
  • NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply
 Application not This hot -press can be used inside glovebox with Ar and N2 gases



You may also like

-65%NEW
Thumbnail 1Thumbnail 2

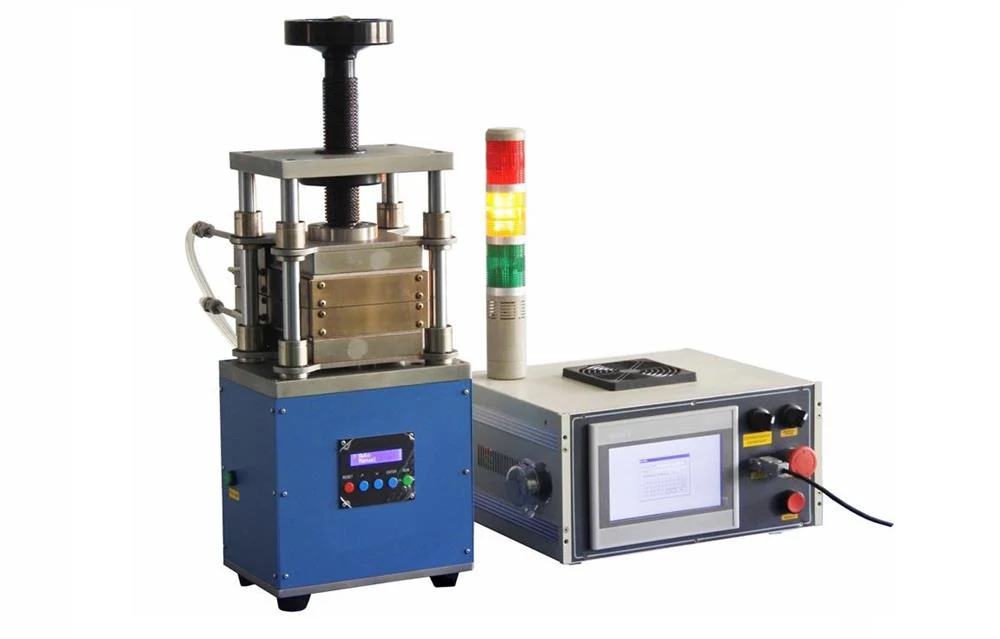

5T Precision Electric Mechanic Laminating Heating Press (500°C Max, 135x135 mm) - YLJ-HP-100E

$28,996.00

$10,148.60

NEW
Thumbnail 1

1500C Max. Muffle Furnace with 10x10x12" Chamber & Double Doors for Fuel Cell Test - KSL1500XDD

$16,995.00

NEW
Thumbnail 1Thumbnail 2

9 KN (+/- 5N) Lamination Hot Press (200x150 mm) up to 150C with Precision Pressure Controller - YLJHP80

$9,685.00

-65%NEW
Thumbnail 1Thumbnail 2

200C Max. 6T Hydraulic Lamination Hot Press (12x12 cm area) - YLJ-HP60-LD

$2,698.00

$944.30

NEW
Thumbnail 1Thumbnail 2

400°C Max. 40T Large Hydraulic Laminating Hot Press with Optional 15" or 24" Square Platen - YLJ-HP-L

$49,998.00

-65%NEW
Thumbnail 1Thumbnail 2

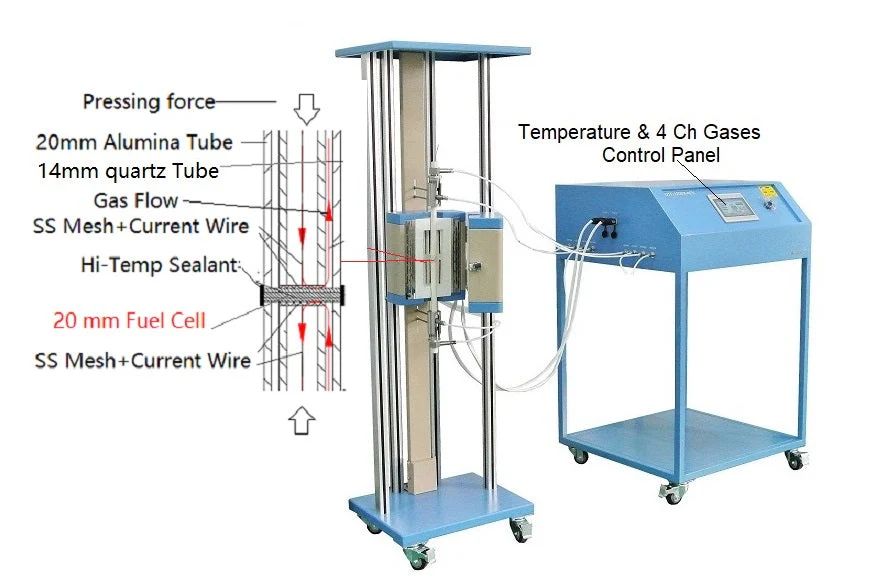

Vertical Tube Furnace for Testing Small Solid Oxide Fuel Cell (D20 mm, 1000°C, SOFC) - OTF-1200X-S-VT-C4

$28,998.00

$10,149.30

-65%NEW
Thumbnail 1Thumbnail 2

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP

$34,998.00

$12,249.30

-65%NEW
Thumbnail 1Thumbnail 2

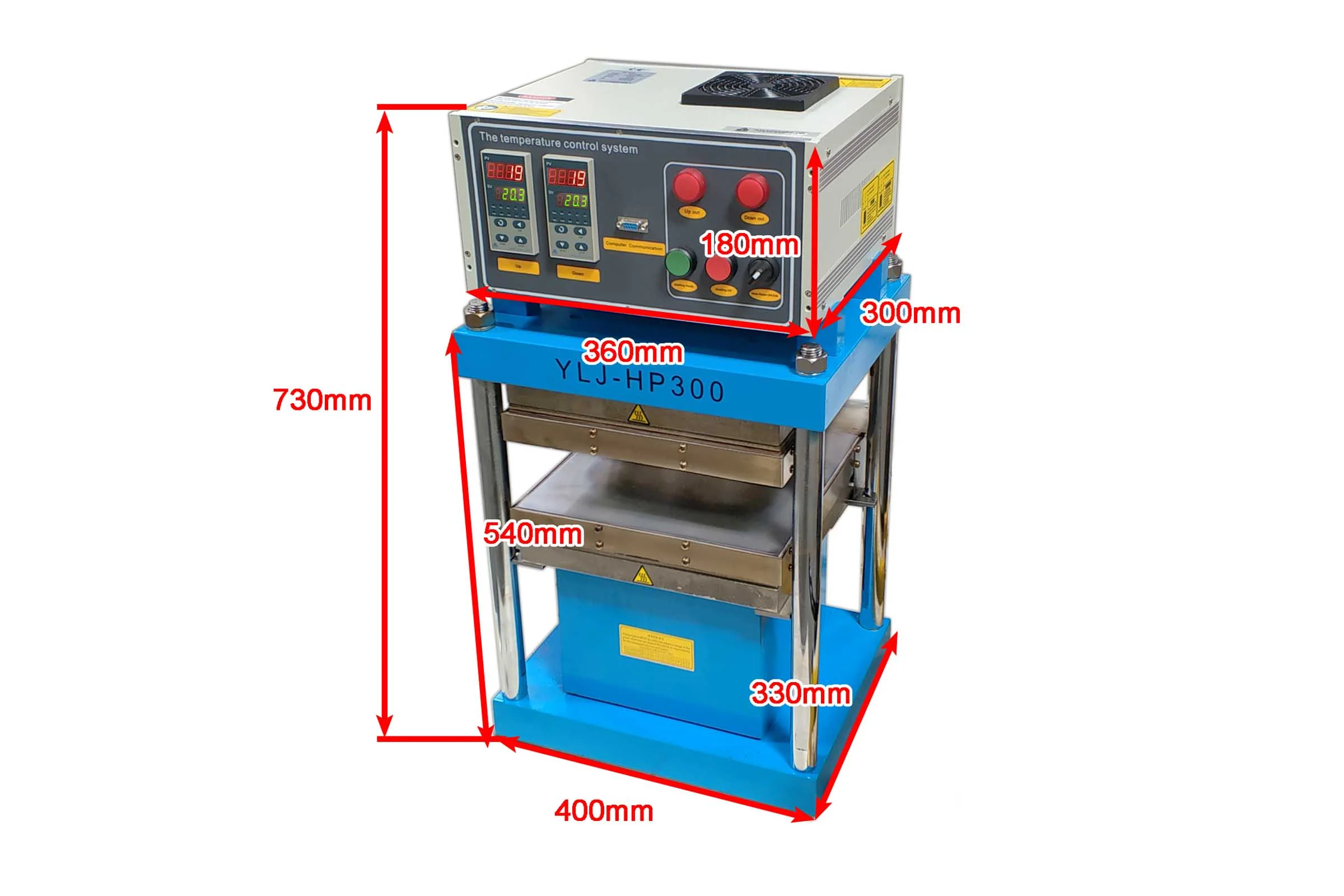

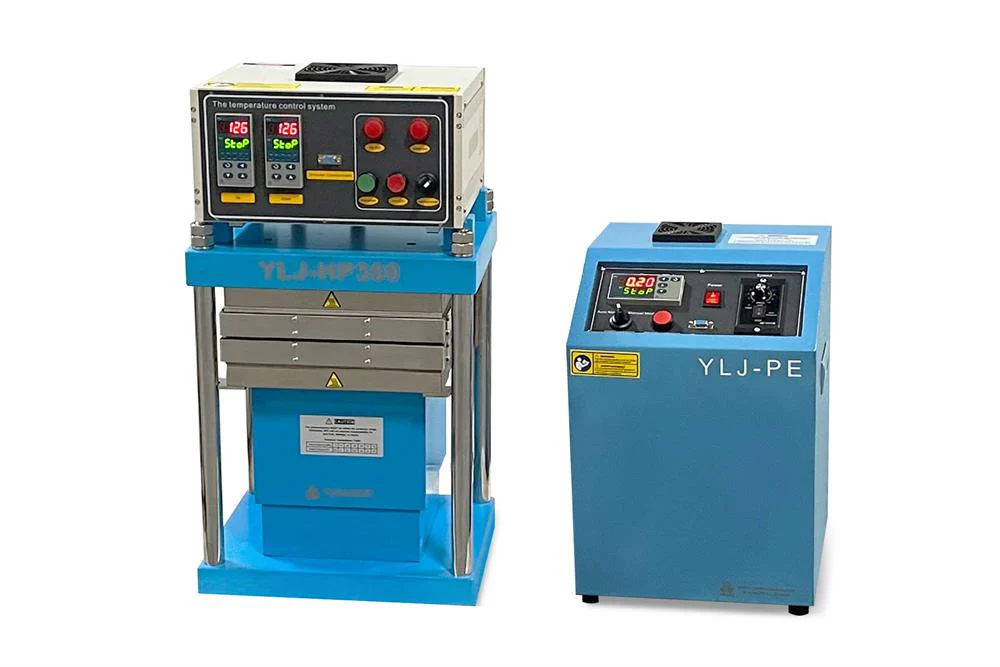

200°C Max 40 T Precision Laminating Hot Press (12" x 12" area) with Electric Hydraulic Pump - YLJ-HP300E

$13,995.00

$4,898.25

NEW
Thumbnail 1

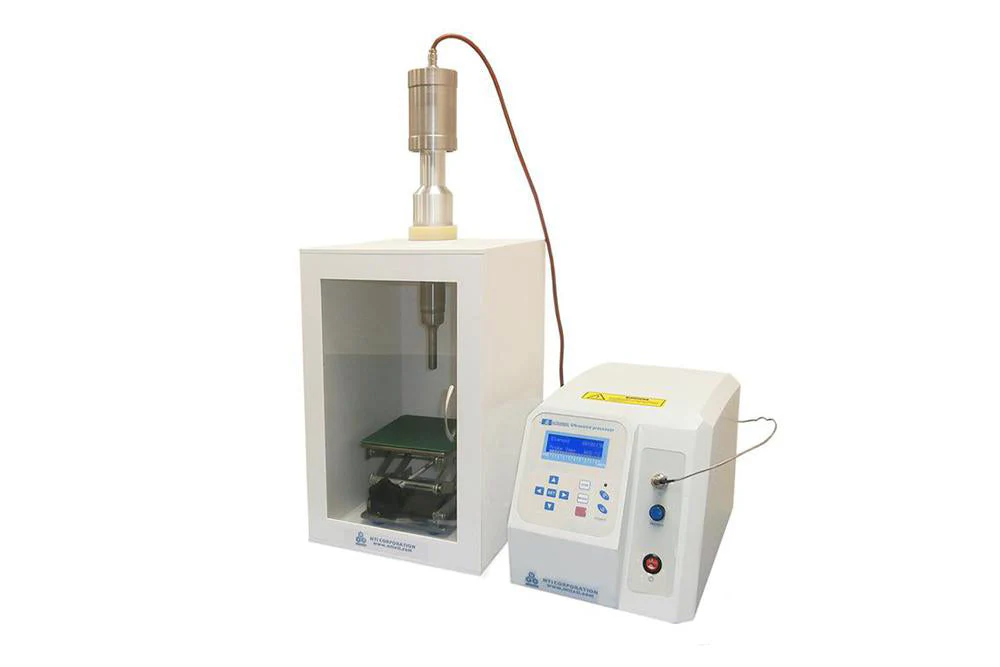

300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSKUSP3NLD

$3,986.00

-65%NEW
Thumbnail 1Thumbnail 2

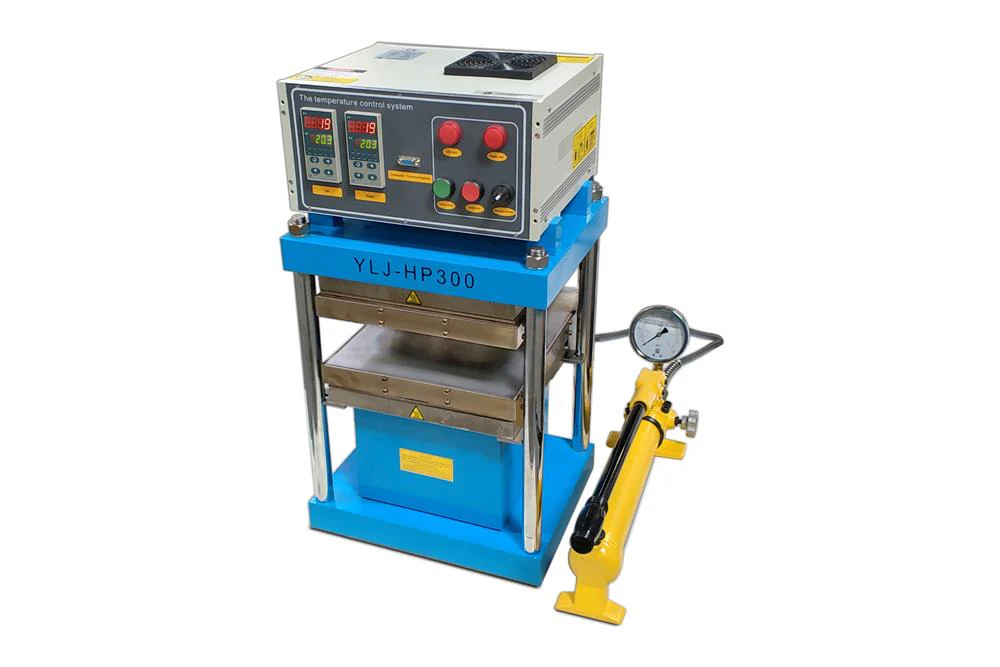

500°C Max 30 T Precision Laminating Hot Press (12" x 12" area) with Dual Temp. Controller - YLJ-HP300
