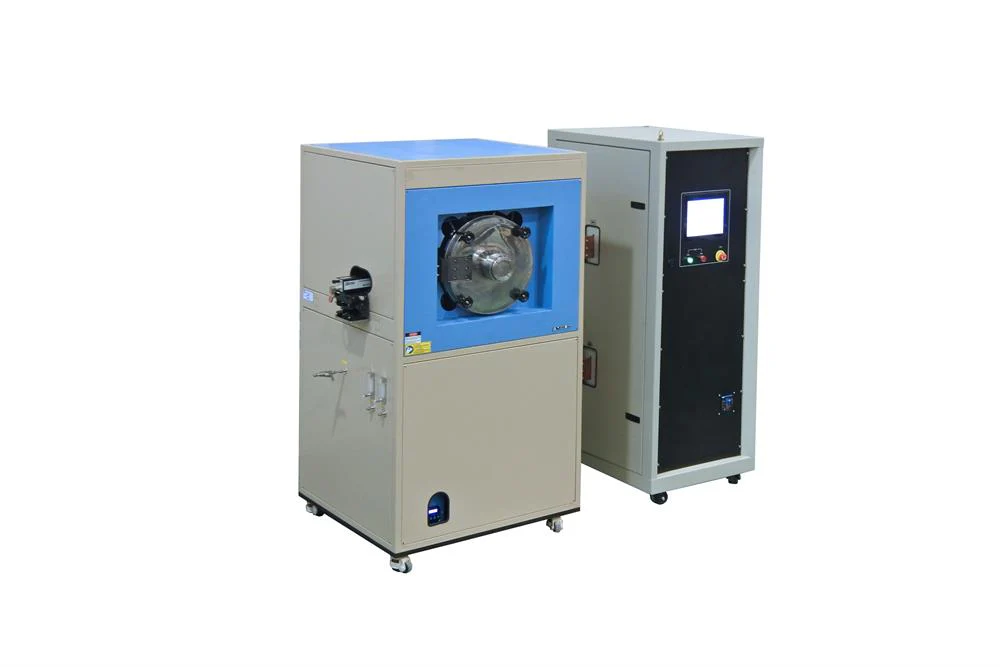

2250ºC Max. Spark Plasma Sintering Furnace ( SPS ) up to 100 MPa - YLJ-SPS-5T

YLJ-SPS-5T is a Spark Plasma Sintering System (SPS) designed for a wide range of material research up to 2250ºC. It can be used for sintering, bonding, surface treatment, and synthesis. The sample material can be metals, ceramics, nanostructured material, and amorphous material. This system perfectly fits solid electrolyte and electric thermal material research.

Specification

Configuration	Stainless Steel Chamber - Suitable for Controlled Inert Gas or Vacuum Condition 5T max electric sintering press unit with graphite die (100 MPa Max.) Sintering DC power supply Vacuum system Precision temperature control Touchscreen control panel
Power	460-480VAC, 3 phase, 50/60Hz, 30 kW Optional working voltage, 208-240V, 380V, 400V, 415V, 3p, is available upon request.
Output Current	DC 0 - 3000 A (Manual or PID Control)
Output Voltage	DC 0 - 10 V (Manual, or PID Control)
Working Temperature and thermocouple	200ºC - 2000ºC with C-type thermocouple 900ºC - 2250ºC with infrared pyrometer
Temperature controller	Precision Eurotherm temperature controller is built-in Temperature resolution 0.1ºC Temperature accuracy ±10°C
Electric Mechanical Press	Electric mechanical press Max pressure: 5T Digital Pressure control and monitoring.
Sintering Die Set Dimension	OD. 85- 100 mm ID: 12.75 mm (1/2") Up to 100 MPa Other graphite die with 10 mm, 25.4 mm diameter is available upon request.
Vacuum Chamber	304 stainless steel vacuum chamber.   Chamber size:  350 mm Dia x 350 mm L Vacuum Level：  7.5E-2 torr with a mechanical pump （ not included ） 10e-5 torr  with optional turbopump (click picture below right to order)
Pressure Control System	PLC with 11" touchscreen panel
Pressure Accuracy	±3kgf
Max Heating Rate	<200ºC/Minute
Water Cooling	56L/minute recirculating water chiller is not included.  Please click the picture left to order
Compliance	CE certified NRTL certification is NOT available temporarily.
