The Story

YLJ-WD-6 is a wire drawing machine with a series of diamond dies to make thin wire from 1 mm to 0.2 mm. This device is necessary for wire preparation of metallic wire for AM (Click here to see details) or called WAAM ( Wire Arc Additive manufacture )

SPECIFICATIONS:

Power
  • 208- 240V, single phase, 50/60Hz
  • 2.5 KW AC motor
  • 380VAC, three-phase is available upon request
Wire Drawing Die
  • Two sets of 12-hole diamond die plates are included for precision wire drawing
    • The first set of hole diameters: 1.0, 0.9, 0.8, 0.7, 0.65, 0.60, 0.55, 0.50, 0.45, 0.425, 0.40, 0.375 ( mm)
    • The second set of hole diameters: 0.35, 0.325, 0.30, 0.275, 0.25, 0.225, 0.20 ( mm)
  • For the most metallic with RC < 50, can draw to 0.2 mm
  • A coolant praying head is included
  • The automatic winding device is built in
  • Note: Diamond die is consumable
  • Customize the die is available
Drawing Speed
  • 0 - 50 mm/minute adjustable
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never draw materials with hardness > 50HRC
  • For some material, you may need to anneal it in a furnace after each rolling to avoid work hardening



Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

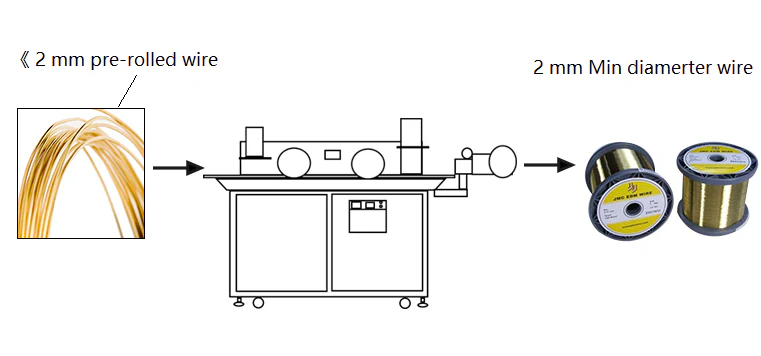

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

YLJ-WD-6 is a wire drawing machine with a series of diamond dies to make thin wire from 1 mm to 0.2 mm. This device is necessary for wire preparation of metallic wire for AM (Click here to see details) or called WAAM ( Wire Arc Additive manufacture )

SPECIFICATIONS:

Power
  • 208- 240V, single phase, 50/60Hz
  • 2.5 KW AC motor
  • 380VAC, three-phase is available upon request
Wire Drawing Die
  • Two sets of 12-hole diamond die plates are included for precision wire drawing
    • The first set of hole diameters: 1.0, 0.9, 0.8, 0.7, 0.65, 0.60, 0.55, 0.50, 0.45, 0.425, 0.40, 0.375 ( mm)
    • The second set of hole diameters: 0.35, 0.325, 0.30, 0.275, 0.25, 0.225, 0.20 ( mm)
  • For the most metallic with RC < 50, can draw to 0.2 mm
  • A coolant praying head is included
  • The automatic winding device is built in
  • Note: Diamond die is consumable
  • Customize the die is available
Drawing Speed
  • 0 - 50 mm/minute adjustable
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never draw materials with hardness > 50HRC
  • For some material, you may need to anneal it in a furnace after each rolling to avoid work hardening
