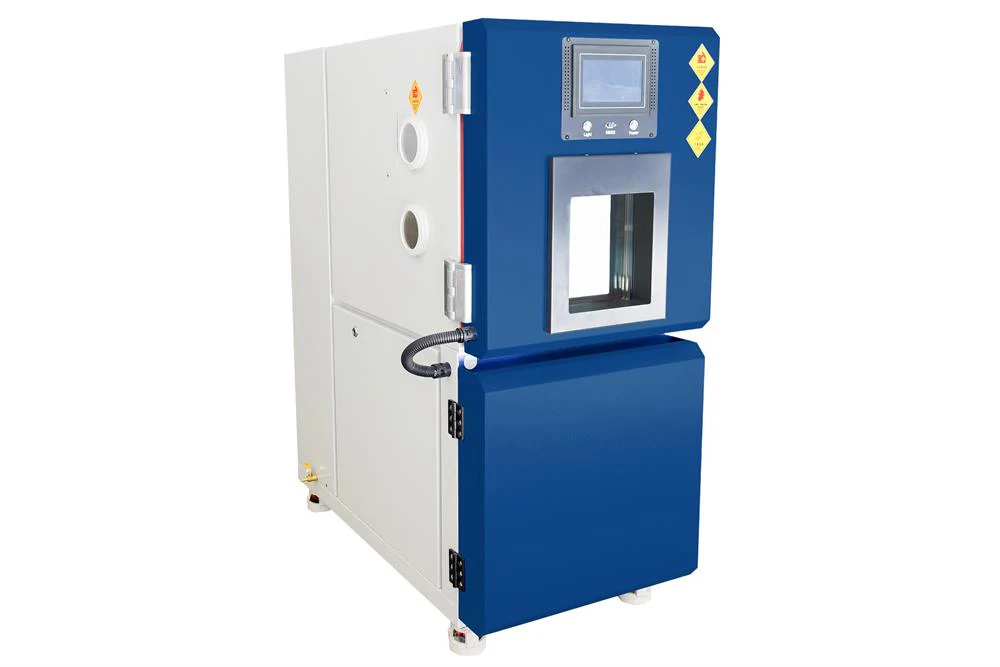

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 °C, 20% - 98% RH, 80L) - MSK-TE906-H80L

MSK-TE906-H80L is an 80L Environmental Chamber for Temperature and Humidity (HTHH) test of rechargeable battery & battery packs and other thermal tests from 0ºC to +100ºC and from 20% to 98% relative humidity.



Power	Voltage: 208 - 240VAC, single phase, 50/60 Hz) [A 5000W transformer can be used with input AC110V] Operation Power: 2.5 kW

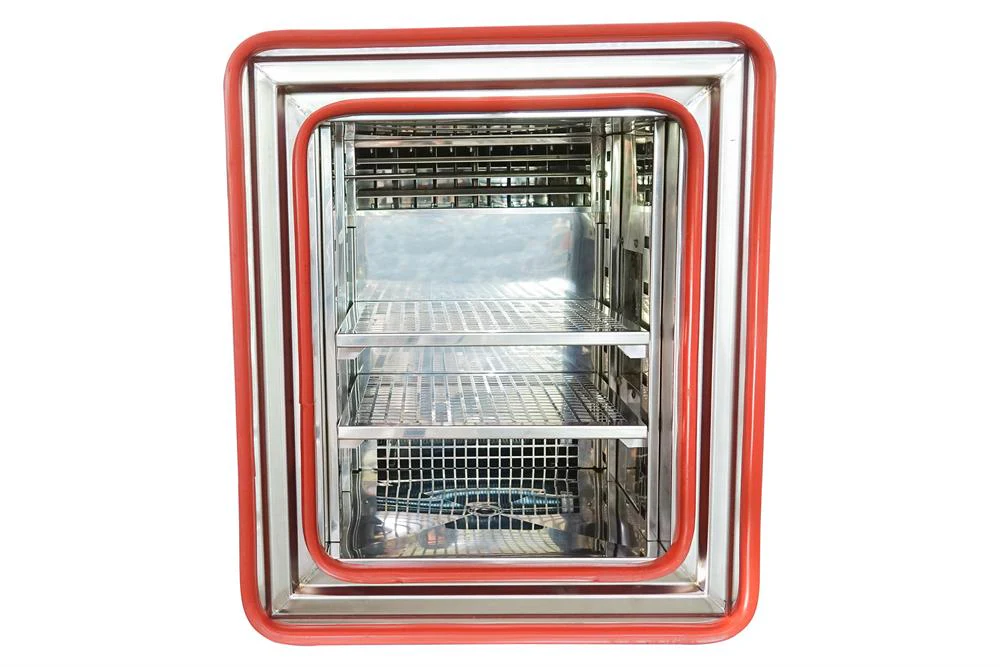

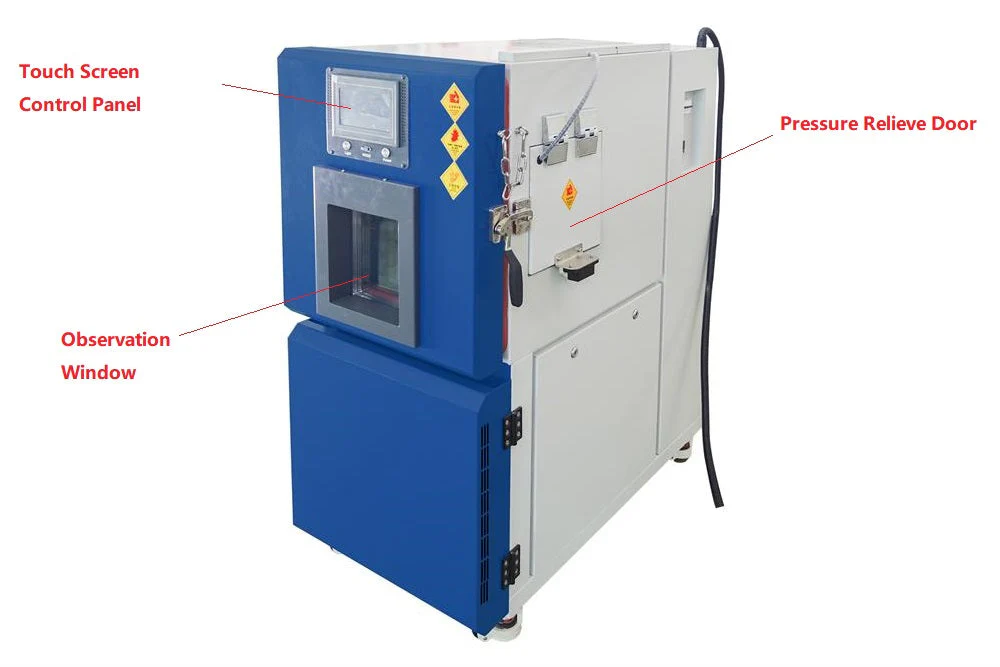

Test Chamber Features	Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass Inside Dimensions: 400 mm W x 500 mm H x 400 mm D Pressure Relief Door: 310 mm x 302 mm Window: 420 mm x 270 mm, vacuum sealed Capacity: 80 Liters Testing Hole: 2 holes with 100 mm diameter
Heating & Cooling System	Range: 0ºC to +100ºC Resolution: +/- 0.5 ºC Accuracy: +/- 1 ºC Heating rate: 4 - 5 ºC/min (nonlinear) Cooling rate: 1 - 1.2 ºC/min (nonlinear)

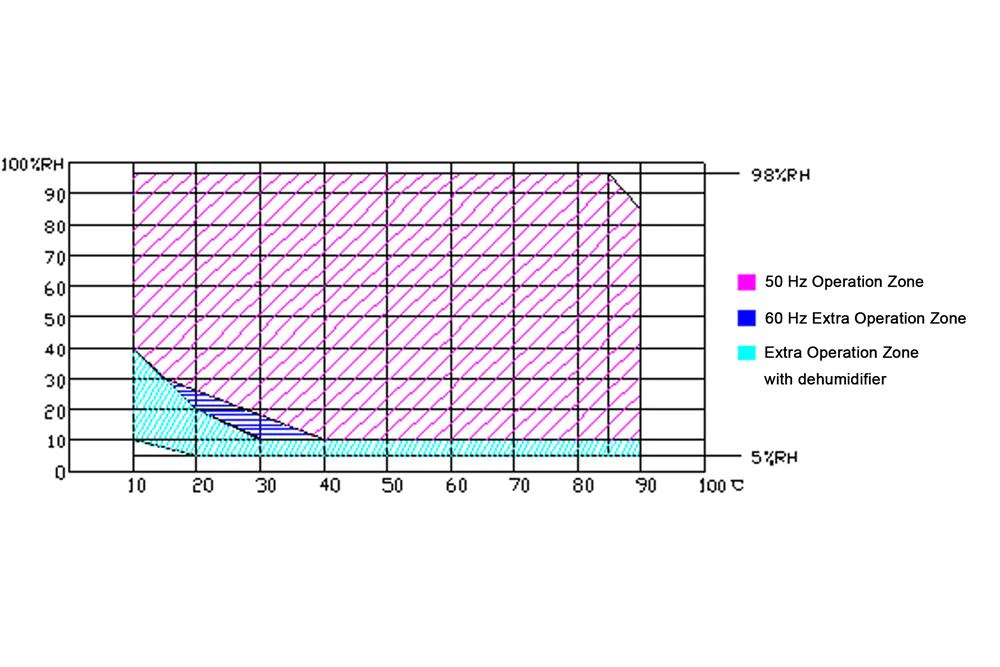

Humidity Control	Range: 20% - 98% RH Accuracy: +/- 2.5 RH
Compliance	CE certified NRTL or CDSA certification is available upon request at the extra cost
Operation Environment	Temperature: 25 ± 3 ºC Humidity: 30% - 90% RH No vibration or electromagnetic interference
