The Story

GSL-1000-TGA is a mini tube furnace with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective and space-saving tool to analyze the phase transition of various materials from 100°C to 1000°C under a controlled atmosphere to find phase transition. It can also be used for small sample annealing or sintering.

SPECIFICATIONS

 Furnace Structure
  • Mini Tube furnace with quartz tube of OD 20 mm x ID 17 mm
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • 55 mm heating zone and 15 mm constant temperature zone within +/- 1ºC
  • Vacuum-sealed weight sensor with 0.001 g accuracy
  • Precision temperature controller with 0.1ºC accuracy
  • Vacuum port and gas inlet & outlet ports are built-in
Power
  • 110VAC +/- 10%, single phase, 50/60hz
  • 500W Max
  • 220VAC is available upon request

Temperature Controllers
  • Eurotherm -3000 Programmable temperature controller is built in
  • +/- 0.1 ºC temperature accuracy.
  • Max. heating rate: 20ºC/month
  • One K-type thermocouple.
  • PC control software and interface module are included to show and record the curve both temperature and weight change
  • One brand new laptop computer is included with restored software
Electronic Balance
  • A precision electronic balance is located in the bottom of the heating chamber with a 0.001 g resolution

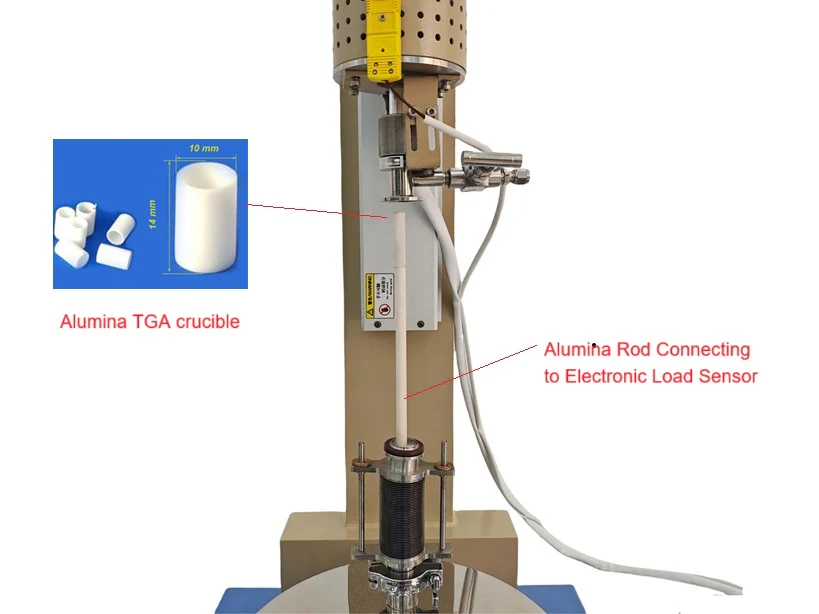

  • The alumina crucible is set on the balance via an alumina rod
  • Max. weighting： 100 g
  • Sample amount: 1 g minimum; 10 g maximum.
  • Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
  • RS485 port and operation software is included
Crucibles

  • Two 1.75 ml alumina crucibles are included. Please click Pic. left to order more
  • The customized crucible is available upon request
Vacuum pump (optional)
  • The TGA can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pump（Pic. 2)
  • Please click the picture below to order the pump and gas delivery system (Pic 3）separately:
  •

 Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.
1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

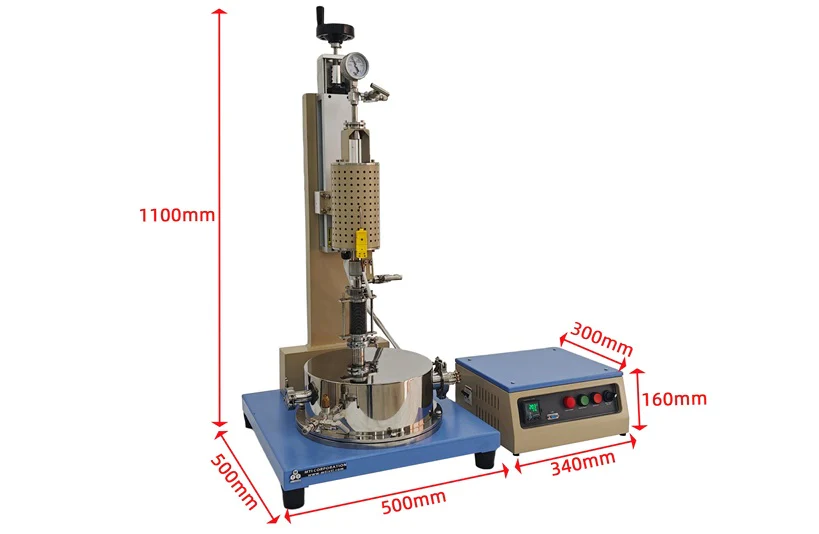

1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA - Image 3
