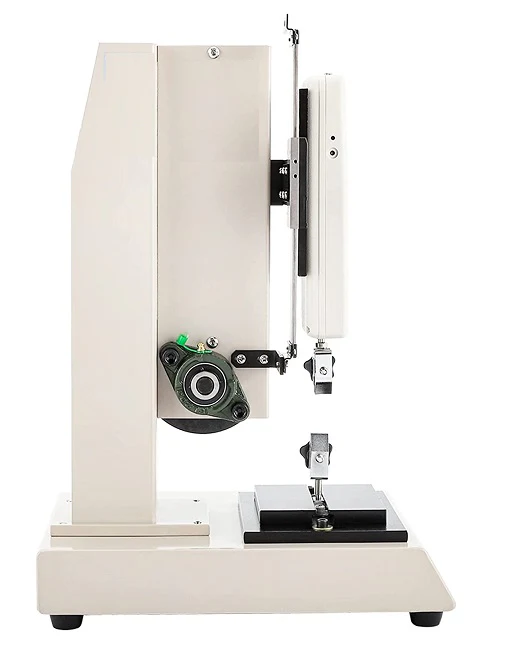

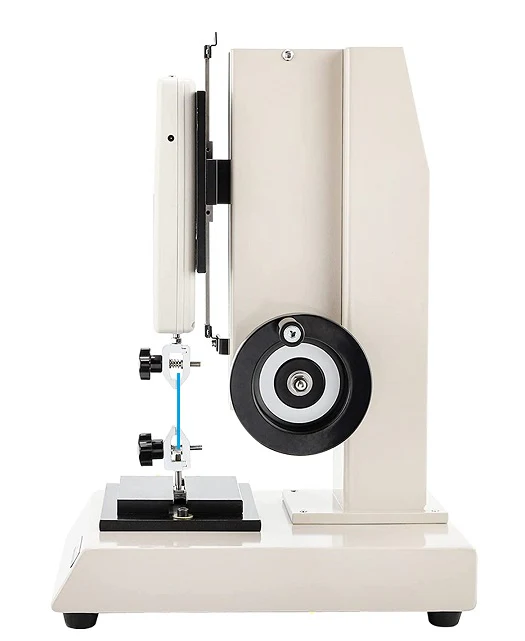

500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N

• USB DATA OUTPUT - The Digital Force Gauge 500N can store up to 999 sets of PEAK test data.
• A USB data cable is included to connect to the laptop and export real-time measurement data.
• LAPTOP and SOFTWARE - a brand new laptop ( 15") and software are included that can export test data or charts (force versus time curve).

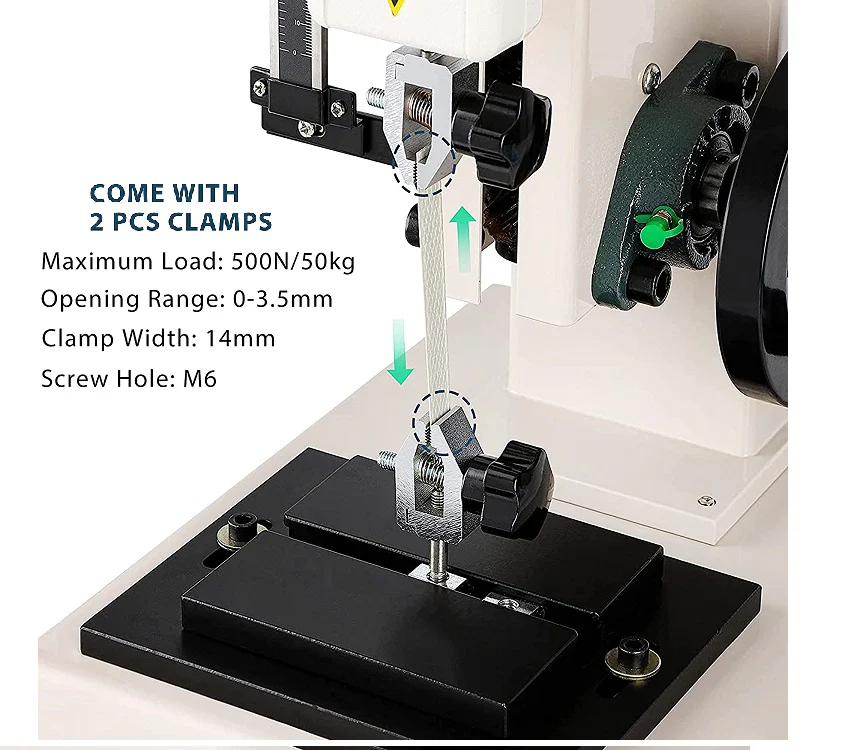

• VARIOUS ACCESSORIES - Digital Force Meter comes with Compression test parts, Tensile test parts, and Extension rod, which are able to meet most simple tests. The gauge and various accessories can be put into the carrying case for convenient storage.

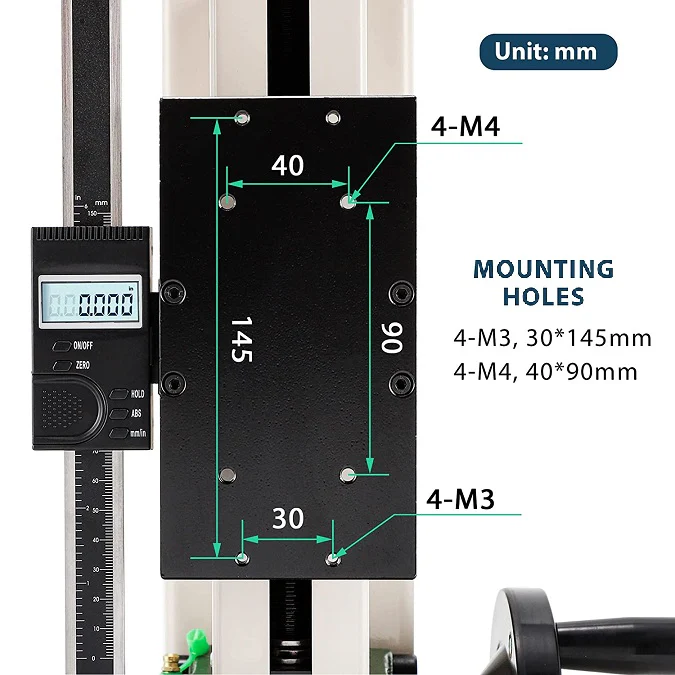

• This Test Stand has a digital displacement scale (no output function), which can help you measure the displacement during the test. Measurement Range: 0-6"/ 0-150mm | Resolution: 0.0005"/ 0.01mm
• GAUGE PARAMETERS - Capacity: 500N/110lbf/50Kgf |
• Resolution: 0.1N/0.01lbf/0.01Kgf | Accuracy: ±0.5%
• Data Output: USB output
• Lithium Battery: 5V, 1700mAh
• Charger: Input (AC 100-240V 50-60Hz), Output (DC 5V 0.5A)

Warranty

• One-year limited warranty
• (Consumable parts such as heating elements, SiC die, and pushing rod are not covered by the warranty )

Compliance

• CE Certified
• NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.
