1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA

1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA

$8,749.30

Original: $24,998.00

-65%
1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA—

$24,998.00

$8,749.30

The Story

KSL-1700X-A2-TGA is a desktop muffle furnace (8L) with a precision TGA (thermal gravimetric analysis) function.  It is a cost-effective tool to analyze the phase transition of various oxide compounds from 100°C to 1700°C  in large quantity samples (250g max) under air ambient conditions.

SPECIFICATIONS

 Furnace Structure
  • Three types of size heating chambers are selectable:
    • 120x120x120mm ( 1.7L )
    • 150 x150 x150 mm ( 3.6L)
    • 200 x 200 x 200mm (8L)  (Demonstrated sample)
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • Heavy duty double layer structure with a cooling fan to keep furnace exteriors safe to touch.
  • Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
  • One φ30mm venting port is built on top of the furnace
  • One φ6mm air inlet is located at one side of the furnace.
            Temperature
            • Maximum Temperature: 1700 (≤30min)
            • Continuous Working Temperature: 1600
            • Recommend Heating Rate: ≤10/min
            • Temperature accuracy: +/- 0.1ºC
            • Heating element: silicon molybdenum rod
            • Thermocouple: B Type
            Temperature Controller
            • Eurotherm 3000 precision temperature controller with 24-segment programmable
            • Over-temperature protection and alarm allow for operation without attendant(s).
            • +/- 1 ºC temperature accuracy.
            • B-type thermocouples
            • Software is included and integrated with a force sensor
            • One laptop is included as a control panel.
            Electronic Balance
            • A precision electronic balance is located at bottom of the heating chamber with a 0.01 g resolution
            • The alumina crucible is set on the balance via an alumina rod
            • Sample amount: 10 g minimum;  250 g maximum.
            • Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
            • RS485 port and operation software is included

            Crucibles
            • One 120 ml alumina crucible is included.  Please click Pic. 1 to order more
            • You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application
            • The customized crucible is available upon request
            • Pic. 1     Pic. 2

            Power
            • 220V Single Phase, 50Hz
            • 5200W
            • Note: Power cable included but without a plug. Please install a plug on your own according to your country or your lab requirement.

             Warranty
            • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

             Compliance
            • CE Certified
            • NRTL or CSA certification is available upon request at extra cost.(please click the marks below to learn details

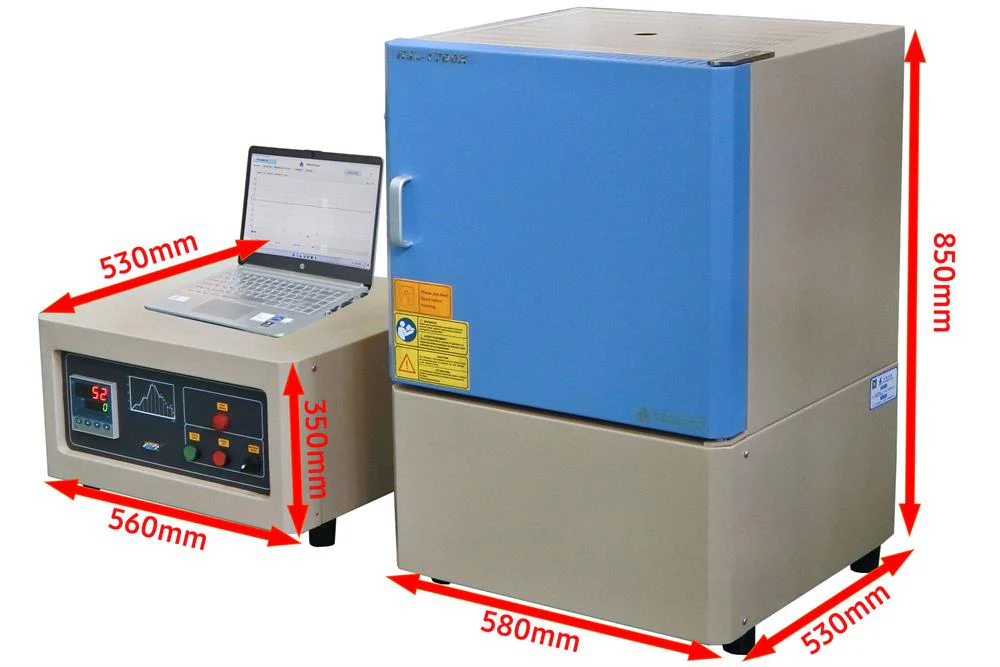

            Dimension
            580*530*850mm (Furnace)
            560*530*350mm (Control Box)

            Net Weight
            ~150kg

            Demo Video
            1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA - Image 2

            Details & Craftsmanship

            Every detail has been carefully considered to bring you the perfect product.

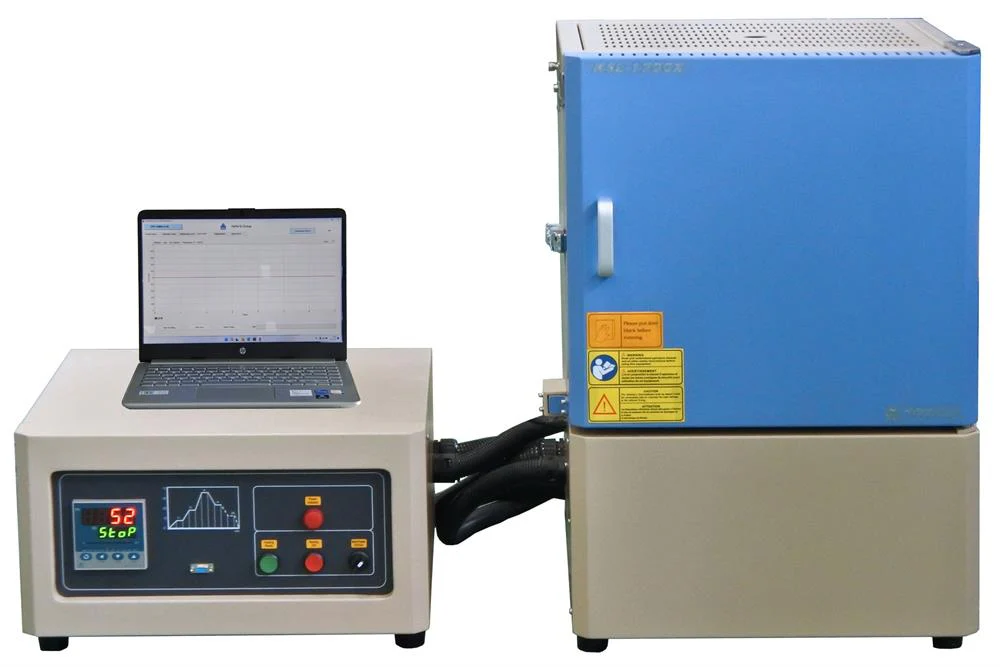

            1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA - Image 3

            Details & Craftsmanship

            Every detail has been carefully considered to bring you the perfect product.

            1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA - Image 4

            Details & Craftsmanship

            Every detail has been carefully considered to bring you the perfect product.

            Description

            KSL-1700X-A2-TGA is a desktop muffle furnace (8L) with a precision TGA (thermal gravimetric analysis) function.  It is a cost-effective tool to analyze the phase transition of various oxide compounds from 100°C to 1700°C  in large quantity samples (250g max) under air ambient conditions.

            SPECIFICATIONS

             Furnace Structure
            • Three types of size heating chambers are selectable:
              • 120x120x120mm ( 1.7L )
              • 150 x150 x150 mm ( 3.6L)
              • 200 x 200 x 200mm (8L)  (Demonstrated sample)
            • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
            • Heavy duty double layer structure with a cooling fan to keep furnace exteriors safe to touch.
            • Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
            • One φ30mm venting port is built on top of the furnace
            • One φ6mm air inlet is located at one side of the furnace.
                      Temperature
                      • Maximum Temperature: 1700 (≤30min)
                      • Continuous Working Temperature: 1600
                      • Recommend Heating Rate: ≤10/min
                      • Temperature accuracy: +/- 0.1ºC
                      • Heating element: silicon molybdenum rod
                      • Thermocouple: B Type
                      Temperature Controller
                      • Eurotherm 3000 precision temperature controller with 24-segment programmable
                      • Over-temperature protection and alarm allow for operation without attendant(s).
                      • +/- 1 ºC temperature accuracy.
                      • B-type thermocouples
                      • Software is included and integrated with a force sensor
                      • One laptop is included as a control panel.
                      Electronic Balance
                      • A precision electronic balance is located at bottom of the heating chamber with a 0.01 g resolution
                      • The alumina crucible is set on the balance via an alumina rod
                      • Sample amount: 10 g minimum;  250 g maximum.
                      • Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
                      • RS485 port and operation software is included

                      Crucibles
                      • One 120 ml alumina crucible is included.  Please click Pic. 1 to order more
                      • You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application
                      • The customized crucible is available upon request
                      • Pic. 1     Pic. 2

                      Power
                      • 220V Single Phase, 50Hz
                      • 5200W
                      • Note: Power cable included but without a plug. Please install a plug on your own according to your country or your lab requirement.

                       Warranty
                      • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

                       Compliance
                      • CE Certified
                      • NRTL or CSA certification is available upon request at extra cost.(please click the marks below to learn details

                      Dimension
                      580*530*850mm (Furnace)
                      560*530*350mm (Control Box)

                      Net Weight
                      ~150kg

                      Demo Video
