The Story

MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage



  • 110 VAC 60Hz/ 240VAC 50 Hz
Slicing Motor Speed
  • 5000-16000 rpm
Chuck
  • Spin speed: 50-3000 rpm
  • Workpiece Diameter: Φ46 mm
  • Workpiece length: 100 mm

Cutting Dics
  • 2" Metal/Inox cutting disc for 4680 and 46110 cylindrical case
  • 3" Fiber cutting disc for 18650, 21700, 26650 cylindrical cases
  • The standard package includes 2 pcs of 2" cutting discs and 2 pcs of 3" cutting discs. Replacement discs are available for purchase.

Cylindrical Case Holder
  • Compactible with 18650, 21700, 26650, 32650, and 4680, etc cells.
  • Standard pakcage includes a set of cylindrical case holders for 18650, 21700, 26650 and 4680 - 46110. 4 pcs per set (different diameters)
  • Replacement cylindrical case holders are available for purchase.
Protective Cover
  • A protective cover with a controlled gas inlet is included for protection.
Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Compatibility
  • MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber.
  • This machine is 12VDC device with UL certified power adaptor, so no NRTL certification is required
Accessories
  • 10 pcs Fiberglass Reinforced blades are included.
  • Die set for cutting 18650, 21700, and 4680 cells are included
  • Additional blades are available upon request.
Dimension
  •  Cutting machine: 375 mm L x220 mm Wx240 mm H
  • Control Box:           370 mm L x 295 mm W x 155 mm H
Weight
  • 10 Kg
Attention
  • Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.







Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

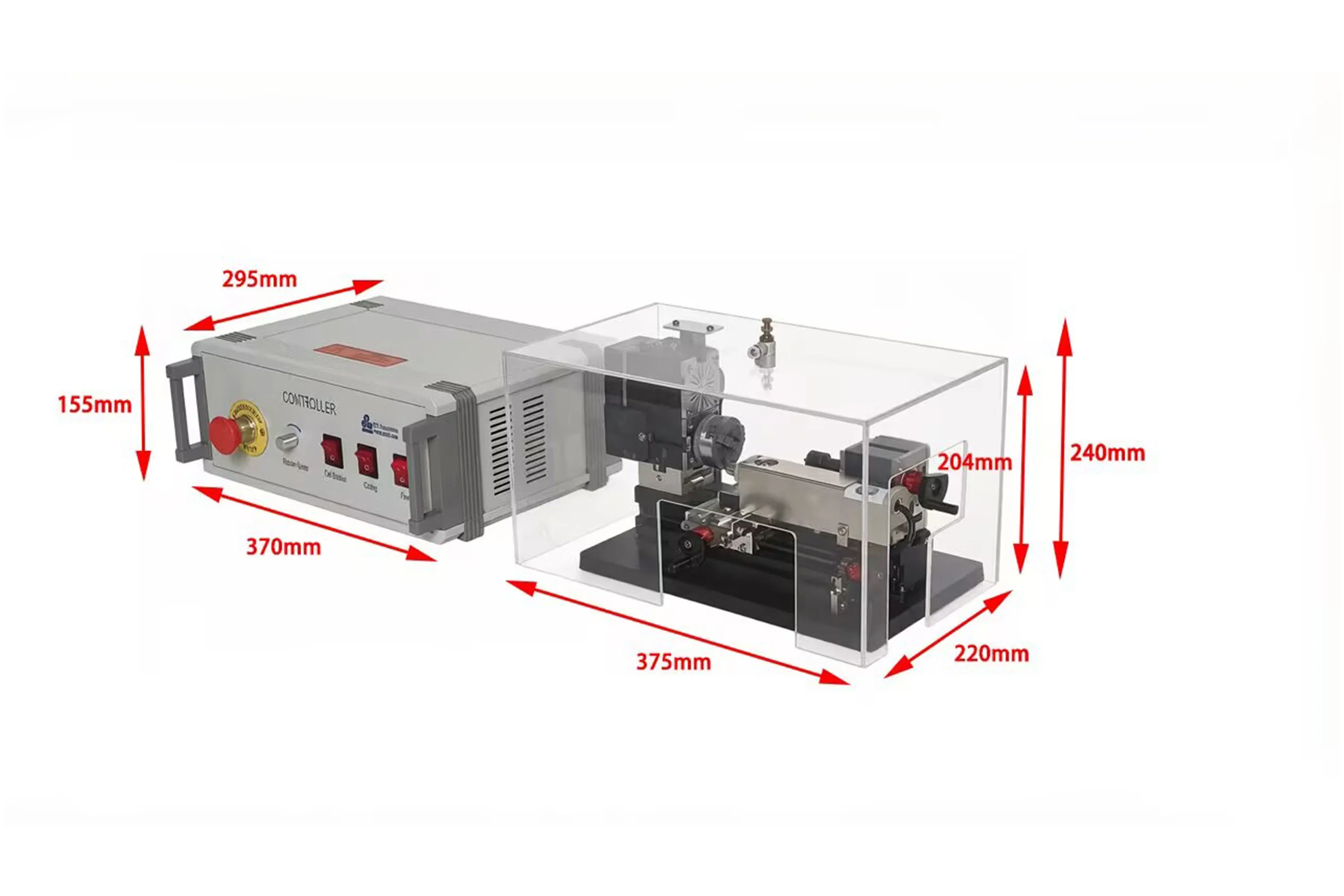

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680 - Image 3
