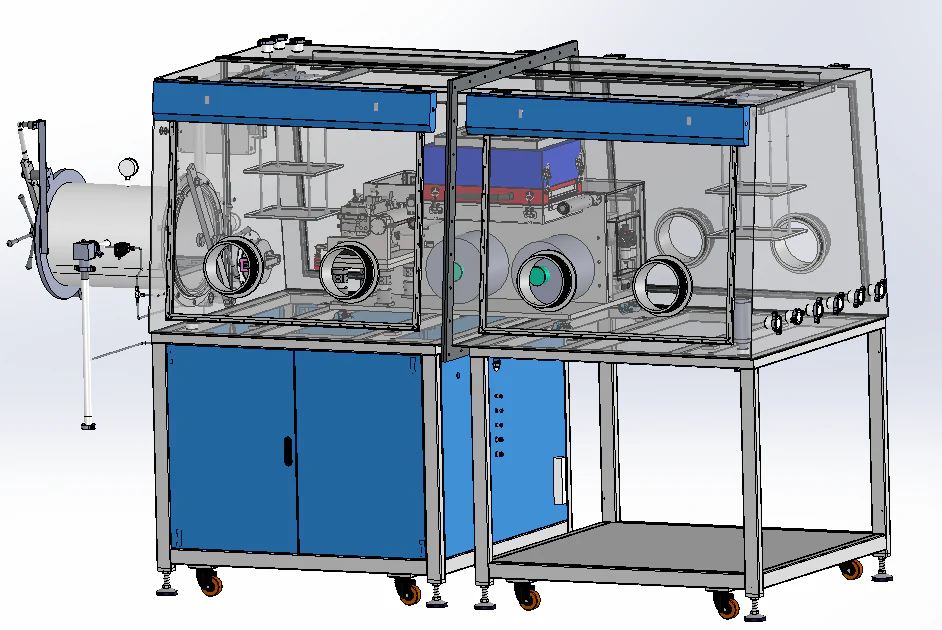

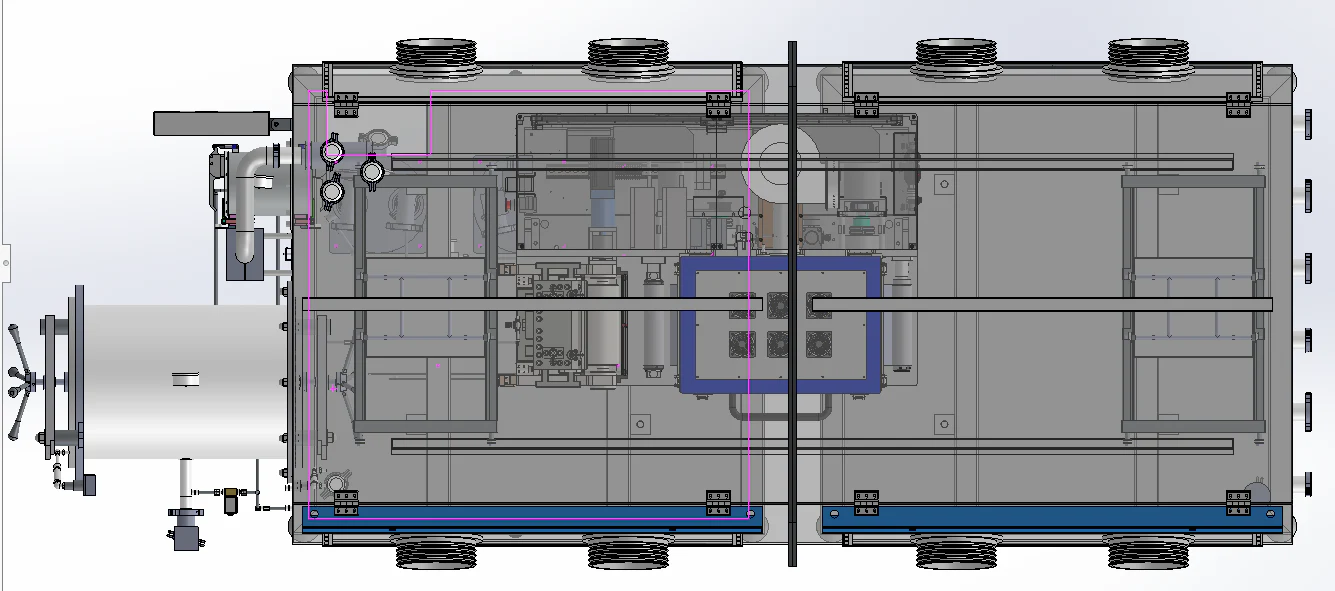

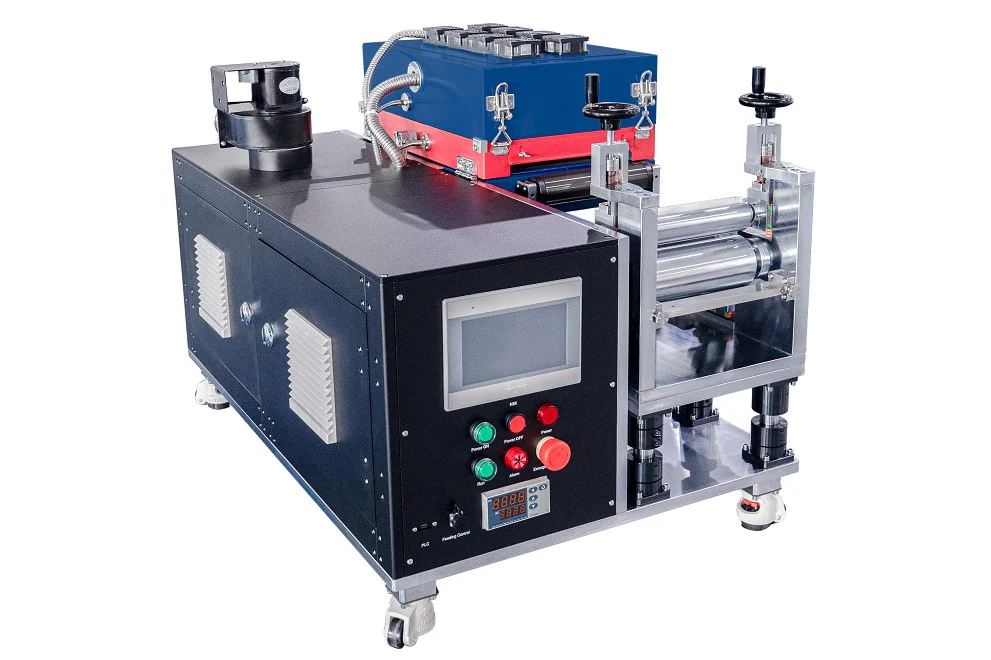

Compact Roll to Roll Coater w/ 160mm Max. Width & 6 Optional Coating Heads (Combination)-MSK-AFA-200

Power

• 208 - 240VAC, 50/60Hz, Single phase
• ~4 KW

6 Type of Coating Heads Optional

(1) Doctor Blade Coating
(2) Reverse Comma Blade (Transforming)
(3) Micro-Gravure Coating

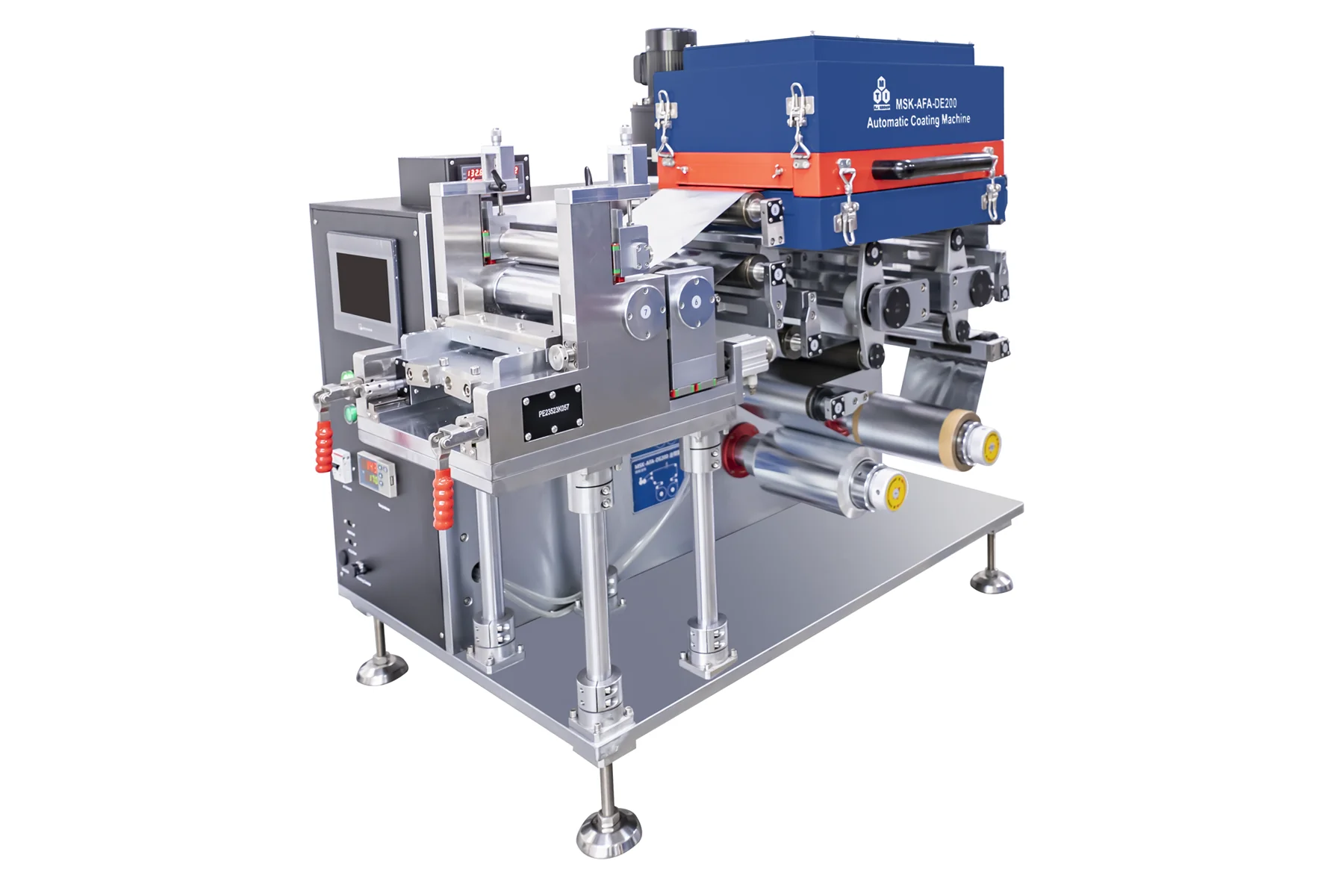

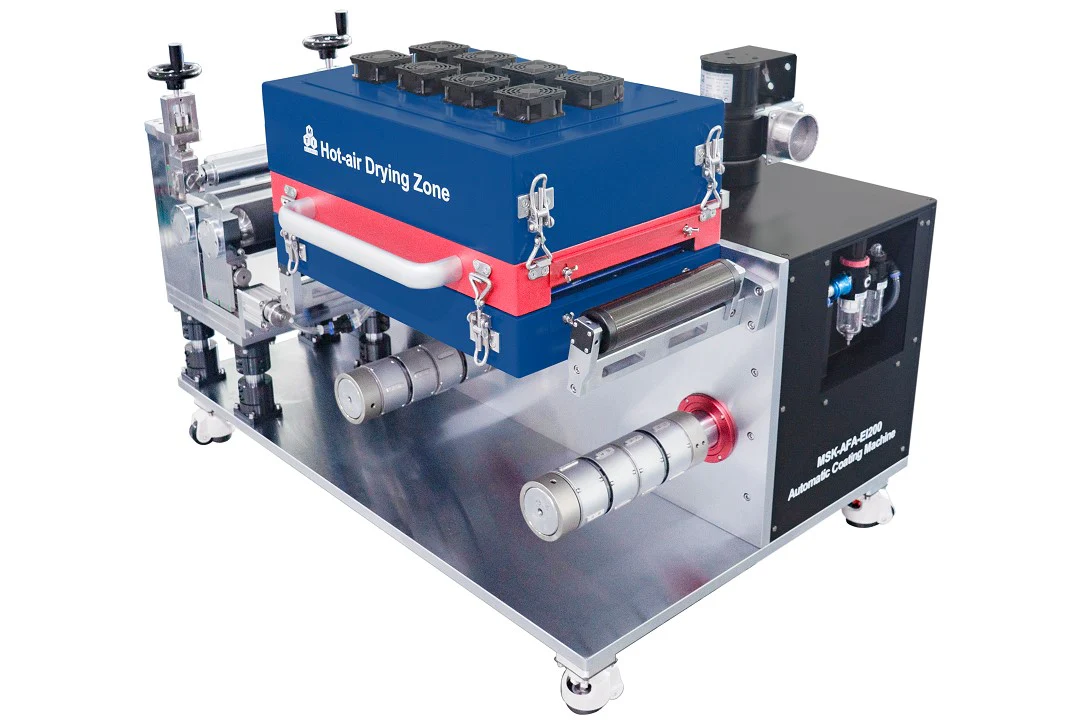

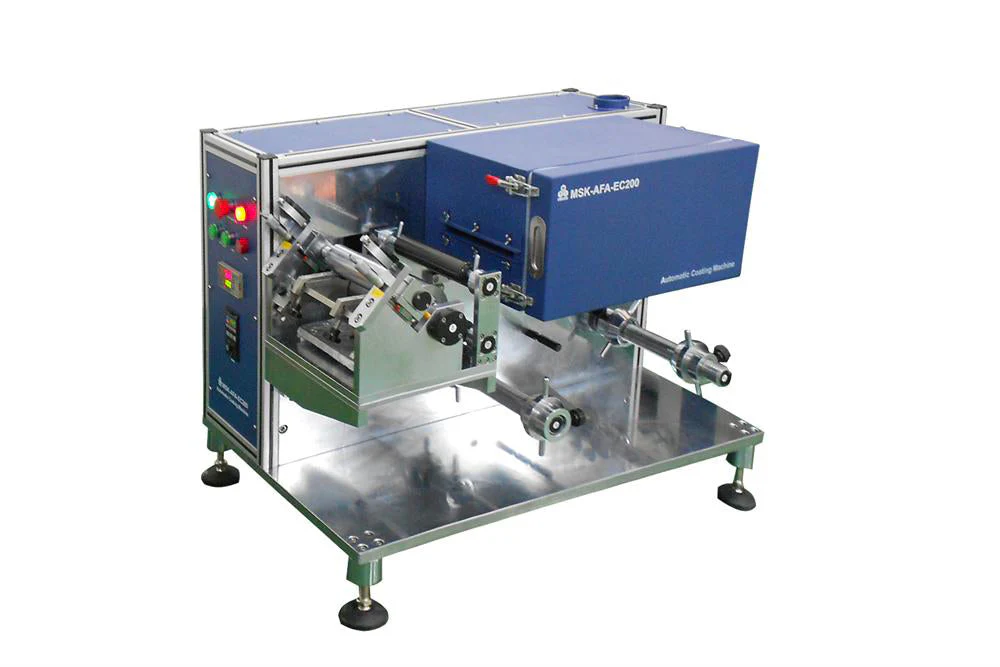

(2) Reverse Comma Blade (Transforming), MSK-AFA-EI200



Coating Width

• 160 mm Maximum (roller width is 200 mm and a maximum substrate width of 180 mm is acceptable)

Coating thickness

• Reverse Comma Blade / Doctor Blade Coating: 30~200μm, depending on different slurry viscosity
• Slot Die Coating: 5 - 200 micron, which is decided by slurry viscosity, feeding speed, and the gap between slot die and the substrate. it is made of stainless steel (SUS630) for coating thickness from 5μm to 300μm. Various shims can realize the coating width.
• Micro-Gravure Coating: 1~50 um (dried film)
• The precise digital thickness gauge (EQ-DTG) can be used to measure the electrode sheet thickness. It is an optional item and should be purchased at an extra cost.
•

Coating Speed

• 0 - 200 mm/minute (actually the maximum mechanical speed of the motor is 1 m/min), the coating speed is normally limited by the drying efficiency.

Heating

• Heating method: Forced convection hot air (IR + UV heating is available upon request)
• Convection chamber: 500 mm length
• Max. Drying Temperature: 130°C
• Temperature Accuracy: ±1°C
• Temperature uniformity: ±3-5°C
• Customized design of dual heating chambers is also available



Reeling/Unreeling

• Reeling/Unreeling shaft: 75mm (ID), which is a mechanical expanding shaft
• Reeling/Unreeling Roller: 200mm OD

Max. Coating Length

• Depending on the coating and substrate thickness.
• Reverse Comma Blade / Doctor Blade Coating: 10um thick foil with 100um coating can get 500 meters of electrode length coated per run
• Slot Die Coating: 30 mm width and 0.2 mm thickness, the coating length can reach 15 meters for a 100 ml pump
• Micro-Gravure Coating: 2~3um ( dried film )

Slurry Feeding (Optional)

• • As for doctor blade, reverse comma blade, and microgravure, a peristaltic pump of MSK-155 with 2L volume can be considered:


  • As for the slot die, syringe pump of MSK-151-L500 and the screw pump of MSK-156 can be considered for continuous and intermittent coating, respectively:

Compliance

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.

• Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting
• Customers are welcome to visit our facility to receive technical training before shipping equipment (Please schedule an appointment with us in advance)
• On-site Training is available for customers within the US only (Expenses will be covered by the customers)

• The atmosphere plasma cleaning add-on for the substrate is available upon request. Such a surface treatment will activate and increase the energy of the substrate surface and thus enables a better adhesion & bonding to the coating materials. Please click pic.1 below for more details.
• You may use the Precision Peristaltic Slurry Feeding Pump for continuous slurry delivery during the roll-to-roll coating process. ( Click Pic.2 & Pic. 3 in below to order )
• You may order Dual-Filtration System for NMP Vapor (Pic. 4) and connect it to the coating system to keep the environment healthy.
• You may order a Magnetic De-ironing Filtration system (Pic. 5) for optimizing the slurry condition

Pic.1       Pic.2     Pic.3

Pic.4      Pic.5
